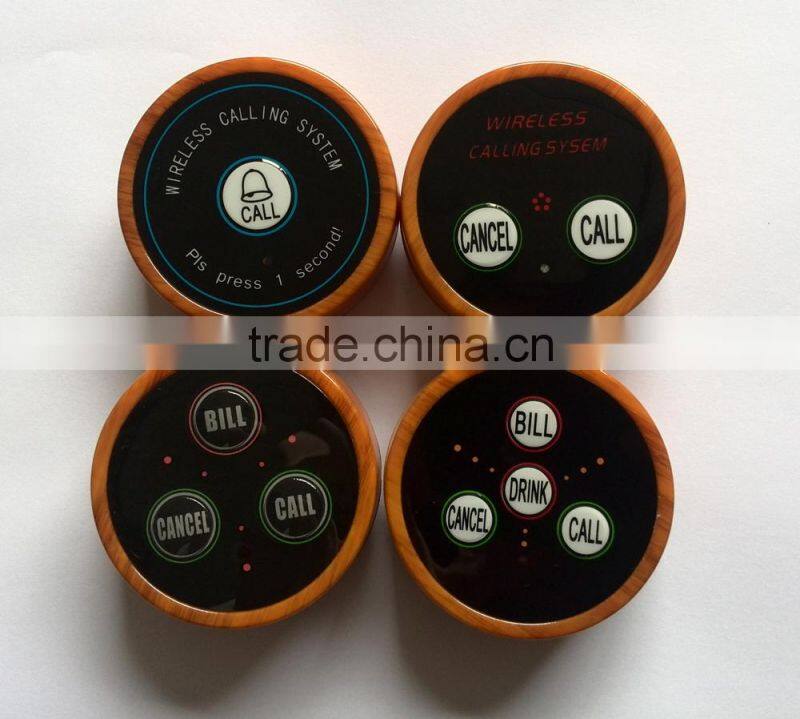

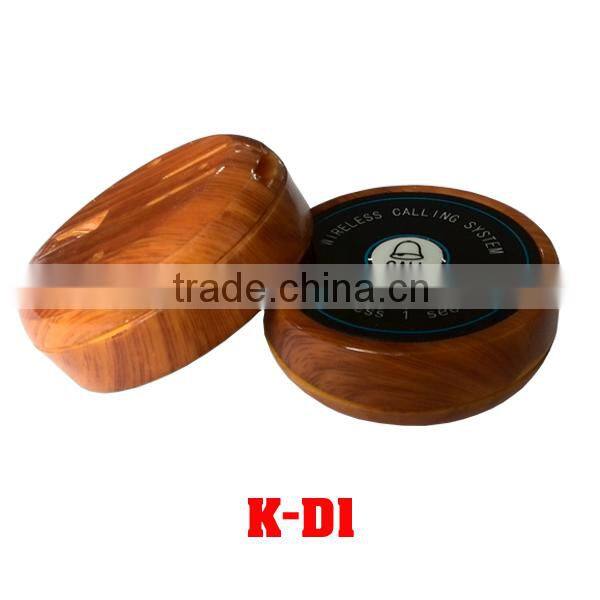

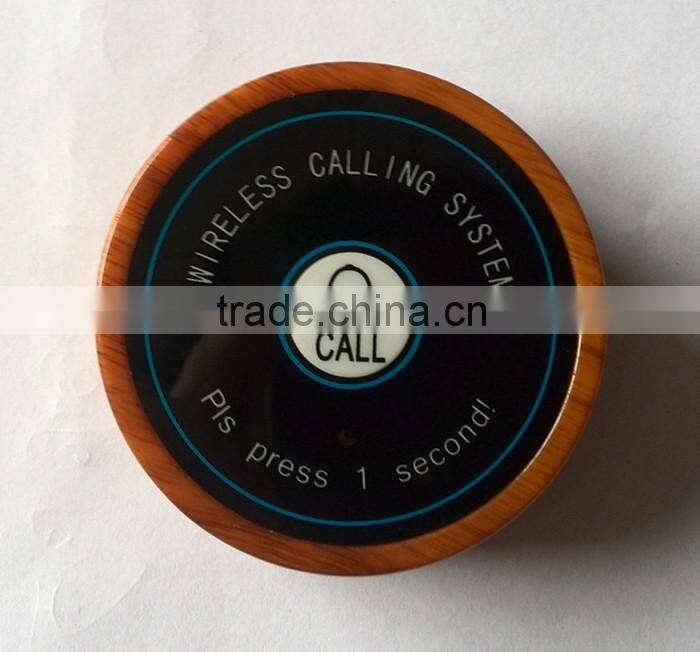

Restaurant Waterproof Waiter Buzzer ,Table Call Button ,Guest Paging System

Each unit queue ticket management system in one standard

     Restaurant Waterproof Waiter Buzzer ,Table Call Button ,Guest Paging System

 Application:

When customer need order food press the button on the table. The table No. will show on the screen of K-300PLUS(the watch display receiver) .Then waiter will know who's calling. Then he go to this table and write down what’s they need. Waiter will take order to kitchen .When order is ready; kitchen(chef) will put number from K-999 device .Then order No. will show on the screen of K-300PLUS. Then waiter will know which’s table’s food is ready and go to pick up the food and take it to guest.

Specification of Table Call Button Display Receiver K-302:

1 With high strength aluminum alloy shell,durable in use
2 Use digital code technology and the function is steady and reliable
3 Show 2-digit number
4 It can work with 99pcs 1-key or 3-key button in max
5 It can save 20 calling info in turn,and apply in basic service places

Technical parameters:

Working voltage: DC12V~18V
Working current: <20mA
Working Frequency: 433.92mhz
Dimension: 220*120*40mm

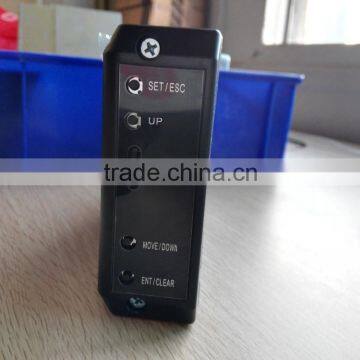

Specification of Table Call Button Transmitter Keypad K-999

1. With high strength ABS material cover

2. Using digital code technology and the function is steady and reliable

3. It can call 999 persons

4. With power on/off function

5. With Clear and Next function

6. Can work with K-236, K-300plus, K-302, K-402, K-402NR, K-2000, K-800, K-4-C, K-4-D, K-10 receiver

7. Technical parameters:

Signal Range: >500m in open are

Working voltage: DC12V

Working current: <20mA

Working Frequency: 433.92MHz

Dimension:160*118*60mm

Each Package include:

1x transmitter keyboard K-999

1x power plug

1x USB cable

FAQ

Applications

Waiter Caller System can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?

1. Wireless receiver, installed on the count

2. Call button, installed on each table

3. Signal repeater (optional), enhance the signal

4.Acrylic Menu Holder Bord(optional)

How does the system works?

1. After your customer gets seated the waiter informs them that when they require service, all they need to do is press the button sitting on their table.

2. When the customer presses the call button on their table, their table number will appear on the receiver with ringing. Waiters then head over to the table to take the order of the customer promptly and quickly.

If you are interested in Table Call Button , please contact me anytime, I will reply to you in 24 hours. Thank you.
