Electronic Waiter Caller Service Calling of Watch Pager and Call Service Buzzer

Each unit queue ticket management system in one standard

Electronic Waiter Caller Service Calling of Watch Pager and Call Service Buzzer

Application:
When customer need order food press the button on the table. The table No. will show on the screen of K-300PLUS(the watch display receiver) .Then waiter will know who's calling. Then he go to this table and write down what’s they need. Waiter will take order to kitchen .When order is ready; kitchen(chef) will put number from K-999 device .Then order No. will show on the screen of K-300PLUS. Then waiter will know which’s table’s food is ready and go to pick up the food and take it to guest.

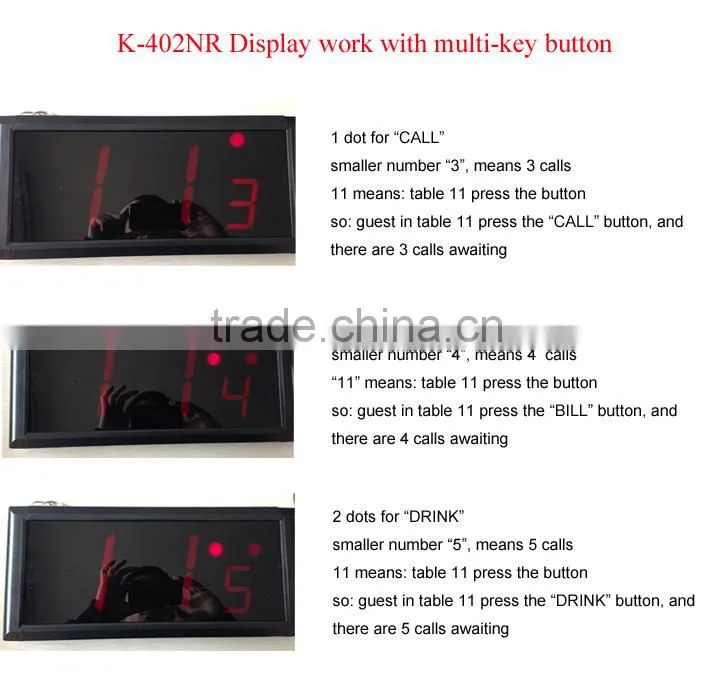

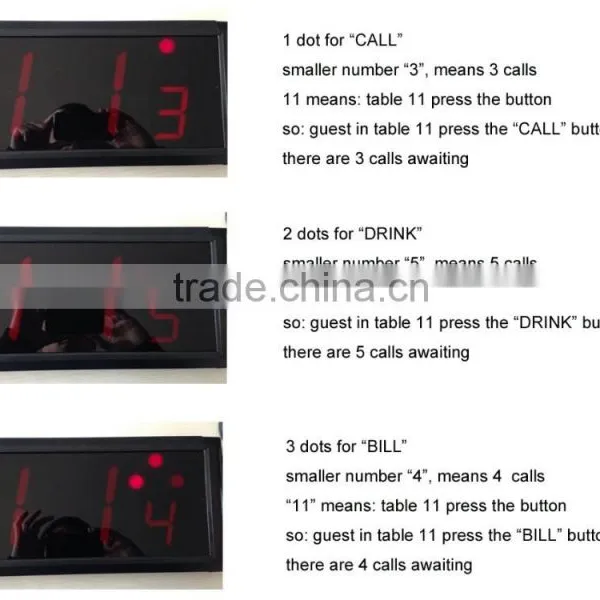

Specification of Electronic Waiter Caller display receiver K-402NR:

1. With high strength aluminum alloy shell, durable in use
2. Use digital code technology and the function is steady and reliable
3. Show 2-digit number.
4. Can show different service type by decimal point
5. It can work with 99pcs 1-key or multi-key call buttons in max
6. Can show how many next coming calling.
7. It can save 30 calling info in turn, and apply in basic service places.
8. Improve service level wireless waiter call system

Technical parameters:

Working voltage: DC12V~18V
Working current: <20mA
Working Frequency: 433.92mhz
Dimension: 365*158*40mm

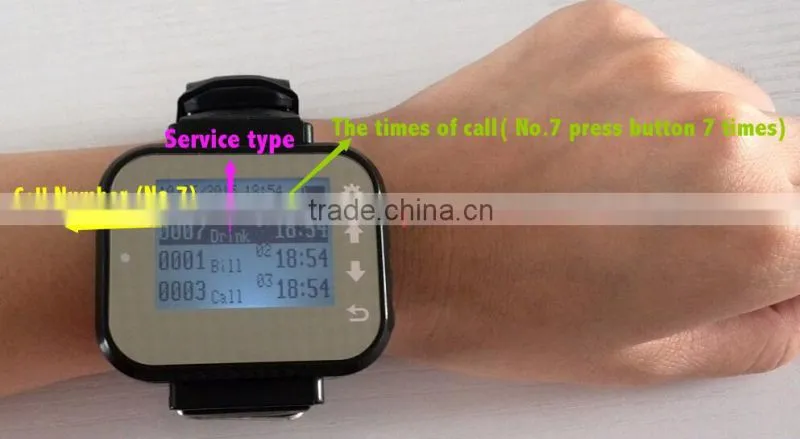

Specification of Electronic Waiter Caller Watch Pagers K-300plus-black

1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3. Show 4-digit number from 0001-9999 and first letter can be A-Z
4. Can indicate different service type via words or letter.(call;bill;drink; dessert; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6. Can store 50 calls and track the history calls up and down
7. Shows current time when stand-by
8. 3 reminder ways:sound promt and vibration or both
9. Battery is rechargeable
10. Dimension:50*41*16mm
11.two display mode:live view and queue view
“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.
“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.

12: Color: Black; Red; Green

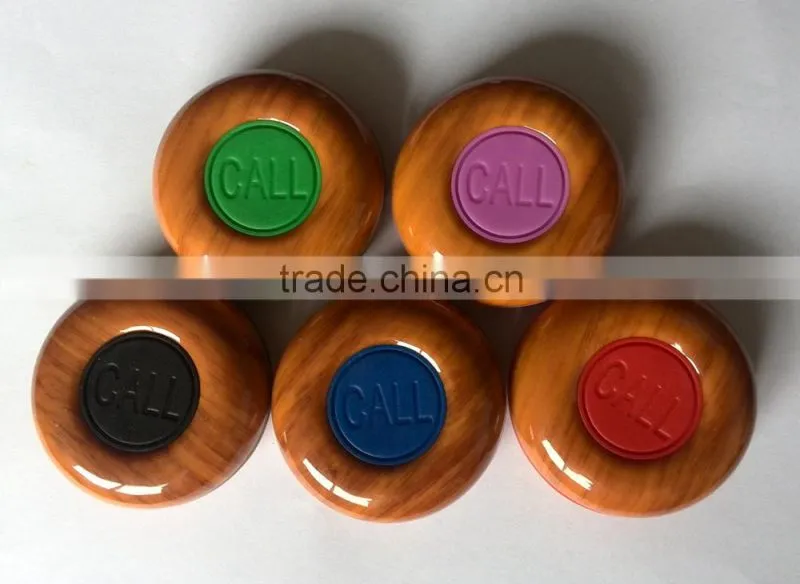

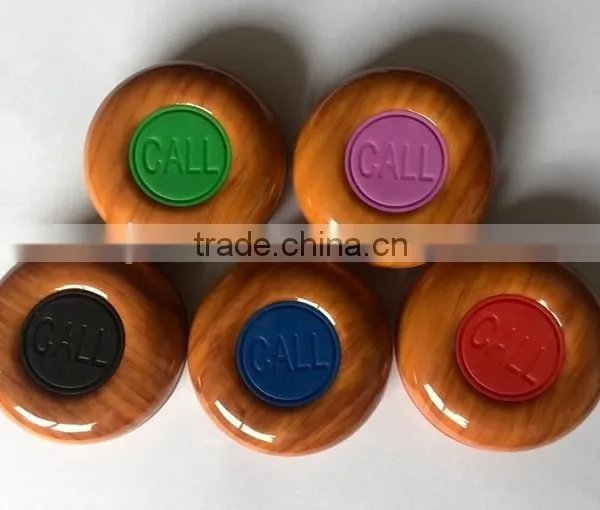

Specification of Electronic Waiter Caller Buzzer K-O1plus

1. Water-proof

2. Work with our receiver to combined the wireless calling system

3. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.

4. Single-key: Call

5. Material: PC

6. Color:White;Blue;Black;Yellow; Red.

Technical Parameter:

Working voltage: DC12V

Working current: ≤35mA

Use Frequency:  433.92MHz

Transmitted Power: ≤20mW

Transmitted Distance>300m in open area

Dimension : 60*60*22mm

Any language any LOGO acceptable

Specification of Electronic Waiter Caller Transmitter Keypad K-999

1. With high strength ABS material cover

2. Using digital code technology and the function is steady and reliable

3. It can call 999 persons

4. With power on/off function

5. With Clear and Next function

6. Can work with K-236, K-300plus, K-302, K-402, K-402NR, K-2000, K-800, K-4-C, K-4-D, K-10 receiver

7. Technical parameters:

Signal Range: >500m in open are

Working voltage: DC12V

Working current: <20mA

Working Frequency: 433.92MHz

Dimension:160*118*60mm

Each Package include:

1x transmitter keyboard K-999

1x power plug

1x USB cable

FAQ

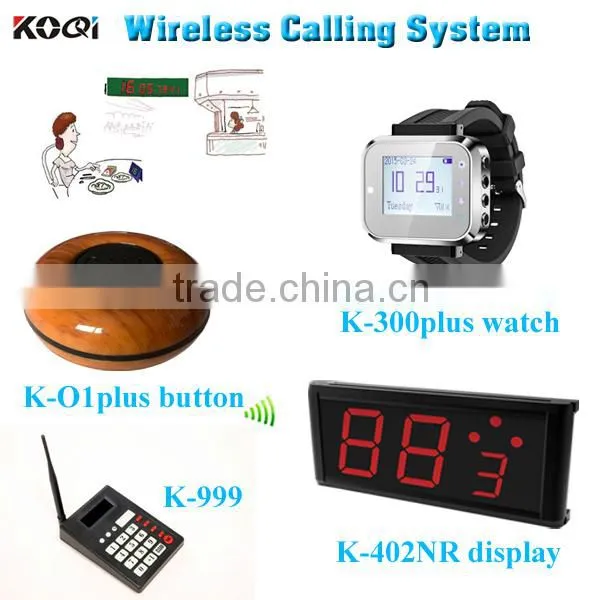

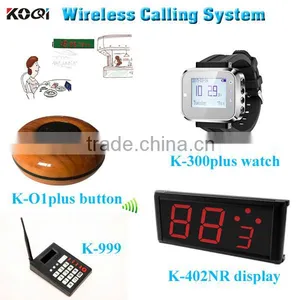

Applications

Waiter Caller System can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?

1. Wireless receiver, installed on the count

2. Call button, installed on each table

3. Signal repeater (optional), enhance the signal

4.Acrylic Menu Holder Bord(optional)

How does the system works?

1. After your customer gets seated the waiter informs them that when they require service, all they need to do is press the button sitting on their table.

2. When the customer presses the call button on their table, their table number will appear on the receiver with ringing. Waiters then head over to the table to take the order of the customer promptly and quickly.

If you are interested in Electronic Waiter Caller , please contact me anytime, I will reply to you in 24 hours. Thank you.
