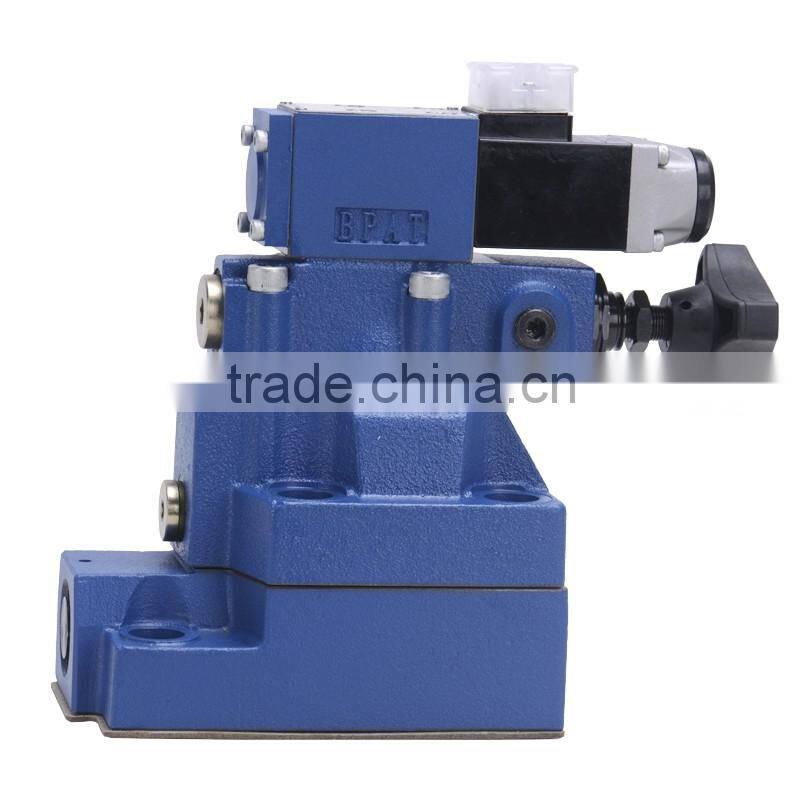

Help CenterPilot Operated Sub-plate Mounting Pressure Shut-off Valve
Related Products
-
Sandwich Plate Direct Operated Sub-plate Mounting Pressure Reducing ValveUS$ 20 - 50MOQ: 50 Sets -
Pilot Operated Sub-plate Mounting Pressure Reducing ValveUS$ 20 - 50MOQ: 50 Sets
-
Direct Operated Pressure Reducing ValveUS$ 20 - 50MOQ: 50 Sets
-
Sandwich Plate Pilot Operated Pressure Relief ValveUS$ 20 - 50MOQ: 50 Sets
-
Pressure Relief ValveUS$ 20 - 50MOQ: 50 Sets
DA-W-C-10-A-1-L5X-5-10-Y-6E-G24-N-Z4-V
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Order Form of hydraulic valve:
1. No code: without directional valve; W: with directional valve
2. No code: Pilot operated valve; C: pilot valve without main spool assembly( no nominal size mark), with main spool assembly(30 nominal size)
3. Nominal size:10,20,30
4. (only for DAW) A: Normally closed( load when break away, unload when electrified); B: normal Open( contrary to before)
5. 1: Rotary knob; 2: Adjustable bolt with protective cap; 3: Lockable rotary knob with scale 7: Roatry knob with scale
6. Series L50 to L59 ( L50 to L59 series: unchanged installation and connection dimensions)
7: Pressure adjustable: 5: 0~5Mpa,10: 5~10Mpa,20: 10~20Mpa,31.5: 20~31.5Mpa,
8.switching pressure differential(P→A): 10: in the mid range 10%; 17: in the mid range 17%
9. (only for DAW) no code: Internal pilot oil drain, Y: external pilot oil drain
10. only DAW 6E with high performance directional spool valve.
10.(only for DAW) G24: 24V DC, W220-50: 220V AC, 50Hz, W220R: 220V AC rectification
11. (only for DAW) N: with hand override
12. (only DAW) Z4: Electrical plug without lamp; Z5L: Electrical plug
13. No code:NBR seal, V: FPM seals

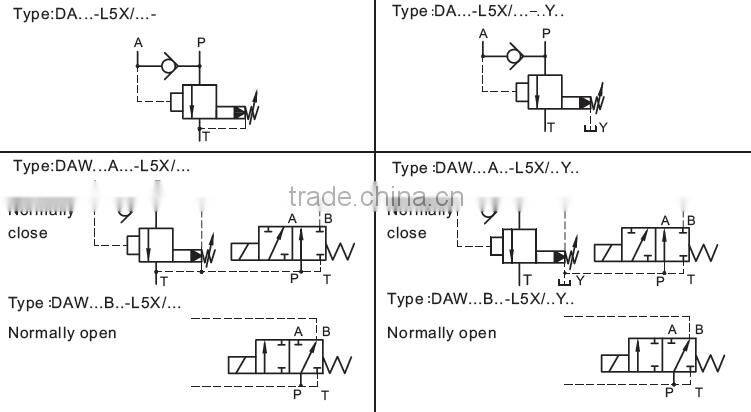

Symbol of ball valve:
Overall Dimension of valve:
Specifications:
1. Series Code: DR...L5X series sandwish plate pressure relief valve
2. Valve Body Material: QT500
3. Operating Temperature: 1. -30~+80°C, 2. -20~+80°C
4. Other Airproof:No code-NBR, V-FPM
5. Medium: Mineral oil suitable or Phosphate ester
6.Viscosity range(mm2/s):10 to 800
7. Design Number: To Be Decided By The Manufacturer

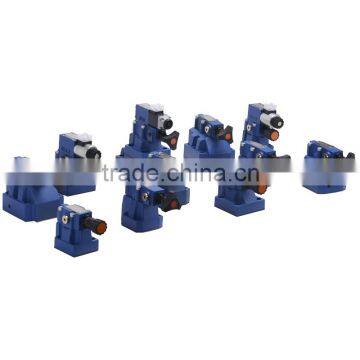

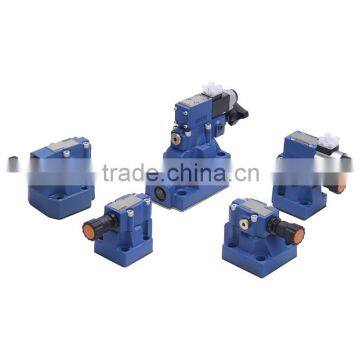

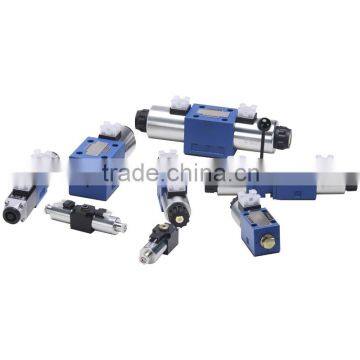

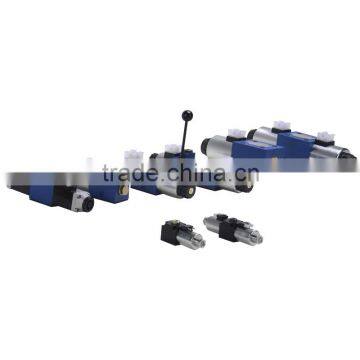

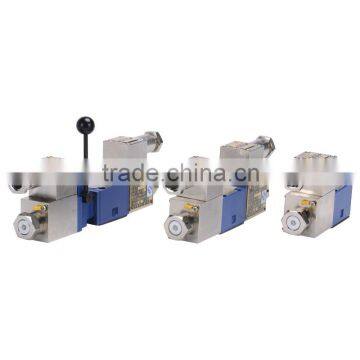

More products for your to choose:
HRPC mainly export to Northern Euroe, include Germany, Italy, Finland, UK, France, Spain, ect
Our products reputed of high quality and quick delivery time.
Strength of HRPC high pressure ball valves
1) 13 yesrs Experience
2) Steady production Capacity
3) Competitive Price
4) High standard quality
5) Strict inspections
6) good after-sale service
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
