HRPC company is specialize in Hydraulic Components, our products include high pressure ball valve, water valve, check valve, hydraulic cylinder, solenoid valve, and so on.
HRPC Ball Valve specifications:
1) Type: 2 way, 3 way
2) Structure: full port, L port
3) Size: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 11/4", 11/2", 2"
4) Connection: BSPP, BSPT, NPT, M, SR, LR
5) Joint type:female-male thread, manifold, flange
6) Seal: NBR, FPM
7) Temperature: -25~+100oC, -30~+170oC
8) Material: carbon steel (C45#), stainless steel (SUS316, SUS304, SUS316L)
9) Handle: steel
10) Surface: white-white zinc, yellow-yellow zinc, black-phosphoric polish

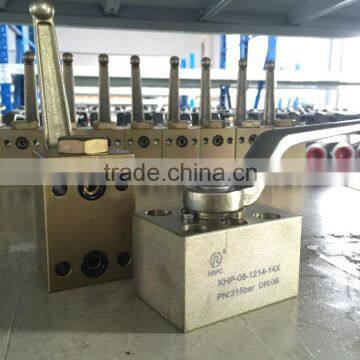

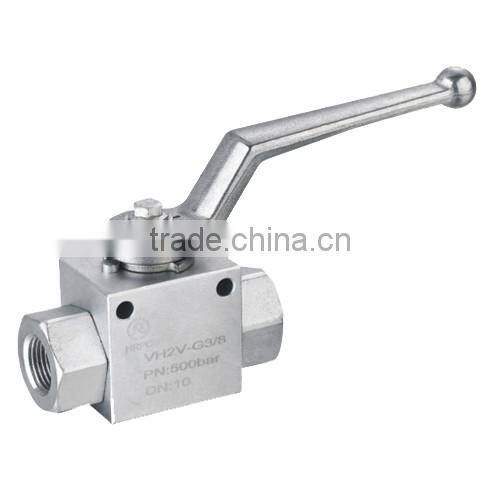

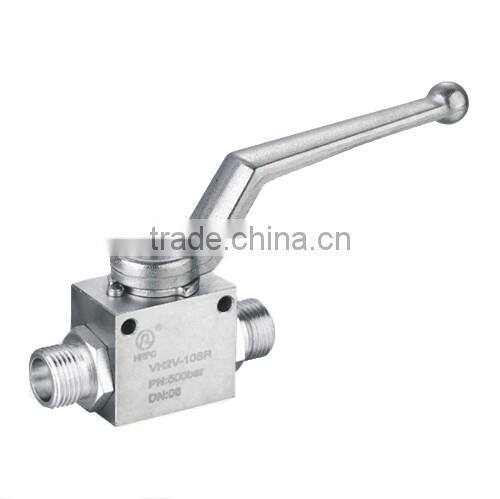

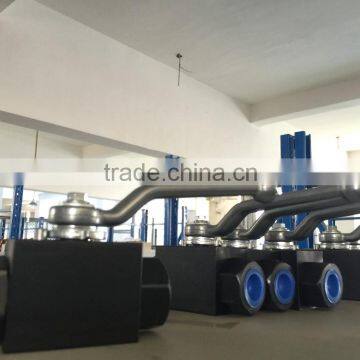

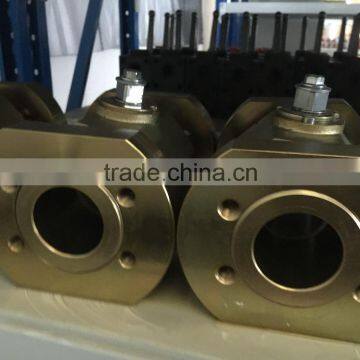

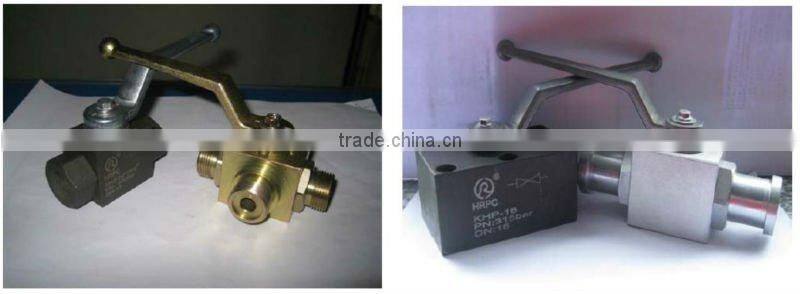

HRPC Ball Valve picture:
Dimensions of HRPC ball valve:
| Connection | Size | Diameter | Pressure |
| BSP/NPT/SAE M/LR/SR | 1/8" | 4mm | 500bar |
| 1/4" | 6mm | 500bar | |
| 3/8" | 10mm | 500bar | |
| 1/2" | 13/16mm | 400bar | |
| 3/4" | 20mm | 315bar | |
| 1" | 25mm | 315bar | |
| 11/4" | 32mm | 315bar | |
| 11/2" | 40mm | 315bar | |
| 2" | 50mm | 315bar |
Symbol:
Overall Dimension:
PORT:
Material sheet:
Function:
Specifications:
HYDRAULIC BALL VALVE MODEL:
HRPC hydraulic ball valves with models of KHB, KHB3K, VH2V, VH3V, BKH, KHP, YJZQ, QJH, Q11F...
BALL VALVE SIZE:
Connector size from 1/8 inch to 2 inch,
Diameter from 4mm to 50mm,
Pressure from 1.6MPa to 50MPa.
HYDRAULIC BALL VALVE CONNECTORS:
Female thread BSP, NPT, PT (1/8"~2")
Male thread M, LR, SR (M16*1.5~M60*2)
HYDRAULIC BALL VALVE WORKING TEMPERATURE:
1.NBR Airproof -25oC~+100oC
2.FPM Airproof -30oC~+200oC
HYDRAULIC BALL VALVE MATERIALS:
1.Carbon Steel
2.Stainless Steel (SS316, SS304)
3. Brass
HYDRAULIC BALL VALVE SURFACE DISPOSAL:
1.Blank-Phosphoric polish (black color)
2.G-electroplated yellow zinc (yellow color)
3.G-electroplated yellow zinc (white color)
Dimension Sheet:
| SIZE | PN (bar) | DN (mm) |
| 1/8" | 500 | 4 |
| 1/4" | 500 | 6 |
| 3/8" | 500 | 10 |
| 1/2" | 400 | 13 |
| 400 | 16 | |
| 3/4" | 315 | 20 |
| 1" | 315 | 25 |
| 1 1/4" | 315 | 32 |
| 1 1/2" | 315 | 40 |
| 2" | 315 | 50 |
More products for your to choose:
HRPC mainly export to Northern Euroe, include Germany, Italy, Finland, UK, France, Spain, ect
Our products reputed of high quality and quick delivery time.
Strength of HRPC high pressure ball valves
1) 13 years experience
2) Steady production capacity
3) Competitive Price
4) High standard quality
5) Strict inspections
6) good after-sale service
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
