Water Proof Stainless Steel Defrost Heating Element for Unit Cooler

Water Proof Stainless Steel Defrost Heating Element for Unit Cooler thumbnail-1
Water Proof Stainless Steel Defrost Heating Element for Unit Cooler photo-1
US$ 1 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Beno
Model Number:
Defrost
Contact Supplier Request Quote Chat Now
Shengzhou Beno Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Beno
Model Number Defrost
Voltage 110v~440v
Power(W) 0.2~3.5kw
Certification CE
Type Other, Heating Tube

Specifications

1.Defrost heating element is usd in unit cooler,refrigerator and so on
2.Good water proof
3.Good corrosion prevention

Detailed Information



Dimeter

of tube

6.5mm



8.0mm



8.5mm



9.0mm



10mm

11mm

12mm

14mm

16mm

Material

AISI304*

AISI321*

AISI316

AISI310S

INCOLOY840

Length of tube

From 200mm to 6500mm, The length will be manufacture it according to custom’s require

Length of wire

From 200mm to 2000mm, The length will be manufacture it according to custom’s require

Color

Color of tube is yellowish*or Dark-green or Black



Application:

Defrost Heating Element is applying to Refrigerator, Freezer ,Evaporator ,Unit cooler ,condenser and So on,

Defrost Heaters are produced using Incoloy840, 800, stainless steel 304, 321, 310S, aluminum sheath materials

and also there is huge variety of selection of termination styles available.Defrost heater are custom designed in a various

shapes to address client’s requirements.



Feature



 1.We offer standard as well as customized models



2.We offer different tube diameters like 6.5 mm, 8 mm,  8.5mm,9mm,10.6mm,11mm& 12mm, 14mm,16mm and so on.



3.We offer different sheath materials. It can be availed in different materials like Incoloy 840, SS 304, SS 321, SS 316,

 Aluminum



4. Ambient temperature: -60°C ~ +125°C



5. High- voltage in Test : 16,00V/ 5S



 6. Firmness of connection end: ≥50N



7. Protective oxide coated element wire for long-term heater life



8. High temperature molded Neoprene or silicone end caps



9. Can be manufactured to proper length



Technology data:


1.HI-POT TEST: 1600V/S on normal temperature


2.Insulation resistance:500MΩ


3.Leakage current to be 0.75ma max While energized at rated voltage


4.Power tolerance:+5%,-10%


5.Voltage:12V-440V



6.Diameter range:4.5mm to 20mm


7.Heating resistance wire:0Cr25Al5,Cr20Ni80 or as custom'es requirement


8.Air tubular heater wattage : ≥ 1w-5w/cm2

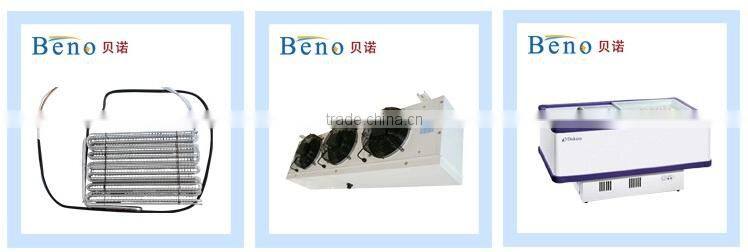

 Picture for used in Evaporator, Refrigerator, Freezer ,Unit cooler



We can send the sample to you for free. you can test our qanlity!!
