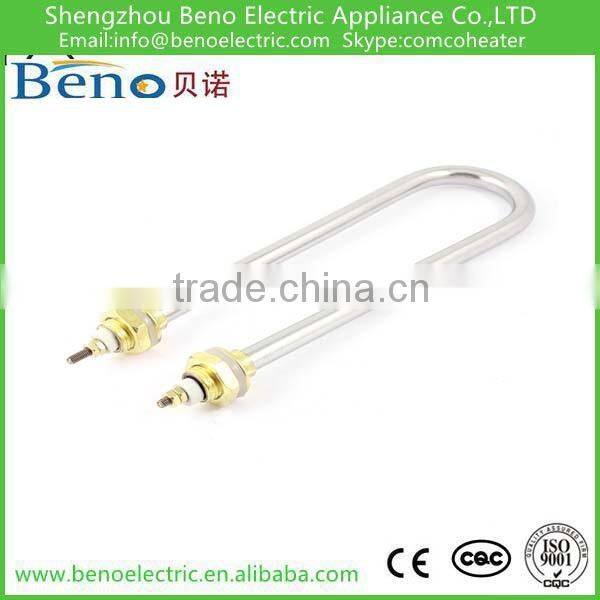

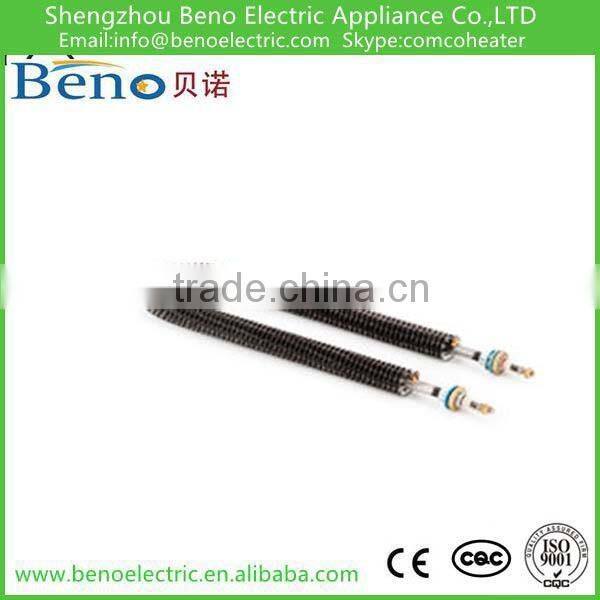

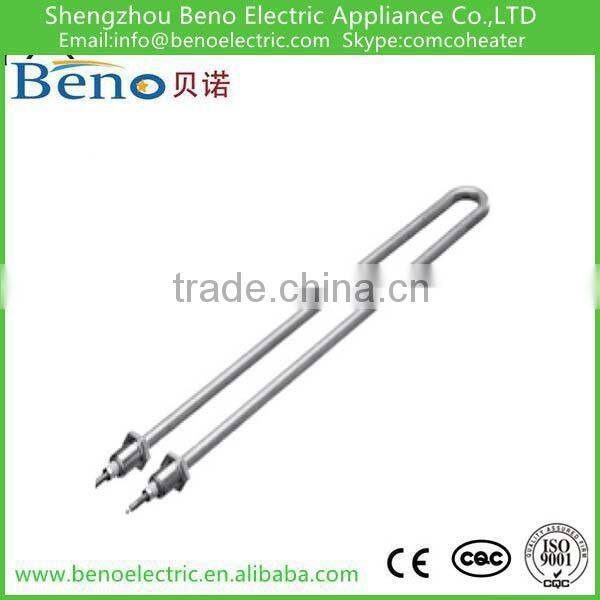

Customized Voltage and Power U Type Heating Element
Shengzhou Beno Electric Appliance Company is a professional manufacturer,which is specialized in electric heating element, water heating element, home appliance electric heating elements and silicon rubber heating pad, heating plate and defrost heating element.The products are used in refrigerator,freezer and air-conditioner,electric heater,industrial heater and defrost heater.
The electric heating elements have advantage of long life ,heating fast, safety,energy conservation and environment protection. It is possible to customize various type heating element production what you like in your location marketing.
Unique Feature:
1. Long life
2. Rapid Heating
3. Safety, environmental protection
4. Easy installation.
5. Low cost with long service life and high efficiency.
6. It is customizable include shape,surface,specification etc
Voltage Range: 110V - 480V
Wattage: 100w - 15KW
If possible,pls send us the production blueprint or pictures
Specification parameter
Insulation resistance |
≥1000MΩ(cold condition) |
Leak current |
≤0.5mA |
Material |
SUS316L SS304 |
Voltage/wattage |
110V-380V/100w-15kw |
Diameter |
d>6.5mm |
Resistance powder |
Magnesium oxide |
Faston terminal |
Nickel plated iron |
Pipes |
Stainless steel |
Thermal fuse |
Iron chromium |
Application |
Tube heater and household appliances |
Products type: electric heating wire(band), stainless steel band heater and PTC electric heating element.
Electric heating band
Apply Cr20Ni80 wire to be winded on glass fiber, epiboly with silicone rubber as insulation heat conduct layer, with its end using heat resistance silicone rubber wire connection electric heat element.
Electric heating wire
Cr20Ni80 wire to be winded on a glass fiber to be covered with silicone rubber used as heat conductor, to be wrapped with stainless steel woven sheath, ends of heating wire, lead wire to be connected with.
Technical data
Insulation resistance: after putting the whole tube in water for 24 hours, insulation resistance≥1000Mohm
Dielectric test of AC1800V/1Min, no flashover happened
leakage current in working temperature≤0.1mA
power deviation:±7% at rated voltage
own-lead intension: after the test of 30N pull, the down-lead part does not be moved or ruptured.
REMARK: The products will be 100-percent inspection when the product is finished.
Pls advise below details when inquire
(1). Type of Heater
(2). Wattage and Voltage
(3). Dimension of the heater Belt
(4). Drawing required for special configuration
(5). Working environment
As a trustworthy manufacturer, we can assure you for:
(1)Consistent & Uniform quality of products throughout the Merchandise.
(2)Shipments well within the time agreed between us.
(3) Most competitive prices and assuring our products quality.
Our Belief:
(1)Beno company is a professional Chinese heating element manufacture.
(2)Our focus is on quality control, making excellent before and after sales service and enlarging product series to meet clients' requirements.
(3)Welcome to contact with us ,we are always free to answer your questions.
(4)We sincerely hope to set up good business relationships with you to create a bright future!
Remark:
We can send the sample for free. and you can test our quality.
