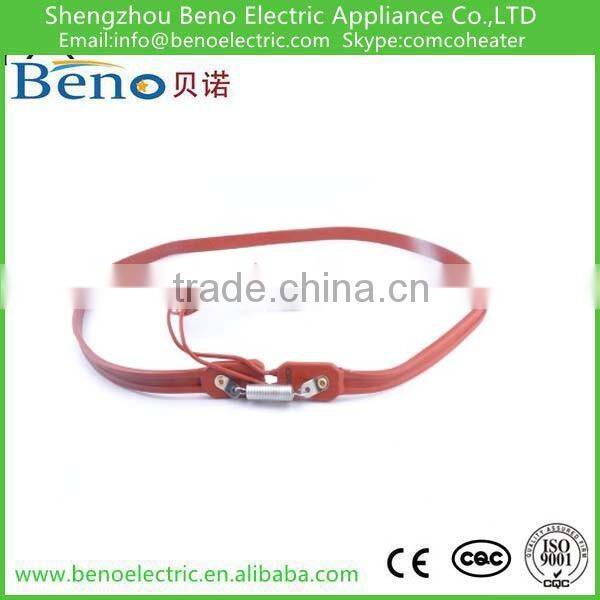

Home Brew Heating Belt Heat Pad for Wine Beer Spirit Pail 110V 30W US Plug
Shengzhou Beno Electric Appliance Company is a professional manufacturer,which is specialized in electric heating element, water heating element, home appliance electric heating elements and silicon rubber heating pad, heating plate.The products are used in refrigerator,freezer and air-conditioner,electric heater,industrial heater
The electric heating elements have advantage of long life ,heating fast, safety,energy conservation and environment protection. It is possible to customize various type heating element production what you like in your location marketing.
Product description
Working environment temperature of designed air-conditioner compressor is about 4° C While surround evironment temperature is bellow zero air conditioner is hard to make enough heat to meet the requirement.
In situation, a subsidiary electric heater is necessarily used at end of central airconditioner to make the supplementary heat
Our subsidiary electric heater series are the most suitable and ideal heating source designed and manufacture for this appliance, moreover, our subsidiary heater series do not need any other subsidiary equipment. They have such many obvious advantage as being easy in installing, safe in operating and maintenance.
Products type: electric heating wire(band), stainless steel band heater and PTC electric heating element.
Applications
Applied insertion to rated voltage bellow 450v,50-60HZ, related humidity≤90%. Diffuse heat after conducting at electricity in an environment temperature of -30°C-+50°C.It is generally used in central air conditioner compressor. It is also applied in cold area, and oil tube.
Electric heating band
Apply Cr20Ni80 wire to be winded on glass fiber, epiboly with silicone rubber as insulation heat conduct layer, with its end using heat resistance silicone rubber wire connection electric heat element.
Electric heating wire
Cr20Ni80 wire to be winded on a glass fiber to be covered with silicone rubber used as heat conductor, to be wrapped with stainless steel woven sheath, ends of heating wire, lead wire to be connected with.
Technical data
Insulation resistance: after putting the whole tube in water for 24 hours, insulation resistance≥1000Mohm
Dielectric test of AC1800V/1Min, no flashover happened
leakage current in working temperature≤0.1mA
power deviation:±7% at rated voltage
own-lead intension: after the test of 30N pull, the down-lead part does not be moved or ruptured.
REMARK: The products will be 100-percent inspection when the product is finished.
Pls advise below details when inquire
(1). Type of Heater
(2). Wattage and Voltage
(3). Dimension of the heater Belt
(4). Drawing required for special configuration
(5). Working environment
As a trustworthy manufacturer, we can assure you for:
(1)Consistent & Uniform quality of products throughout the Merchandise.
(2)Shipments well within the time agreed between us.
(3) Most competitive prices and assuring our products quality.
Our Belief:
(1)Beno company is a professional Chinese heating element manufacture.
(2)Our focus is on quality control, making excellent before and after sales service and enlarging product series to meet clients' requirements.
(3)Welcome to contact with us ,we are always free to answer your questions.
(4)We sincerely hope to set up good business relationships with you to create a bright future!
Remark:
We can send the sample for free. and you can test our quality.
