100LPM Vacuum Fire-resistance Oil Purification,fire-resistant oil purification
Vacuum Waste Fire-resistant Hydraulic Oil Purification Application
1.For large thermal power unit adjustment system, phosphate ester fire-resistant fuel systems, machinery and equipment of fire-resistant hydraulic oil purification regeneration treatment
2.TYC is multifunctional complex, degassing, vacuum dewatering multistage fine filtration, adsorption and regeneration into one, powerful oil fully, for higher oil-processing requirements of users, select the TYC is a good choice
Our Vacuum Waste Fire-resistant Hydraulic Oil Purification Advantages:
1. Whole machine all tanks and pipes are made of stainless steel, light, beautiful, simple operation
2. By vacuum combined with adsorption principle (precision filter is different from other manufacturers) can effectively remove the acid value of oil in the water.
3. Photoelectric liquid level controls level control, control sensitivity and accuracy, without fuel injection phenomena.
4. Fine filter using anti-excellent fuel filter impurities control effect (can reach NAS5), fully able to meet user requirements.

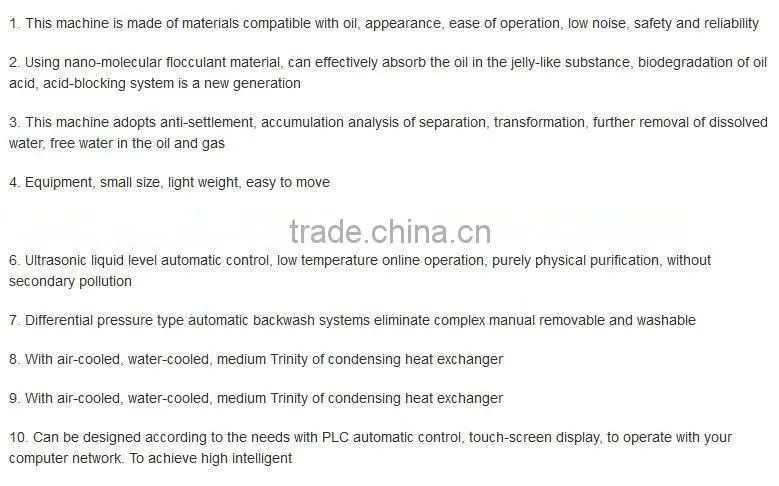

Unique Features Of Our Vacuum Waste Fire-resistant Hydraulic Oil Purification :
Vacuum Waste Fire-resistant Hydraulic Oil Purification Model
Index Item |
Unit |
TYC-20 |
TYC-30 |
TYC-50 |
TYC-100 |
TYC-150 |
TYC-200 |
|||||||
Flow rate |
L/min |
20 |
30 |
50 |
100 |
150 |
200 |
|||||||
Operating vacuum |
Mpa |
-0.06~-0.095 |
||||||||||||
Working Pressure |
Mpa |
≤0.4 |
||||||||||||
Power supply |
380/50 (Three-phase four-wire)or as your request |
|||||||||||||
|
After filter indicator |
Water Content |
ppm |
≤5 |
|||||||||||
Gas Content |
% |
≤0.1 |
||||||||||||
Mechanical Impurities |
% |
No |
||||||||||||
Acid value |
mgKOH/g |
≤0.03 |
||||||||||||
Cleanliness |
NAS |
≤NAS6 |
||||||||||||
Temperature control range |
℃ |
≤70 |
||||||||||||
Noise |
dB |
≤65 |
||||||||||||
Inlet (outlet) caliber |
Mm |
18 |
21 |
27 |
36 |
36 |
56 |
|||||||
Total Power |
KW |
65 |
68 |
100 |
165 |
196 |
50 |
|||||||
Weight |
KG |
250 |
350 |
550 |
750 |
950 |
1150 |
|||||||
Outside dimensions |
mm |
1000*800 *1200 |
1100*850 *1400 |
1100*900 *1400 |
1400*1000 *1500 |
1500*1000 *1600 |
1600*1100 *1700 |
|||||||
Remark |
The above data for reference only. We can make OEM,ODM |
|||||||||||||

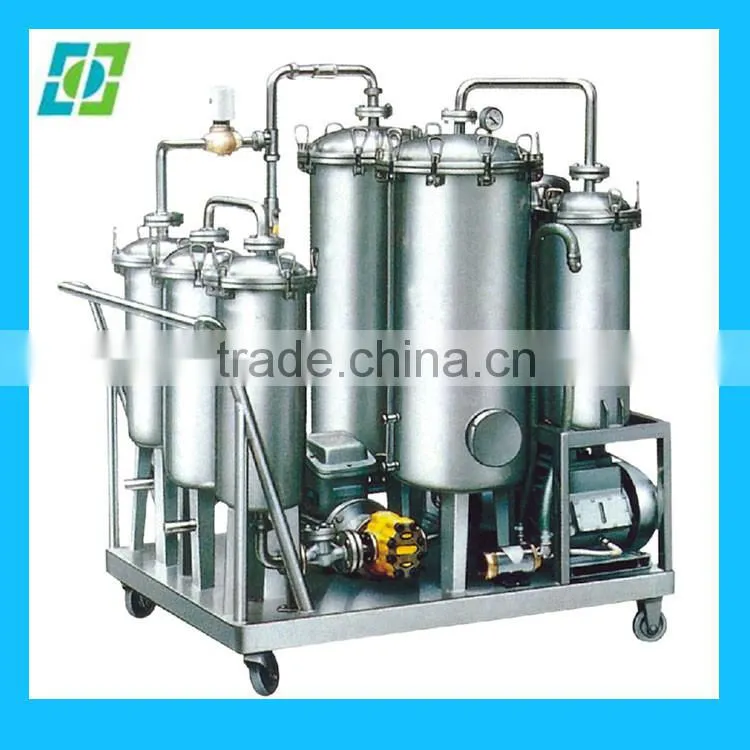

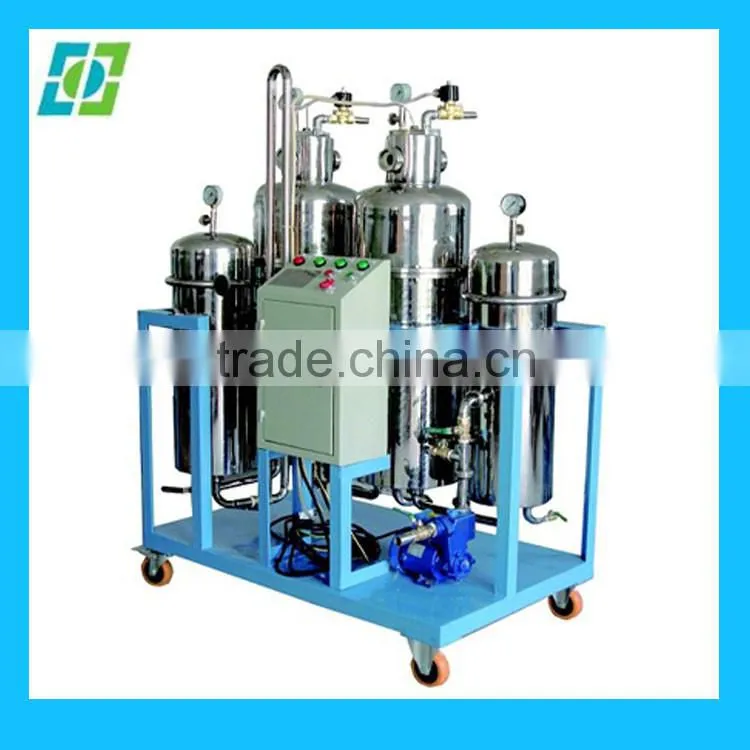

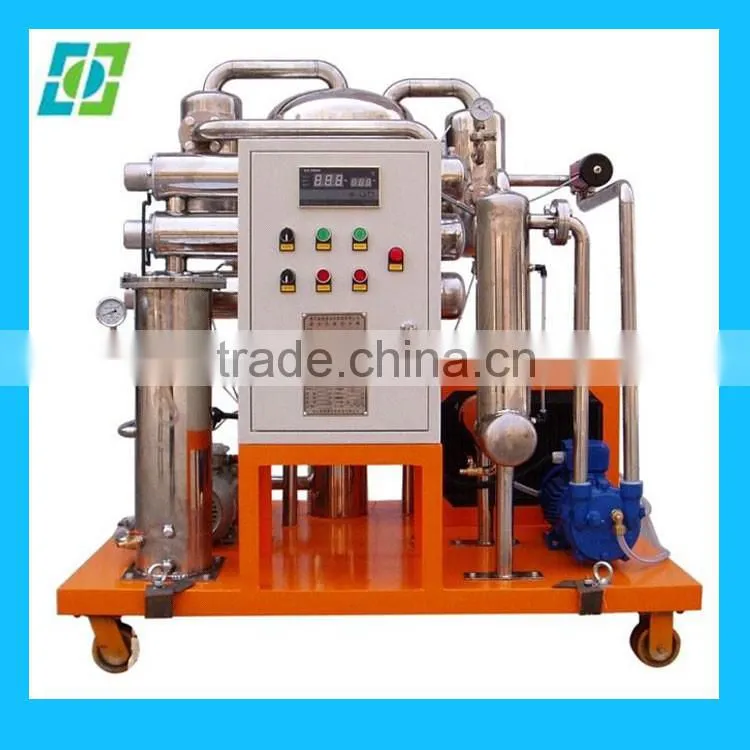

Vacuum Waste Fire-resistant Hydraulic Oil Purification Photo

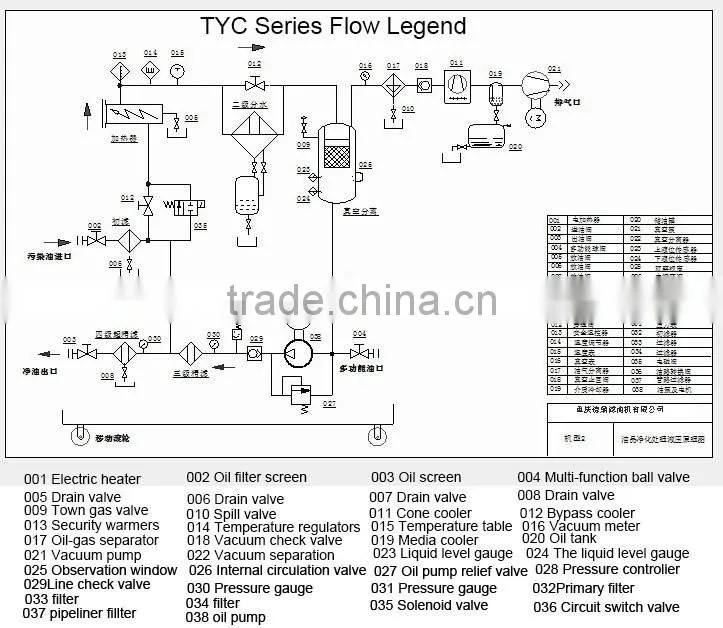

Vacuum Waste Fire-resistant Hydraulic Oil Purification Flow Graph
Oil After Purification
Chongqing Yinqiao De Ding Filter oil machine Co.,Ltd ,is a professional engaged in the modernization of fluid purification processing research and development ,product manufacturing, technical services and equipment sales as one of the high-tech enterprises.
Company as a Chongqing second filter factory ,the 1998 reform ,a wide range of fluid international advanced purification technology .In 2002,company attracted Germany and Britain returned,
Company had development and production more than 100 products with independent intellectual property rights .Products are widely used in electric power ,petroleum ,chemical, metallurgy , mining machinery ,aviation, ship ,railway cement ,paper ,metal processing and others fields , At the same time , saving cost for customer ,reducing energy consumption ,play an important role in reducing pollution.
The company have five unique patent technology ,with high precision ,high stability ,high efficiency ,low energy consumption ,etc .get many successful multinational large projects.
“De Ding oil filter—focus can be experts” slogan was quickly recognized by customers.
1. What is your brand?
Q: Our own brand is “De Ding” but we can do OEM
2. Are you manufactory or Trade Company?
Q: DeDing is a Commerce Company, and we have our own manufactory as well.
3.Can we see the real running machine?
Q:In our factory there are different kinds of running machine. Welcome to visit us.
4.Can you sign contract with us?
Q:Yes, We can sign a contract with you to be more safety.We trust that with us your money will be in safe and your business will be in safe.
QUALITY IS OUR CULTURE

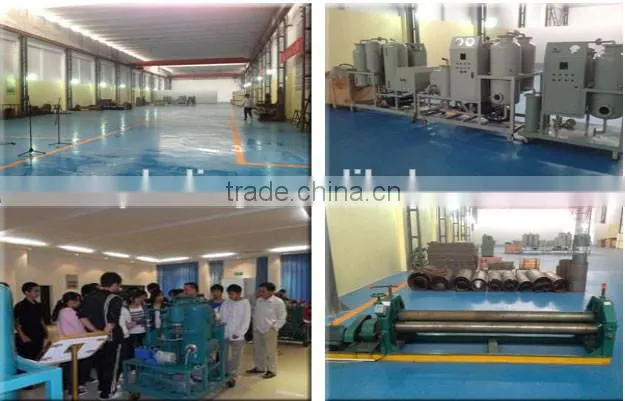

Welcome to our factory on-site inspection
