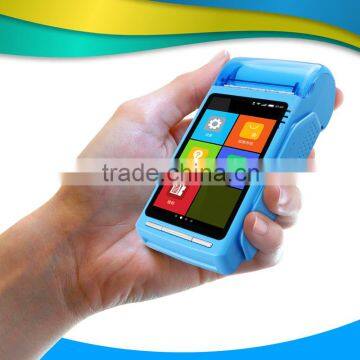

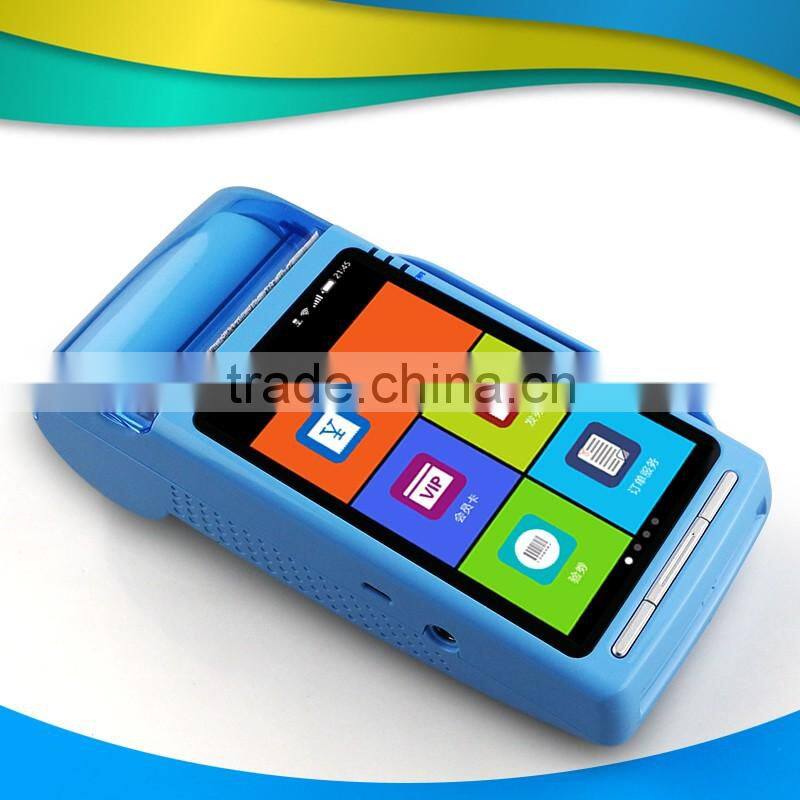

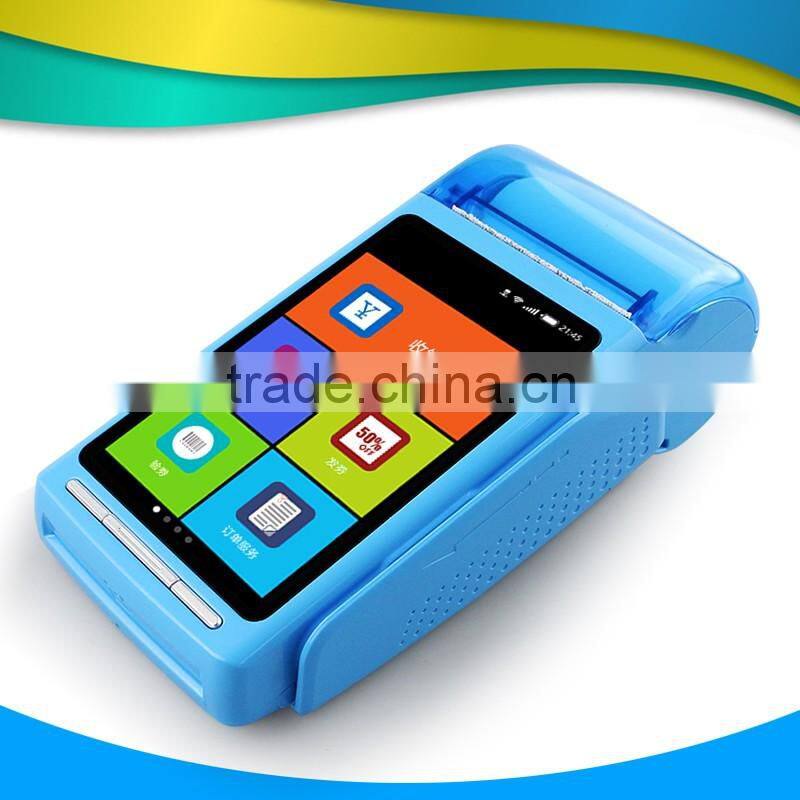

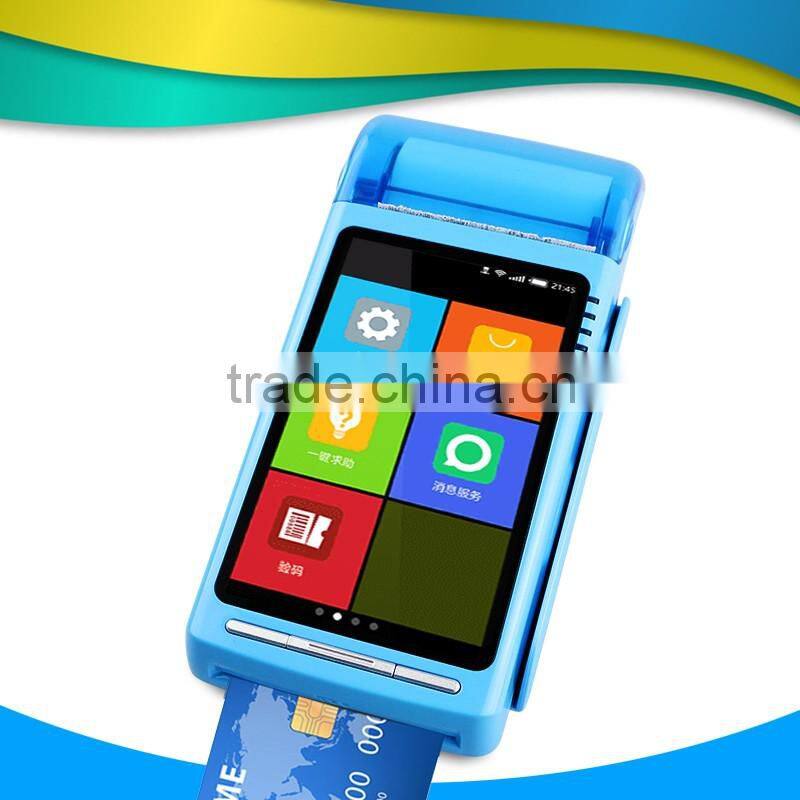

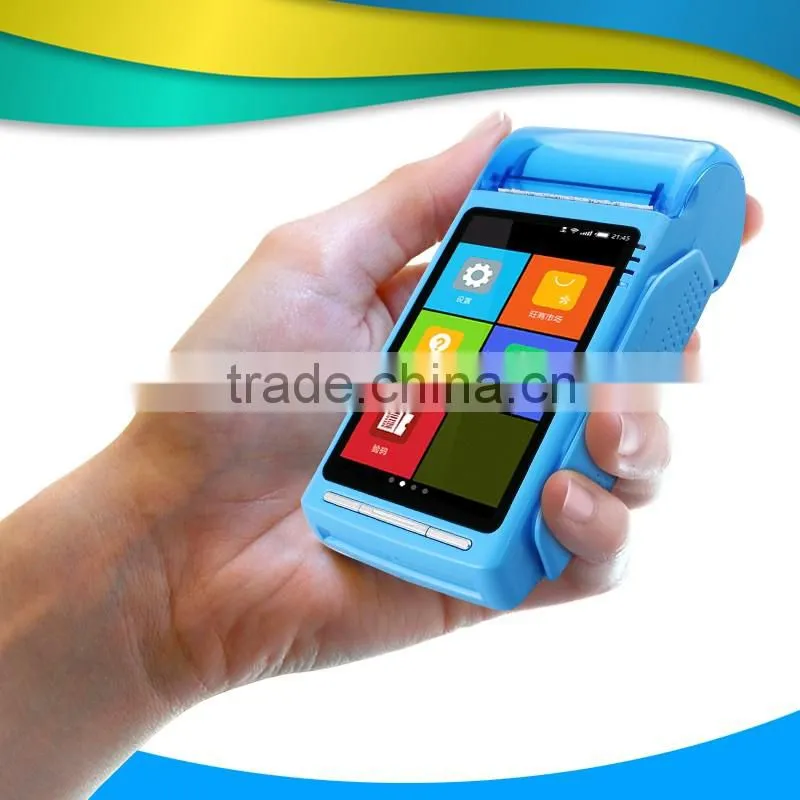

Good design 4 inch screen size android pos terminal with embedded barcode scanner module,card reader,thermal printer------Gc068
1.Widely Used in Follow Application:
1. Registration: Biometric Verification of SIMs/Vistors Registration/Voting
2. Prepaid Airtime: Electoronic prepaid card/PIN-LESS Top-up/Calling card
3. Bill payment: Electricity/Water/Gas/DTH/TV Recharges/Internet/Broadband/Insurance/Charity
4. E-ticketing: Railway/Ait/Bus/Movie
5. Money Transfer: Deposit/Withdrawal/Remittance
6. Loyalty Program: Loyalty card/Rewards card/Points card/Advantage card/Club card
7. Lottery: Lotto game/Bingo game/Casino game/
8. O2O Shipping
l Function description
Industrial application |
Many application platform software( developed by customer , without supply when deliver the equipment) |
Application Data Bases |
SQL Server for android |
Embedded recognition software |
Based in android 4.2 |
Operation System |
Android 4.0 version above |
l Basic Hardware Configuration
CPU Basic Frequency |
1.2Ghz (RK3168 dual core) |
DDR3 memory |
DDR3 1GB (256MB*16)*2 |
NAND FLASH |
4GB Support WMMC |
Colorful Camera Components |
500 pixel with assistant LED light |
LCD |
4 inch,resolution 800*480 QVGA |
Touch screen |
Capacitive multi-touch screen |
1D/2D barcode scanner (optional) |
Embedded semi-finished module |

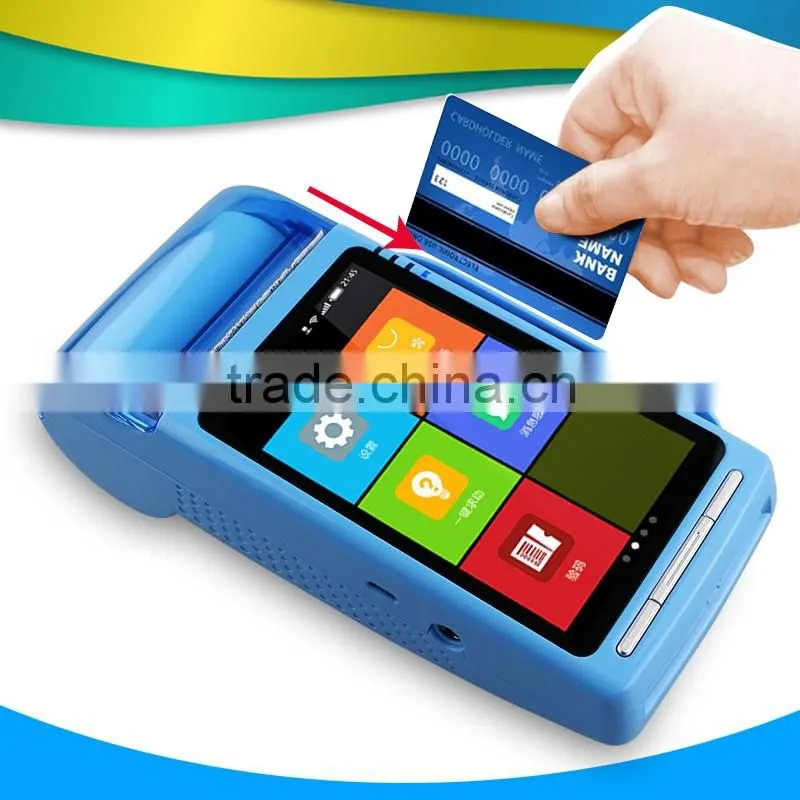

MSR(Optional) |
Spport 3-truack magnetic stripe card reader,comply with CPU magnetic stripe card reader specifications |
IC Card reader(optional) |
Compatible encryption IC card, smart IC card, in line with ISO7816 standards |
RFID card reader(NFC)(Optional) |
Non-contact Meet up with PHILIPS of MIFARE STANDARD ISO14443,ISO10536 and ISO7816,NFC standard,NFC standard |
Digital audio amplifier |
High-performance DSP processing,SD audio,3W mono output |
Pinpad |
3 laser carving transmission keyboard |
High-speed thermal printer |
Imported, low power consumption,57mm thermal printer head |
l Communication Model
Bluetooth module |
Blue tooth V2.0-3.0-4.0 |
GPRS module |
SIM800 2 requency 900/1800MHZ |
3G module(Optional) |
MW100 5 frequency WCDMA HSDPA/EDGE/GPRS compliant |
WIFI module |
meet standards----IEEE802.11b/g /n comply with wapi |
External port
USB |
1 Mini USB HOST 1 microphone jack |
TF Cassete |
Support 32G 1 |
DC slot |
DC IN 1 |
SIM Card |
In-line, high quality SIM card |
Package
Packing |
Standard industrial packing(white box+ paper holder+Carton+specifications +warranty card ) |
Standard industry package |
White box+paper holder+cartoon+specification+warranty card |
Adapater |
3C :Input 100-240V power output DC9V 2.5A |
Back up battery |
3.7V 4400mAh Lithium polymer battery the scanning time is over 12h when there is no transmission |
Operating environment
Working temperature |
-10℃ ~ 50℃ |
Storage temperature |
-40℃ ~ 80℃ |
Humidity |
95% Without sticky |
Drop standard |
1.2M six sides drop on the cement floor |
Static electricity protection |
12KV |
Packaging:
Outer skin |
ABS material dark gray |
Standard industry package |
White box+paper holder+cartoon+specification+warranty card |
Dimension |
170*80*60mm |
| Weight | 1.5Kg |
| Power adapter | Input 100-240V dual power output DC9V 5A |
Antenna |
Dedicated high gain and install antenna |
1.Any inquiry will be responsed within 24 hours
uld provide OEM service
3.Could help arrange the shippment
4.After sale service-1 year warranty

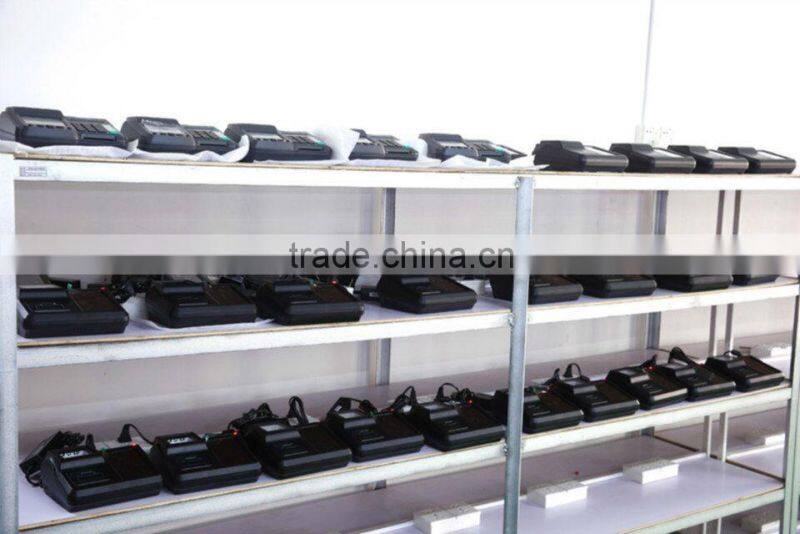

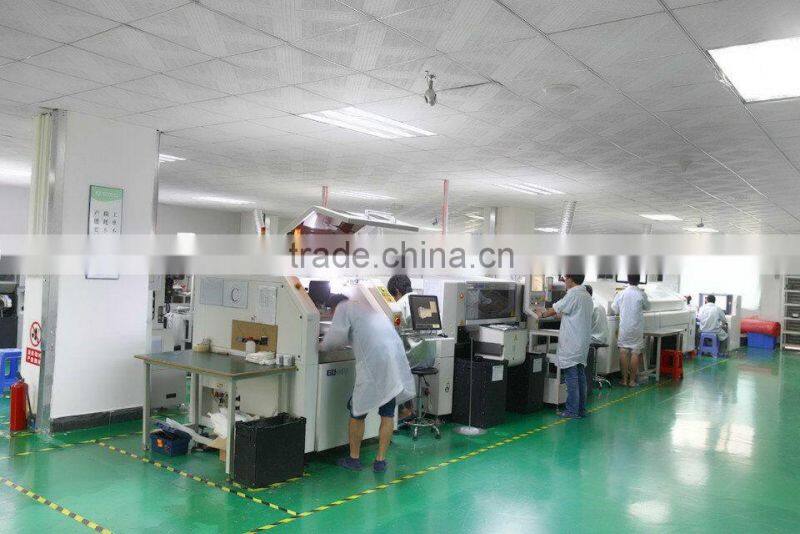

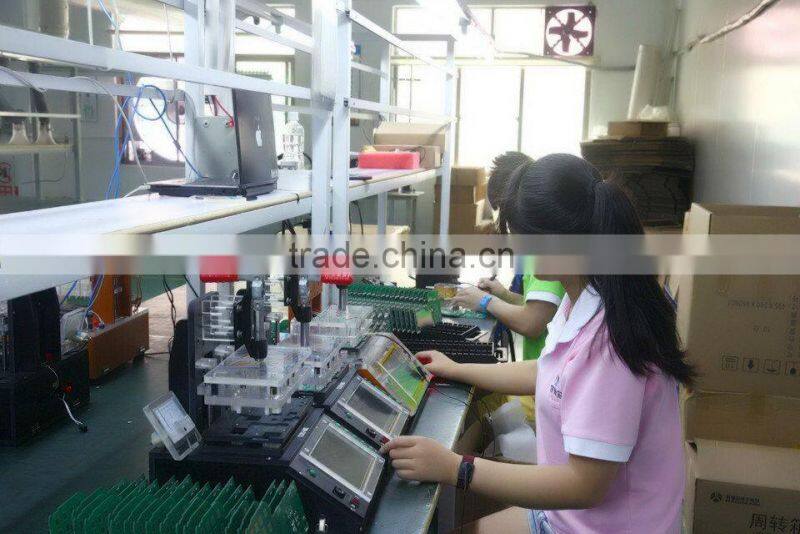

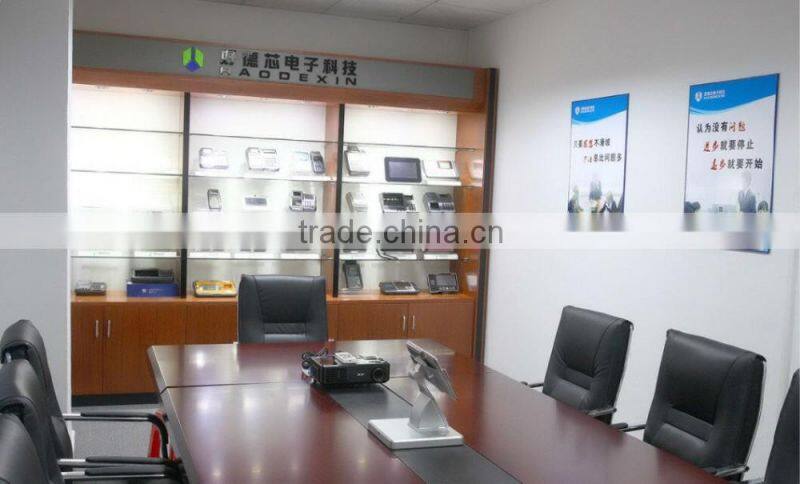

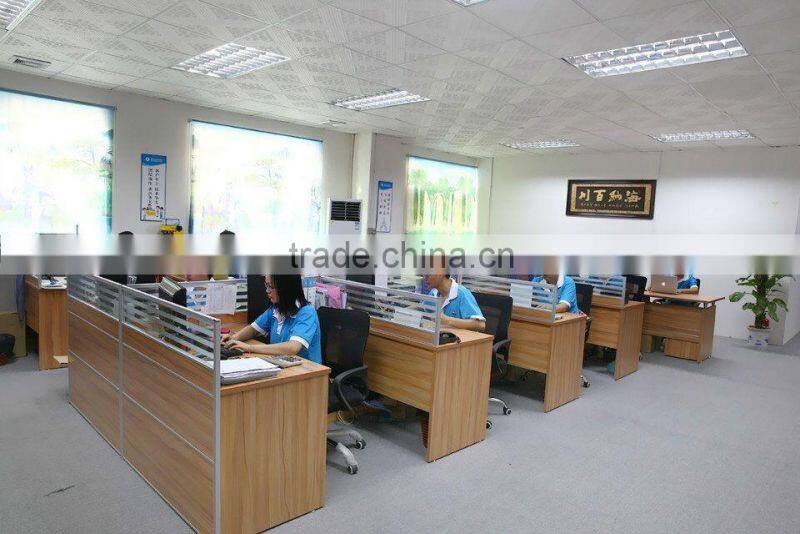

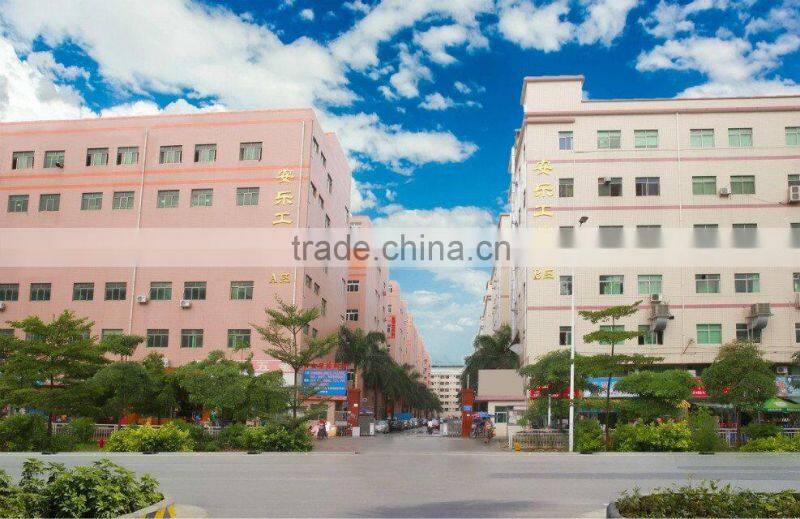

1. Founded in 2008,we have more than 6 years experienc in the 2D Bar Code Pos Terminal industry.
2. Cooperative partner with more than 500 big companies like Chinese telecom,mobile,Unicom,etc.

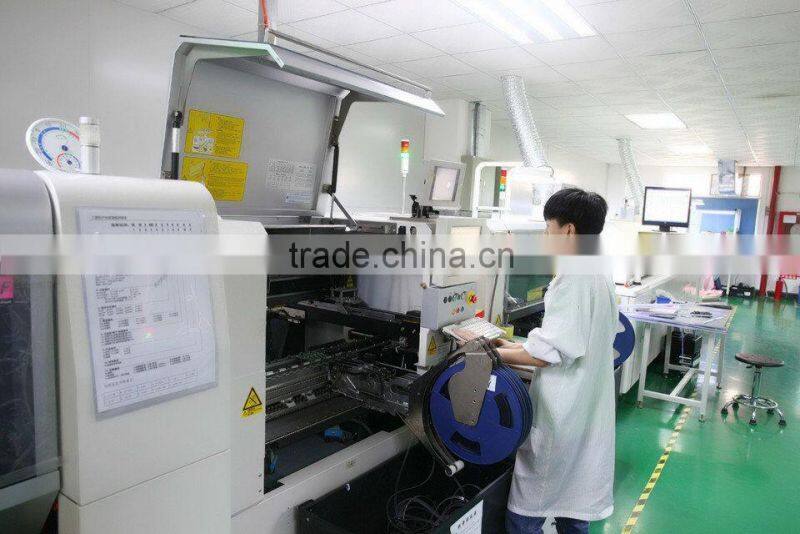

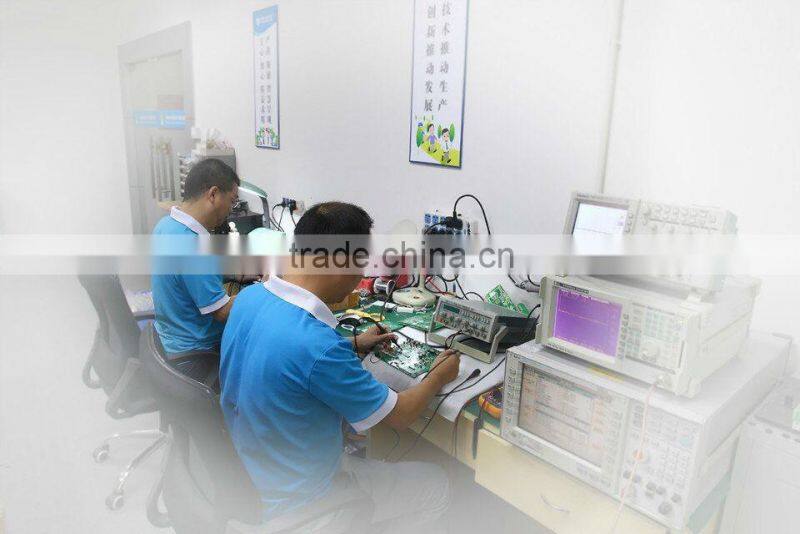

3.We have 6 product lines,more than 30 QC and more than 30 engineer,to guarantee the quality of the product and the the best solution.
