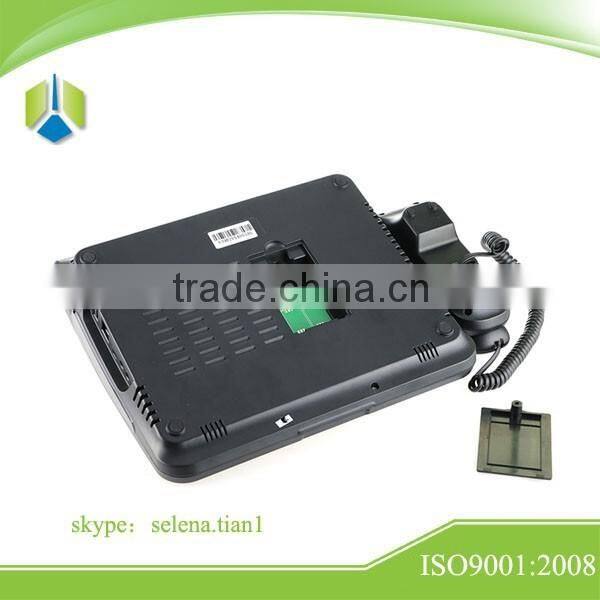

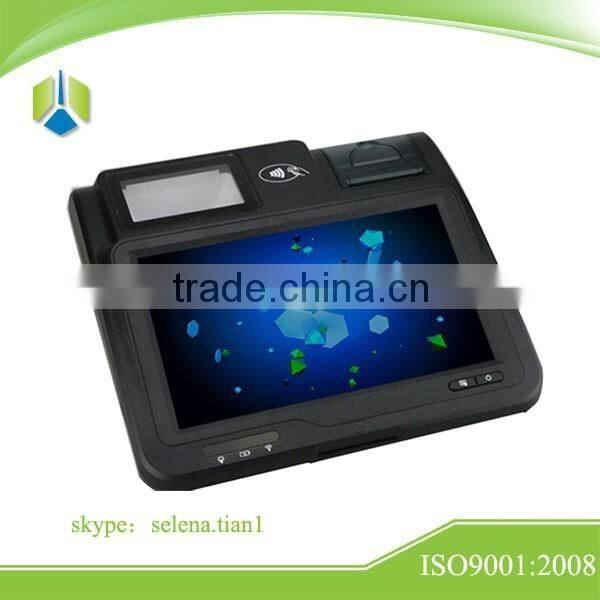

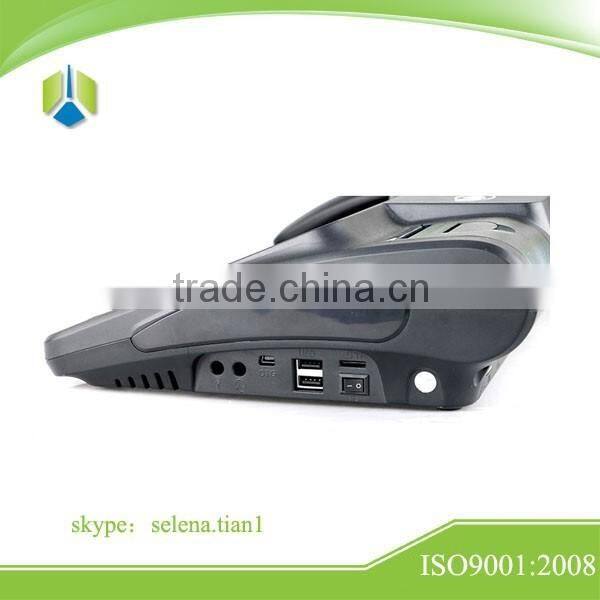

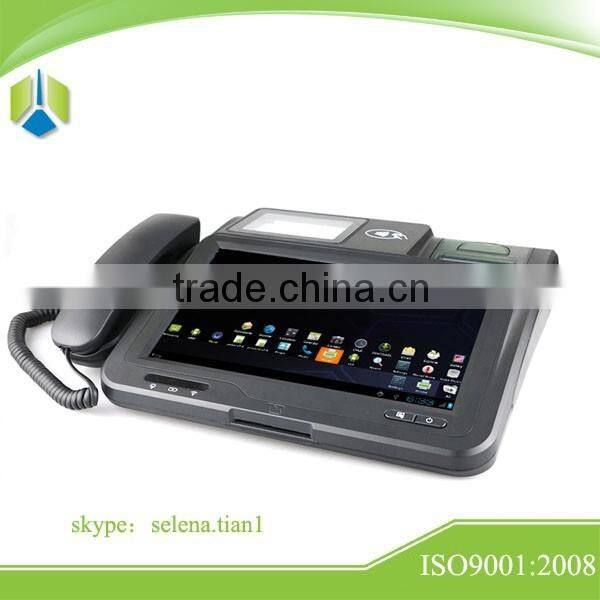

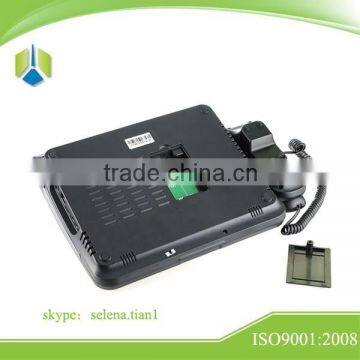

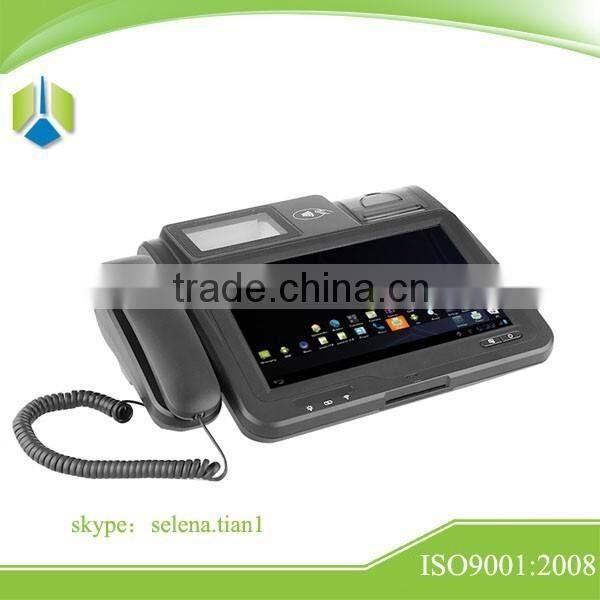

Classic hot selling 10.1 inch all in one Pos Terminal with 58mm thermal printer----Gc039B
1.Widely used in follow application
1. Registration:Vistors Registration/Voting
2. Prepaid Airtime: Electoronic prepaid card/PIN-LESS Top-up/Calling card
3. Bill payment: Electricity/Water/Gas/DTH/TV Recharges/Internet/Broadband/Insurance/Charity
4. E-ticketing: Railway/Ait/Bus/Movie
5. Money Transfer: Deposit/Withdrawal/Remittance
6. Loyalty Program: Loyalty card/Rewards card/Points card/Advantage card/Club card
7. Lottery: Lotto game/Bingo game/Casino game/
8. O2O Shipping
2.Parameter
Function description
| Industrial application | Many application platform(Developed by clients) |
| Operation system OS | Android 4.2 above |
| 2D Bar Code Reader | Data Matrix,Quick Response Code,PDF417,GM |
Basic Hardware Configuration
| CPU Basic Frequency | 1.2 GHz RK3168 ARM Dual Core Cortex-A9 Processor |
| Memory DDR | DDR3 1GB 2*(256X16) Chip cache |
| NAND FLASH | MLC Nand Flash 4GB,24bit ECC can be extended to 8GB |
| Exclusive Camera Components for two dimensional(Can identify all the information in the ID card install with OCR software) | 640*480 pixel(gray scale)CMOS camera 5 000 000 pixel+LED Backlighting light degrees electrode less adjustment |
| Camera range 82*51MM,can identify your ID card Low distortion of wide-angle lens | |
| Fixed focus | |
| LCD | Colorful RGB TFT screen,10.1inch,resolution 1024*600,16:9 wide screen image format |
| G+F Capacitive multi touch screen | |
| Back up battery | Chargeable Polymer Battery 7.4V 2000mAh |
| High-Speed thermal printer | Paper width:57MM,print speed:Highest 5CM/s,can print type,picture,barcode,support different kind and size of typeface |
| Musical Format | High efficiency dealer,SD sound,double channel output 2X3W,support MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP,EQ format,Support lyrics synchronization and all lyrics display |
| Picture Format | Support JPG,JPEG,BMP,GIF,PNG,JFIF picture format,the maximum resolution is 8000*8000 |
| Video Format | Support AVI,MPG,MKV,RM,RMVB,MP4,MOV,VOB,DAT,FLV,T S,3GP,WEBM(VP8)1080P all format |
| Voice call management | The wireless voice calls and 2 input type fixed telephone line independent control,Wireless and wireline telephone non-interference,the handle is wireless channel go call 3G module |
| SIM Card | Meet your local operator requirement by choosing different module |
|
NFC Reader (Optional) |
Frequency:13.56Mhz Mirafe card read/write module, meet with ISO14443A standard can support Mifare1 S50 |
| Mifare1 S70,Mifare light,Mifare ultra light,Mifare pro,ISO 10536,ISO7816 standard | |
|
IC Card Reader (Optional) |
read-write Class A/B and C(5V/3V/1.8V) Card in compliance with ISO-7816.To,T1 Protocol,in line with the EMV L1/L2 Specificationcan |
|
MSR Reader (Optional) |
Comply with relevant international card specification ISO-7811/13,support 1/2/3 magnetic track two-way swipe |
Communication Model
| 3G Module | WCDMA/EDGE/GPRS,850/900/1800/1900/2100 MHZ,compatible MW100 |
| Wifi Module | IEEE802.11b/g/n,compatible with wapi Bluetooth(Optional) |
| Ethernet interface(RJ45) | Support TCP/IP HTTP and other common protocal |

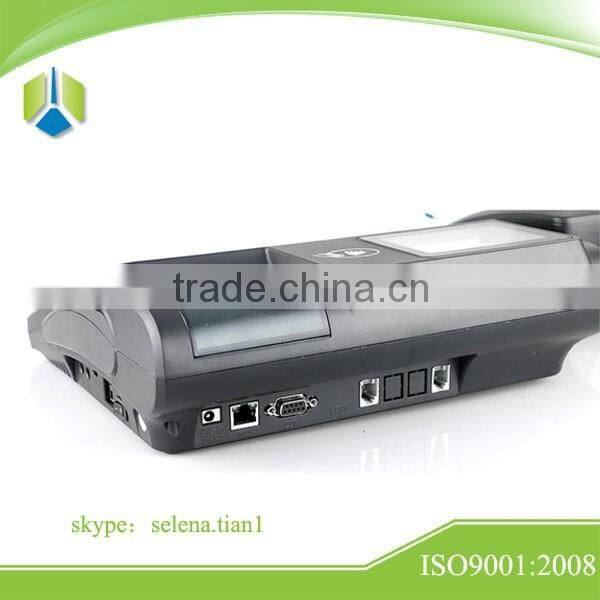

External port
| USB | 2.0 Host and client 1 |
| USB | 2.0 Device 1 |
| RS232 serial port | Standard DB9 1 |
| The telephone line socket | Standard RJ11 interface,2 input ports and 2 output ports 4 |
| TF card | The maximum capacity is 32GB 1 |
| HDMI port | Standard interface 1 |
| DC power input socket | Input current 5A and voltage 9V 1 |
| Mini USB OTG | 1 |
l Package
Shell |
ABS material dark gray |
Standard industry package |
White box+paper holder+cartoon+specification+warranty card |
capacitance pen |
Placed in the machine box |
Dimension |
440*310*135mm |
Weight |
2.5Kg |
Power adapter |
Input 100-240V output DC9V 5A with the power code |
Antenna |
Dedicated high gain and install antenna |
Shipping:
1.We have strong cooperation with DHL,TNT.UPS,FEDEX,EMS,China Airport,and all kinds of the special railway line.
2.Also you can choose your own shipping forwarder
1.All the inquiry will be replied within 8 hours
2.Will provide 12 months warranty to our customers
3.Provide technical support for all our products during its life time
4.Choose the most suitable shipment way for our customers
5.Track the order until you receive the goods
6.Provide the OEM service(we have full experience to do the OEM service)
