Specifications
IP65 protection,water-proof.Strong aluminum alloy casting case
WiFi module as stand
Dynamic MPPT efficiency>99.9%

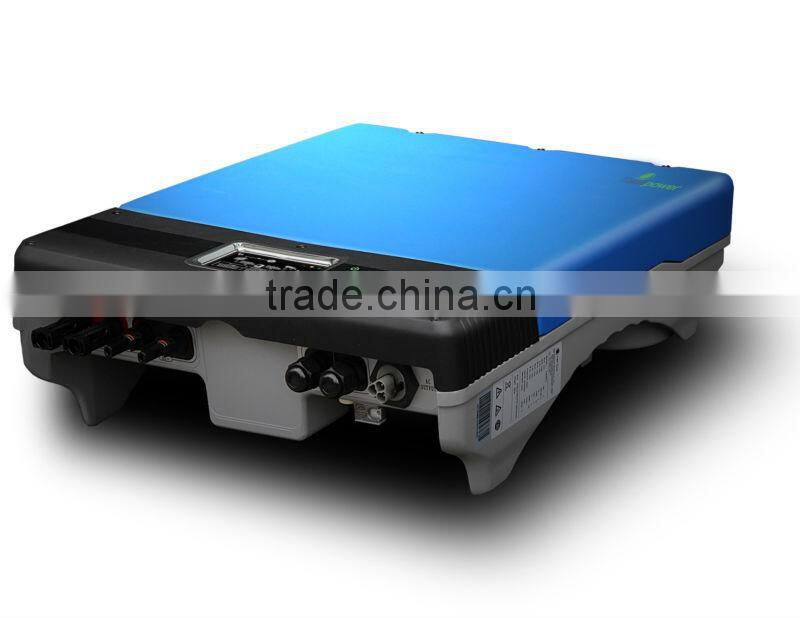

Thinkpower 1500w Inverter for Solar Grid Tie Application
Warranty:
Standard 5 years, 10 years available.
Certificates:
CE , IEC , VDE, SAA ,EN , G83/2 , G59/2
Delivery:
For few samples, normally within 3 working days after payment
Distributor Wanted:
We are manufactuer of solar grid tie inverters, with professional R&D team, tech assitance home and broad.
We are looking for distributor worldwide, welcome to contact us if you are in this business, we will give good support on products and service.
- IP65 protection,water-proof.
- Excelent low light sensitive
- Strong aluminum alloy casting case
- WiFi module as standard setting
- Standard 5 years warranty,10years available
- Dynamic MPPT efficiency>99.9%
- Wide input voltage range
- Low self consumption
| Model No | T1500TL | T2200TL | T3000TL |
| DC side/Input parameters | |||
| Max. DC power [W] | 1800 | 2500 | 3400 |
| Max. DC voltage [Vdc] | 450 | 500 | 550 |
| Min. System start/Shut down voltage [Vdc] | 150/100 | 150/100 | 150/100 |
| MPPT voltage range[Vdc] | 100~450 | 100~500 | 100~550 |
| Max. input current [A] | 10 | 13 | 15 |
| Number of MPP trackers | 1 | 1 | 1 |
| Strings per MPP tracker | 1 | 2 | 2 |
| AC side/output parameters | |||
| Nominal output power [W] | 1500 | 2200 | 3000 |
| Maximum output power [W] | 1650 | 2420 | 3300 |
| Nominal output voltage/range [V] |
208,220,230, 240/180~265 |
208,220,230, 240/180~265 |
208,220,230, 240/180~265 |
| AC grid frequency/range [Hz] |
50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
| Maximum output current [A] | 8 | 12 | 17 |
| AC connection(with PE) | Single phase | Single phase | Single phase |
| Current distortion(THDi) [%] | <1.5 | <1.5 | <1.5 |
| Power factor [%] | >99.9 | >99.9 | >99.9 |
| Efficiency | |||
| Maximum conversion efficiency[%] | 97.3 | 97.4 | 97.5 |
| European efficiency[%] | 97 | 97.1 | 97.2 |
| MPPT efficiency[%] | 99.9 | 99.9 | 99.9 |
| Protection | |||
| DC reverse-polarity protection | yes | yes | yes |
| Short circuit protection | yes | yes | yes |
| Ground fault/residential current monitoring | yes | yes | yes |
| Grid monitoring | yes | yes | yes |
| DC/AC side varistors(thermally protected) | yes | yes | yes |
| General Parameters | |||
| Dimension(L/W/H)[mm] | 375*480*136 | ||
| Weight(kg) | 17 17.5 18 | ||
| Embedded DC Switch | Optional | ||
| Night Mode support | Optional | ||
| Night power consumption[W] | < 0.2 | ||
| Isolation type | Transformerless | ||
| Protection degree | IP65 | ||
| Operation temperature[ºC] | -25 ~ 60 | ||
| Heat Dissipation | Convection | ||
| Acoustic noise level[dB] | <25 | ||
| Altitude[m] | <2000 without power derating | ||
| Storage temperature[ºC] | -30 ~ 80 | ||
| Real Time Clock module | yes | ||
| LCD Display | Graphic and digital segment | ||
| Communication Interface | Standard WiFi | ||
|
Warranty: 5/10yes/optional/optional/optional* More technical characteristics are avaliable on demand and customized. | |||
5 years standard, and 10 years available.

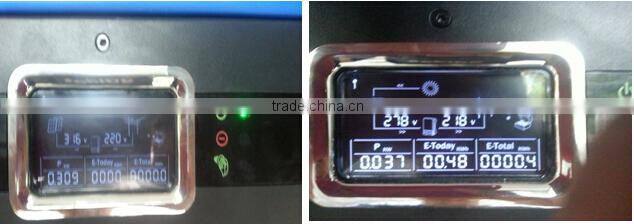

LCD Display, showing voltage, current power output, and total power output of one day.
Smart WiFi connection, check the system status anywhere anytime , easy and convenient!
Carton + Wood case , ensure safety during shipment.
Wuxi Thinkpower New Energy Tech. Co., Ltd.were founded in 2011, located in Wuxi,, is a professional hightech company specializing in R&D, production, sales and post-sales service of household PV Grid Tied Inverters.
Our small-sized grid connected inverters are in the Industry leading level with the conversion efficiency 97.8%.
Currently, Thinkpower Inverters are exported to over 20 countries around the world (Germany, Australia, Spain, Italy, etc).
Welcome to contact us.
