Home > Electrical & Electronics > Inverter > Power Inverter > 1.5kW DC to AC Single Phase Solar on Grid/grid Tie Inverter, WIFI Monitoring With CE TUV VDE AS4777 IEC Certification

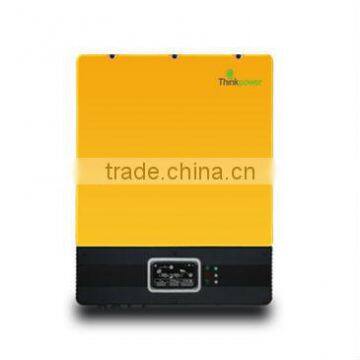

1.5kW DC to AC Single Phase Solar on Grid/grid Tie Inverter, WIFI Monitoring With CE TUV VDE AS4777 IEC Certification
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Thinkpower
Model Number:
T1500TL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thinkpower 2kw(2200w) Grid Tie Inverter, 220V/240V, 50Hz/60Hz, Solar Power InverterNegotiableMOQ: 3 Units -
Thinkpower 3kw (3000w) Grid Tied Inverter, 220V/240V, 50/60Hz Solar Power InverterNegotiableMOQ: 3 Units
-
Reasonable Price High Efficiency ThinkPower 1.5KW Solar Grid-tied Power InverterNegotiableMOQ: 1 Unit
-
3KW DC/AC Single Phrase, 50/60HZ Grid-connect Power Inverter With Free Wifi MonitoringNegotiableMOQ: 3 Units
-
Thinkpower Micro Inverter LS250W, 230V, 50Hz/60HzNegotiableMOQ: 10 Units
Place of Origin
Jiangsu, China
Brand Name
Thinkpower
Model Number
T1500TL
Output Power
201 - 400KW
Output Type
Single
Size
375x480x136
Weight
15kG
Input Voltage
Max.500
Output Voltage
208,220,230,240V / 180 - 265V
Type
DC/AC Inverters
Output Frequency
50Hz/60Hz
Output Current
Max.8 A

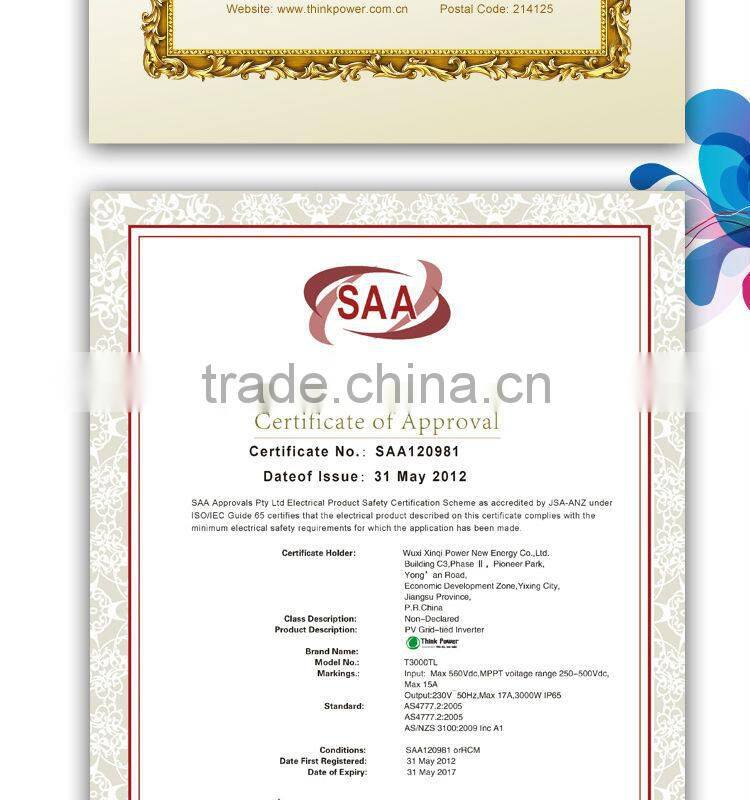

Thinkpower T series grid tied inverter(1.5kW, 2.2kW, 3kW) were designed for residential and small commercial PV installations. it has CE, TUV,SGS, VDE, AS4777 certifications.
can export to most countries.
1. Feature:
IP65 protection
Wide MPPT voltage range
High efficiency up to 97.3%
Build in WIFI monitoring as standard communication.
2. Technical parameters
| Model No | T1500TL | T2200TL | T3000TL |
| DC side/Input parameters | |||
| Max. DC power [W] | 1800 | 2500 | 3400 |
| Max. DC voltage [Vdc] | 450 | 500 | 550 |
| Min. System start/Shut down voltage [Vdc] | 150/100 | 150/100 | 150/100 |
| MPPT voltage range[Vdc] | 100~450 | 100~500 | 100~550 |
| Max. input current [A] | 10 | 13 | 15 |
| Number of MPP trackers | 1 | 1 | 1 |
| Strings per MPP tracker | 1 | 2 | 2 |
| AC side/output parameters | |||
| Nominal output power [W] | 1500 | 2200 | 3000 |
| Maximum output power [W] | 1650 | 2420 | 3300 |
| Nominal output voltage/range [V] | 208,220,230, 240/180~265 |
208,220,230, 240/180~265 |
208,220,230, 240/180~265 |
| AC grid frequency/range [Hz] | 50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
50,60/±4.5 auto-selection |
| Maximum output current [A] | 8 | 12 | 17 |
| AC connection(with PE) | Single phase | Single phase | Single phase |
| Current distortion(THDi) [%] | <1.5 | <1.5 | <1.5 |
| Power factor [%] | 99.9 | 99.9 | 99.9 |
| Efficiency | |||
| Maximum conversion efficiency[%] | 97.3 | 97.4 | 97.5 |
| European efficiency[%] | 97 | 97.1 | 97.2 |
| MPPT efficiency[%] | 99.9 | 99.9 | 99.9 |
| Protection | |||
| DC reverse-polarity protection | yes | yes | yes |
| Short circuit protection | yes | yes | yes |
| Ground fault/residential current monitoring | yes | yes | yes |
| Grid monitoring | yes | yes | yes |
| DC/AC side varistors(thermally protected) | yes | yes | yes |
| General Parameters | |||
| Dimension(L/W/H)[mm] | 375*480*136 | ||
| Weight(kg) | 14.5 15 15.6 | ||
| Embedded DC Switch | Optional | ||
| Night Mode support | Optional | ||
| Night power consumption[W] | < 0.2 | ||
| Isolation type | Transformerless | ||
| Protection degree | IP65 | ||
| Operation temperature[ºC] | -25 ~ 60 | ||
| Heat Dissipation | Convection | ||
| Acoustic noise level[dB] | <25 | ||
| Altitude[m] | <2000 without power derating | ||
| Storage temperature[ºC] | -30 ~ 80 | ||
| Real Time Clock module | yes | ||
| LCD Display | Graphic and digital segment | ||
| Communication Interface | Standard WiFi | ||
| Warranty: 5/10/15years yes/optional/optional/optional* More technical characteristics are avaliable on demand and customized. | |||

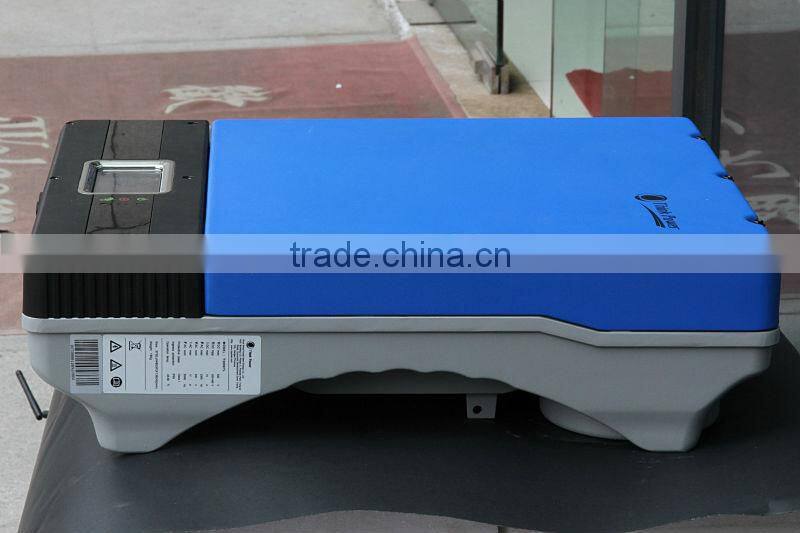

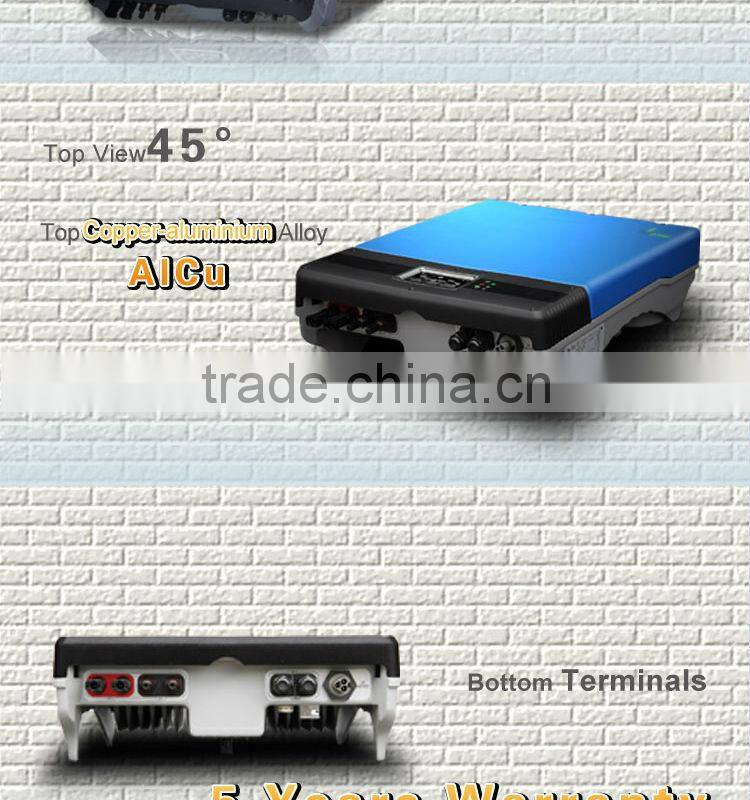

Product Description

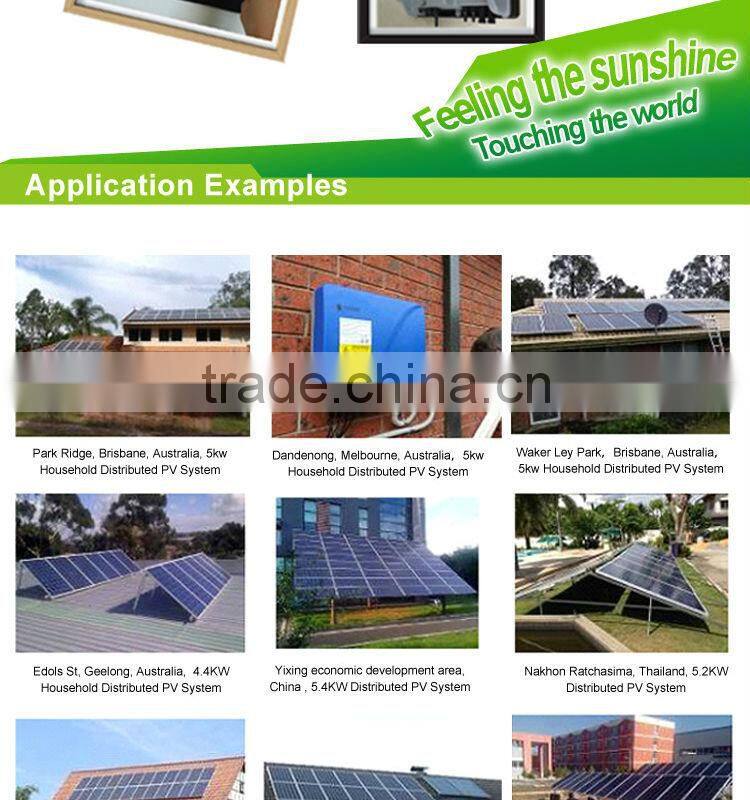

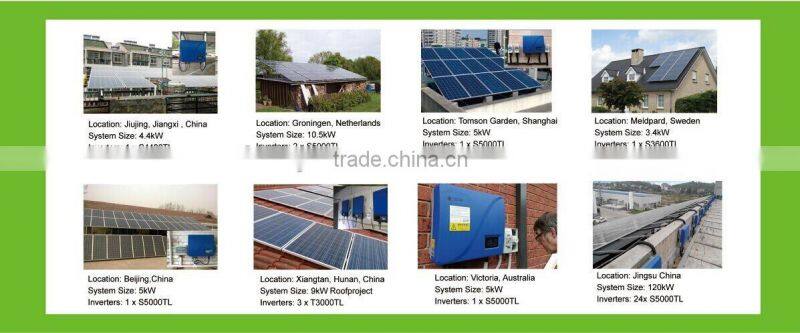

Reference projects

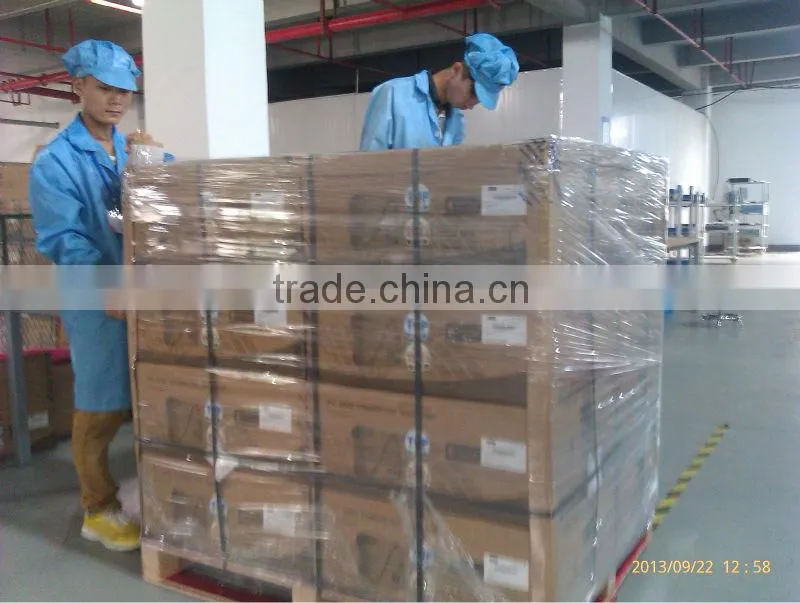

Packaging & Shipping

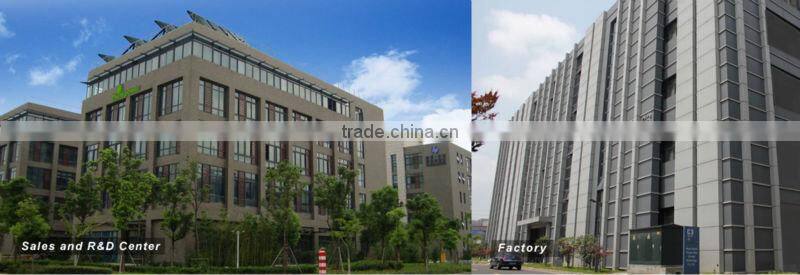

Company Information
Wuxi Thinkpower New Energy Technology Co.,Ltd.
We focus on technological innovation, take customer demand as guidance, and constantly enrich products. Our small-sized grid-connected inverters are in the industry leading level with the conversion efficiency 97.8%.
Currently, Thinkpower Inverters are exported to over 20 countries around the world
(Germany, Australia, Spain, Italy, etc.), what’s more, the product quality and customer service won universal praise from all partners and user.
if you have any require, please contact us:
Tel: +86 510 8519 2198
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
5,000-10,000 square meters
Total Employees
101 - 200 People
