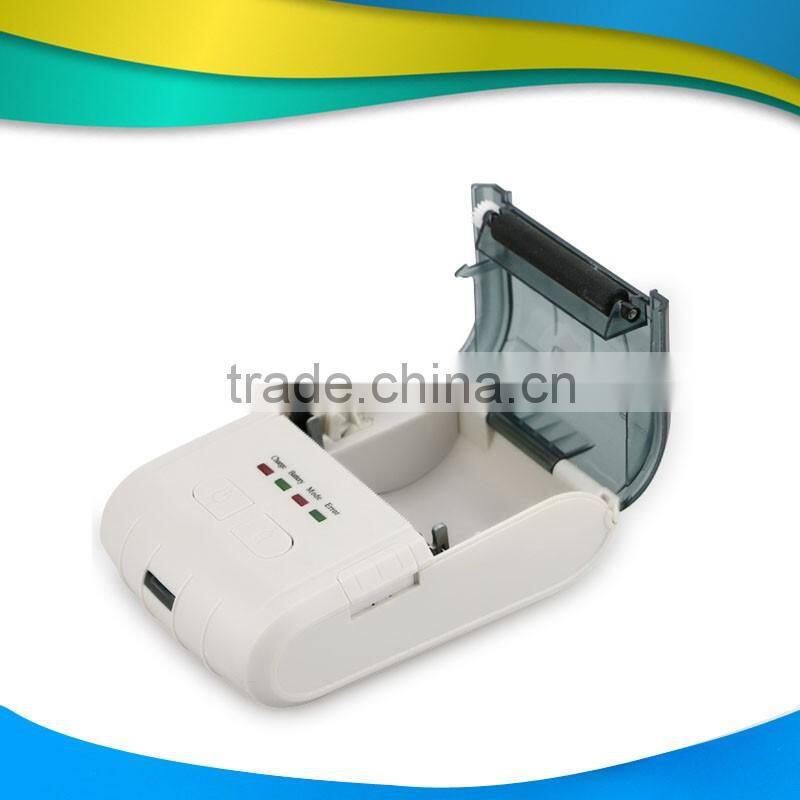

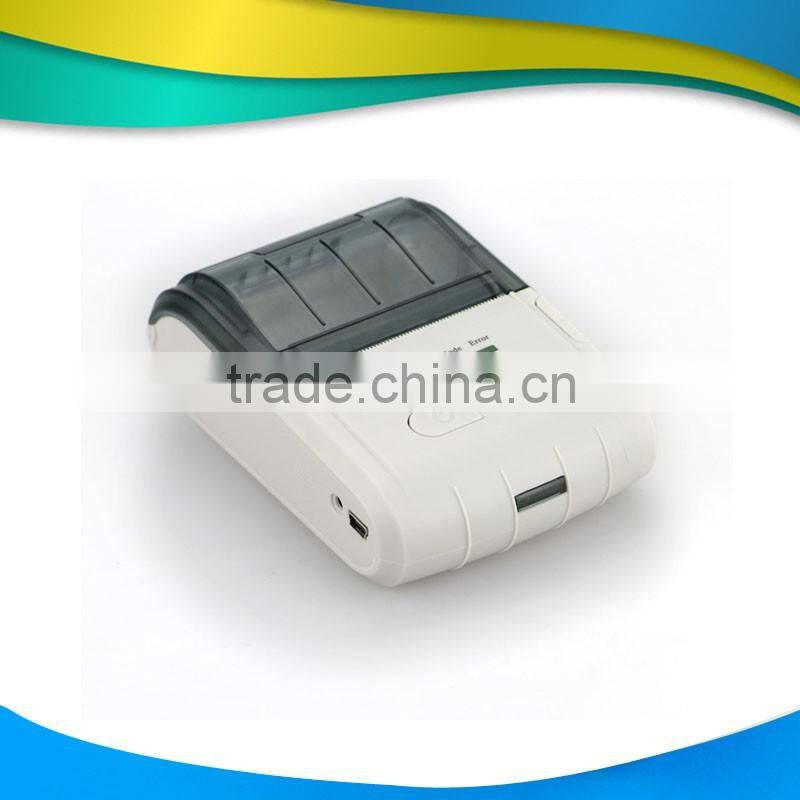

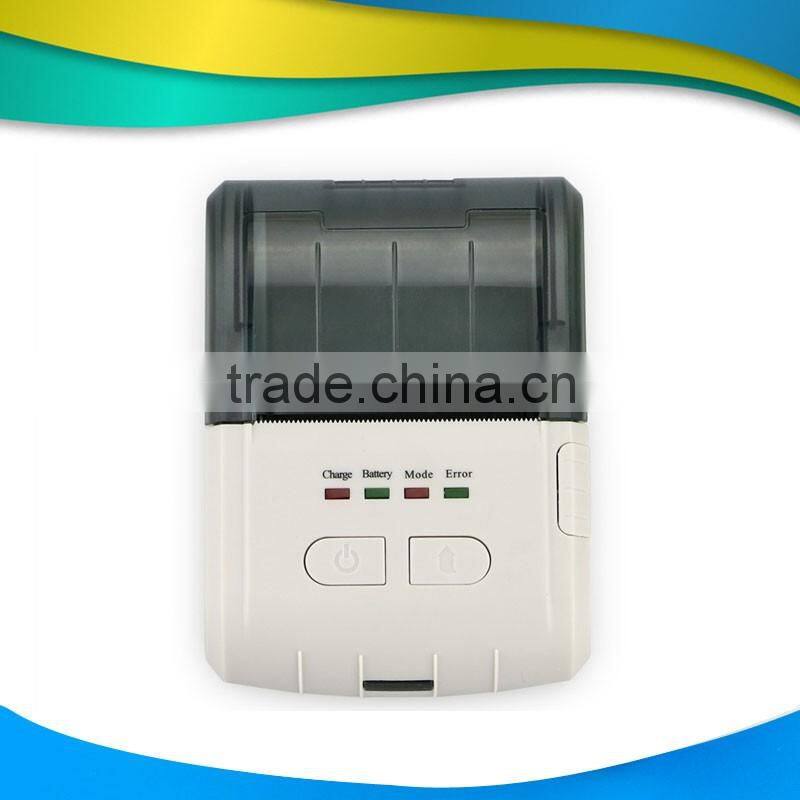

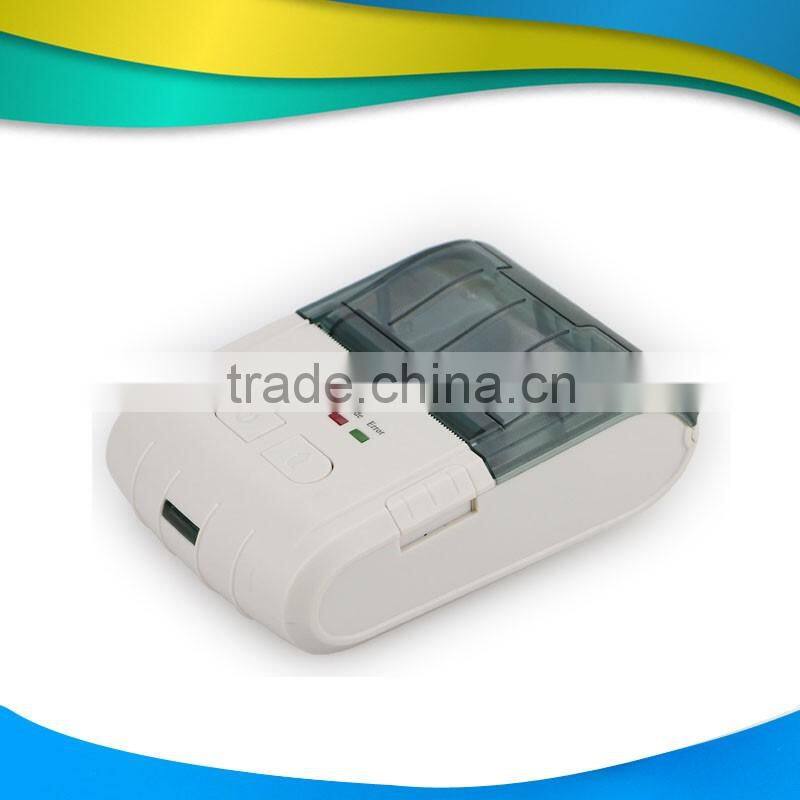

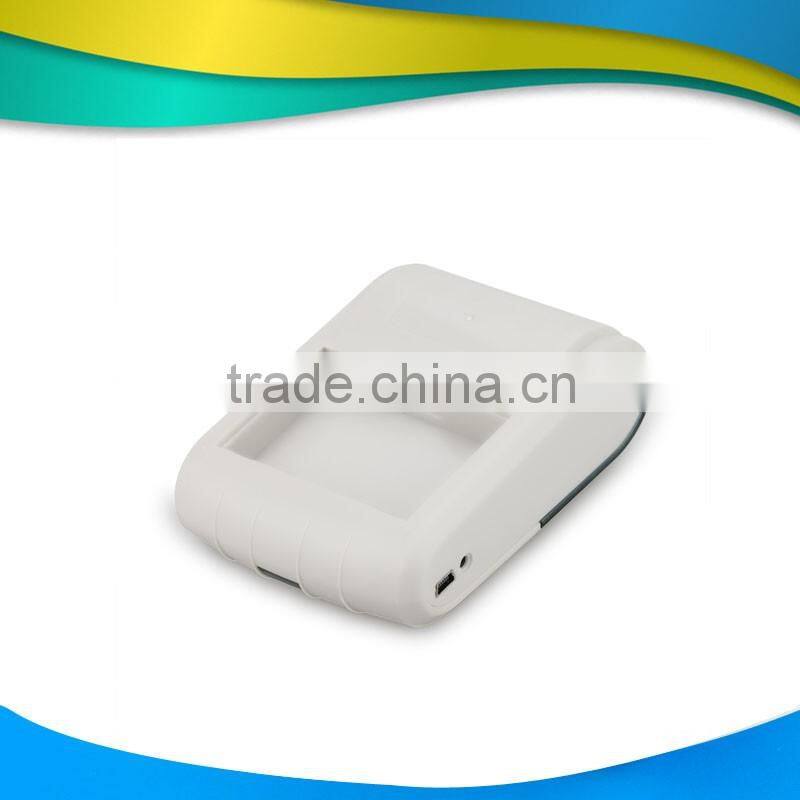

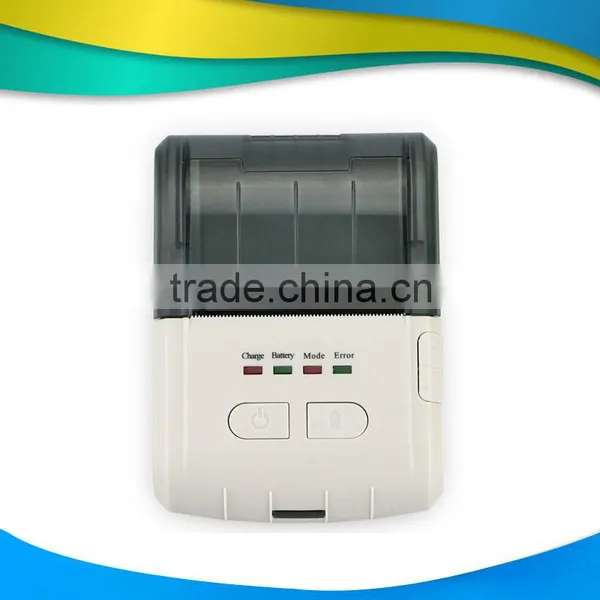

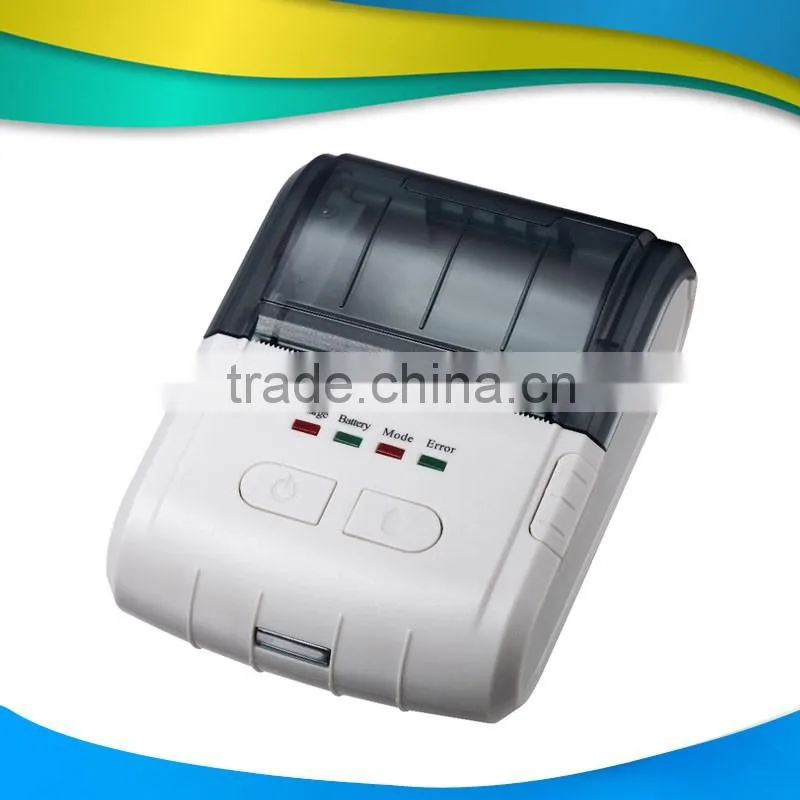

New arrival with 7.4V 1100mAh battery Bluetooth thermal printer for e-ticketing system-----HFE631
l .Application
1. Medical equipment
2.Fire alerting
3.Measuring equipment
4.Electric instrumen
5. Electric weighing instrument
6. Bill&Ticket printing
2 .Brief advantage
1.Ultra small&Ultra thin.
2.Totally enclosed compact design.
3.The appearance design is fashion and pragmatic.
4.Could be easily embedded into the customer’s system device.
5.Built-in the original import print head,low voltage,low power design.
3.Basic hardware
l Printing performance
Printing method |
Thermal line printing |
Each Line Points |
384 dots/line |
Resolution |
8 dots/mm |
Effective width |
40mm |
Printing speed |
60mm/s(Max) |
Feed width |
0.125mm |
l Character/Chinese Character/Picture/Bar code
|
Character
|
A Nk character set:12*24 dot;1.50(W)*3.00(H)MM |
|
National standard First,Secondary Chinese character 24 dot matrix:12*24,16 dot matrix:8*16 | |
Graph |
Support different density dot bitmap print register:6K bytes |
Printing Character |
International standard 2312-80 simply style font library |
Bar code |
Support UPC-A,UPC-E,EAN-13,CODE39,ITF25,CODABAR,CODE93,CODE128 code print |
l Interface parameters
Serial interface |
MINI USB socket Baud Rate:115200bps |
Bluetooth port |
Bluetooth Spec V2.0+ EDR compliant Standard Communication protocol Baud Rate:115200bps |
Red radiation slot |
NO But Optional |
l Power supply
DC current power supply |
DC 9V±10%,2A,A-1009-2P power socket |
Li-po battery |
7.4V 1300mAh |
l Printing paper
Paper type |
Common thermal paper |
Printing paper width |
57.5±5mm |
Paper thickness |
0.06~0.08mm |
Scroll size |
57*30mm |
Paper installation way |
Simple paper,Drawer open warehouse |
Cutting paper way |
Tear(Tooth shape untying) |
l Detection mode
Lack of paper testing |
Support |
Overheating test and Protection |
Support |
Shipping
Will ship the products to you via DHL,UPS,TNT,EMS and FedEX
Will take about 7-10 working days for us to ship the products to you after make sure the delivery
Our services
Will provide 24 months warranty time for all our products
Provide technical support for our products during its life circle
Choose the most suitable shipment way for you
Track the order until you get the products
