Specifications
1.Duble-cylinder working2.High working pressure and Dual Fluid Grouting Pump
3.Easy to maintain and Best price

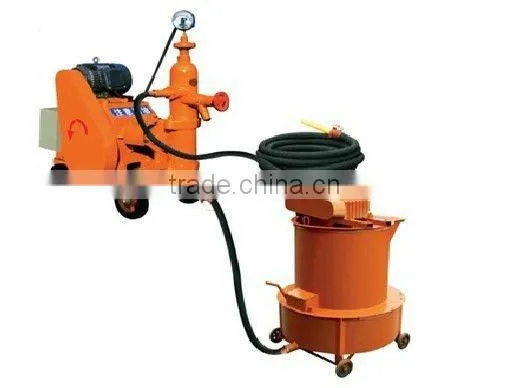

High pressure Hydraulic Mortar pump / Concrete grouting pump
The pump has the advantages of small size, light weight,power small and large displacement, freepulse,high working pressure.Appling double-cylinder working,it is more stable operation, saving in materials, energy saving, carrying convenient, it is your ideal mortar transportation.
Application:
1.In the construction engineering, used in vertical and horizontal transportation mortar.
2.In the railway construction, used for Bridges, tunnels of the grouting reinforcement.
3.In thermal power plant is used to transport fly ash mortar.
4.In the highway pavement maintenance, used for cement concrete road surface bottom cavity pressure grouting.
Feature:
1.The advantages of this product are low consumption, no pulse, high working pressure.
2.It uses double-cylinder operation,so,it can run more smoothly and save raw material. It is convenient to move, so it is your ideal mortar conveying equipment.
3.Compact construction, suitable for small space.
4.It adopts oil hydraulic drive, the machine works reliably, the pressure of the pump is high.
5.It may transport water, coal slurry similar glass, paper slurry and so on of composite materials.
6.It uses indeed widely.
Detailed:
1.It can be widely used in coal mining face water tunnel grouting, rock and concrete sidewall pouring water, tunnel broken rock mass evacuation of cracks rock reinforcement to fill strong, anchorage, backfilling grouting and prevent grouting surface subsidence.
2.It is a kind of double function of single cylinder piston pumps, may transport the slurry yellow mud sodium silicate oil water DuoZhong medium high pressure pump can also conveying mortar two medium by conveying a medium.
3.It has the structure is compact reliable low failure rate cleaning and convenient maintenance and pumping pressure higher advantages.
4.It may transport water, coal slurry similar glass, paper slurry and so on of composite materials.
5.It uses indeed widely.
Technology Date:
Model |
ZB-325 |
Conveying capacity |
3m³/h |
Max. Working Pressure |
2.5MPa |
Motar speed |
1440r/min |
Level transportation distance |
250-300m |
Vertical transportation distance |
40m |
Grout particle size |
<3mm |
Number of Plunger Cylinder |
1 |
Host power |
3kw |
weight |
200kg |
Shape dimension(L*W*H) |
1200*470*900mm |
Outlet diameter |
64mm |
Inlet diameter |
38mm |
Number of time of piston |
150 |
We have other types of construction machine for you choose.If are interested,contact me pls.
Contact :Summer du
Skype:summerschina
TEL:+86 13730380716
