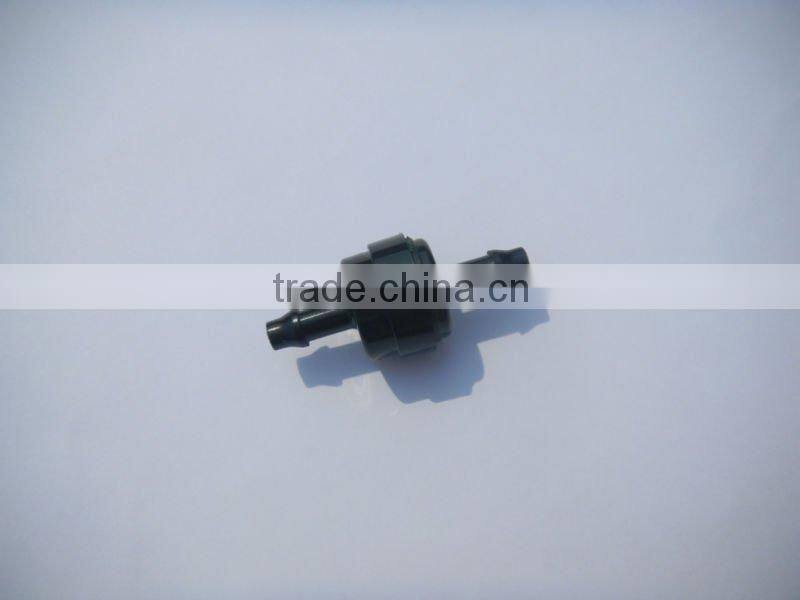

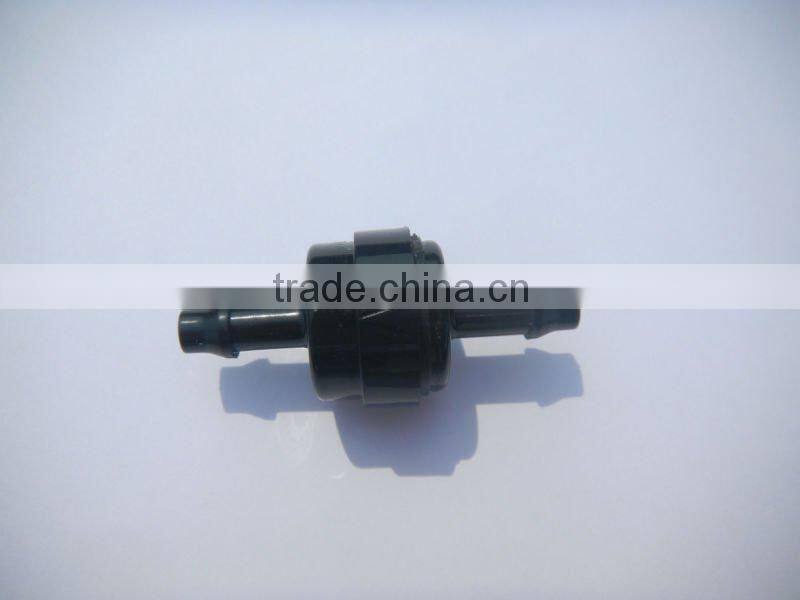

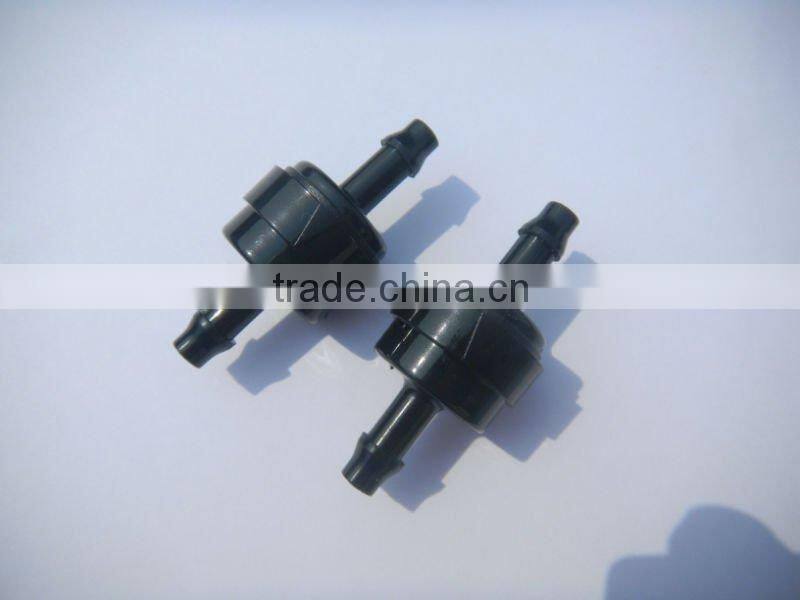

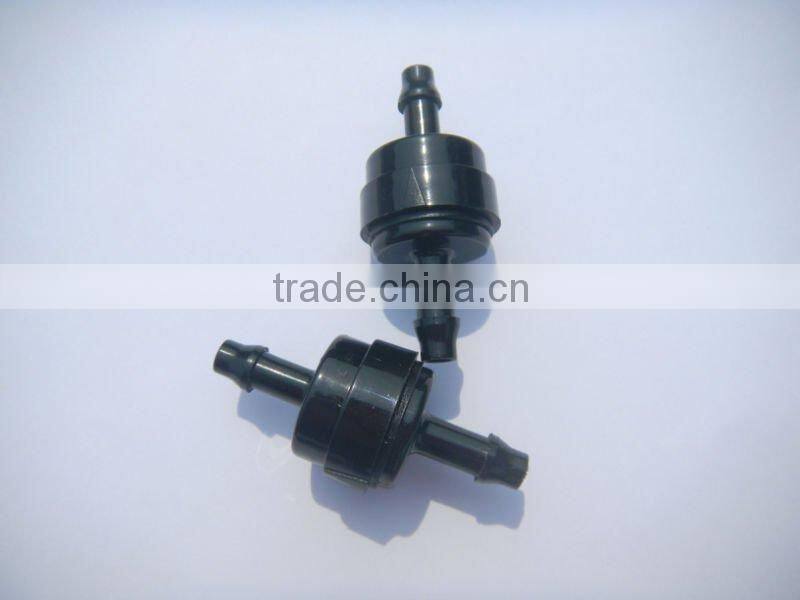

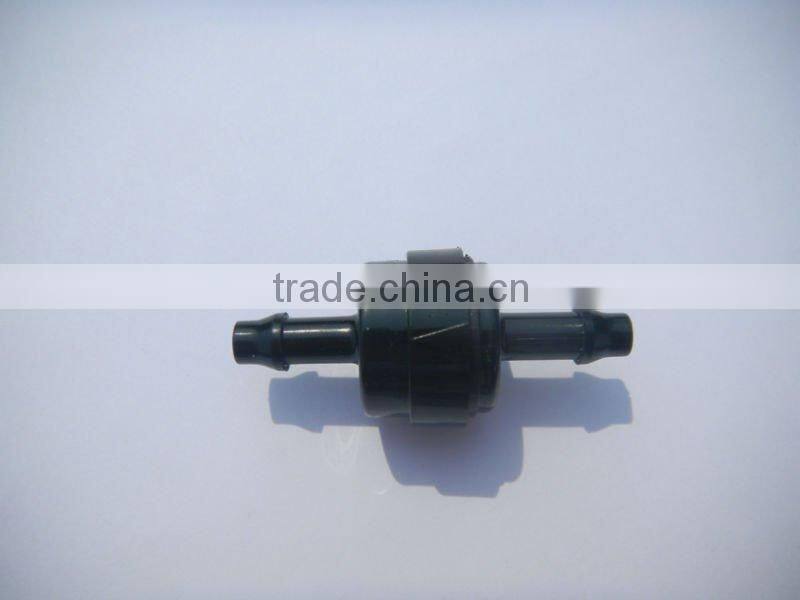

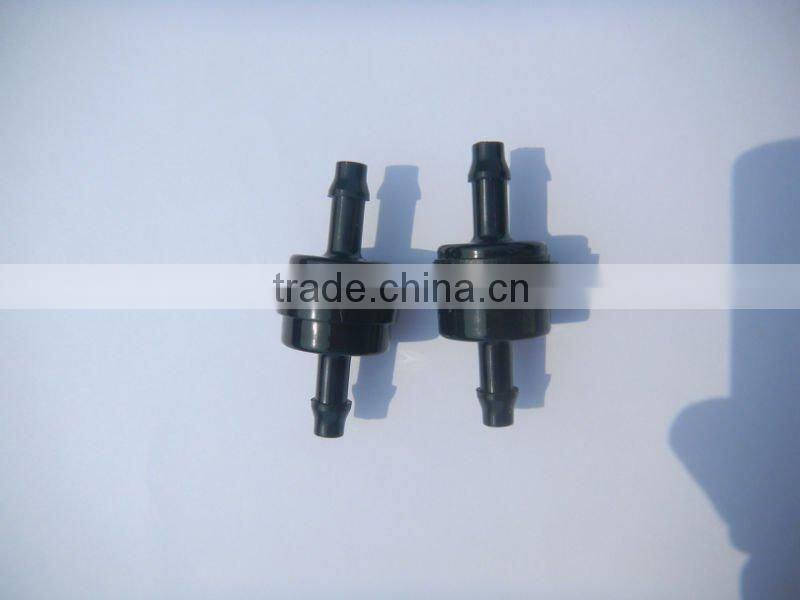

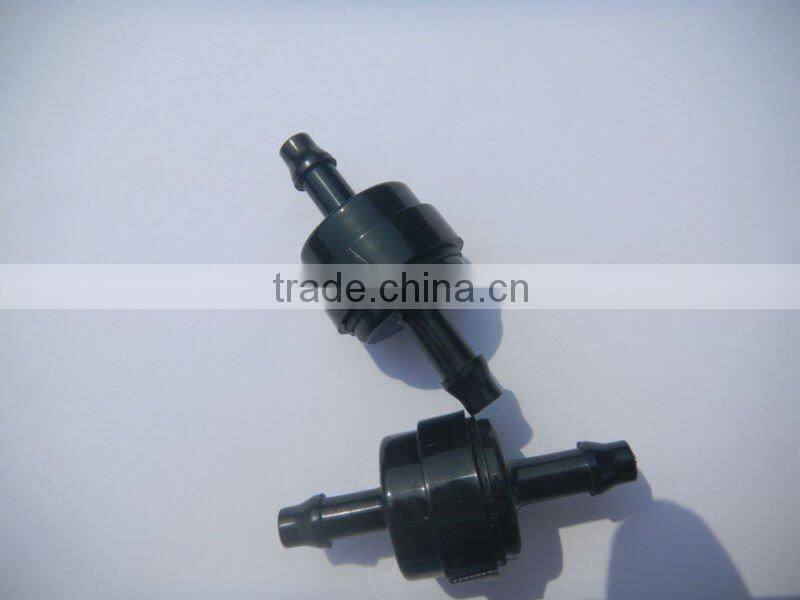

Help Center1/8" PA66 VITON/plastic Check Valves/fuel Valves
Related Products
-
3/8" PP VITON Mini Ozone Resistance Check Valve DCV1606CVNNegotiableMOQ: 100 Pieces -
1/8" One Way Non Return Valves/fuel Valves/spring Valves FCV1602AVDCUS$ 0.65 - 0.92MOQ: 100 Pieces
-
3/16" PA66 Viton Plastic Check Valve DCV1603AVNUS$ 0.56 - 0.80MOQ: 100 Pieces
-
1/16" Plastic Duckbill Check Valve DBV1601EENUS$ 0.77 - 1.10MOQ: 100 Pieces
-
1/4" ABS Silicone Diaphragm Non Return Check Valve DCV1604BSNNegotiableMOQ: 100 Pieces
Specifications
valve suspension system check valve one way valve1. 100% factory tested
2. best price
3. shipping fast
4. free samples
valve suspension system check valve one way valve
product detail:
body material: PA66
diaphragm material: VITON
Cracking pressure: 1.5Kpa (standard)
Max back pressure: 1.0 MPA (Model suffix “DC” )
Major Application
- industrial inkjet
- wide inkjet printers
- tester
- gasoline engine
easy installation,maintenance
excellent flow characteristic
Check valves are used to prevent flow of fluid (gas or liquid) in one direction and allow flow in the other direction.
1.Five port sizes. (nominal inside diameter of the tube in which it fits) 1/8", 3/16", 1/4", 5/16" and 3/8".
2.Three housing materials. nylon type 66, polypropylene and PVDF
3.Four diaphragm materials. fluorosilicone, Viton, silicone and EPDM
Function:
1.Prevents damage to equipment, pumps, and flow systems by preventing backflow
2.Tubing barbed check valves are for an inert high purity smooth and clear flow path.
3.Use with liquids and gases for pressure or vacuum applications.
4.The check valves has a low pressure drop and can be specified with a wide variety of cracking pressures
Advantage:
1.We offer competitive pricing and reliability because we are the manufacture.
2.If your design requires a unique configuration, we will be pleased to quote your needs.
3.plastic materials can save money for you and are simple, compactultrasonic welding to connect more firmly.
Packing
plastic bag and wrapped, cased in small carton
