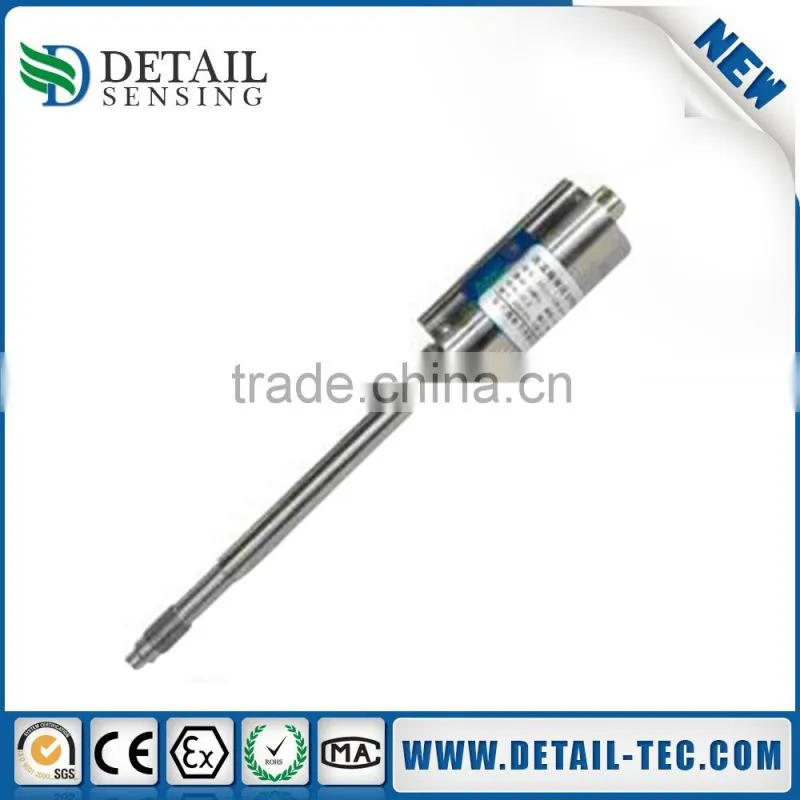

DPT124-111 High Temperature Melt Pressure Sensor, Transducer

DPT124-111 High Temperature Melt Pressure Sensor, Transducer

Product Description

     DPT124 Series transmitting instruments for high-temperature fusion pressure transducer/transmitter.

Application

   Measuring and controlling pressure of high-temperature articles in the fields of chemical fibers, plastics and rubber or high-temperature resistant fluid.

Features

  *By assimilating advanced technologies of similar international products and using imported raw materials and key elements, the instrument is characteristic of stable operation, reliable performance, high accuracy, strong output signal, excellent dynamic performance and slight high-temperature resistant zero drift. If DPT124 series transmitters are jointly used with DPY series instruments manufactured by us, then all requirements of customers can be fully satisfied. It can be also be used with import instruments without any adjustment or modification. Connecting screws and outgoing connectors are all universal. Transmitting instrument can also be replaced with import ones.

Specification

Product Name:  flexible melt pressure sensor
Model No.:HPS131-121; HPS131-230; HPS131-301; HPS131-321
Pressure Type:Gauge Pressure
Pressure Range:0-10 Bar……1500 Bar / 0-150Psi……20000Psi G Optional.
Power Supply:10V DC
Electronic Wire:5Core or 6 Core/Pin/Wire
Output:2 mV/V; 3 mV/V; 3.33 mV/V optional.
Accuracy:(Linearity; Hysteresis;

Repeatability)≤ ±0.5%F.S;≤ ±0.25%F.S;optional
Working Temp:0℃~400℃
Medium compatible:Various media compatible with the 316L stainless steel
Electronic connection:Fixed cable

Explore Proof and water proof IP67; 5 Pins Plug; 6 Pins Plug IP65;

Terminal Box (Hirschman) IP65.
Process connect port:1/2’’-20UNF Male; M10*1, M14*1.5; M20*1.5… (by order)
Thermocouple type:J,K,E, PT100 Optional
Certificate approve:CE Certificate.
Explore Proof:Exd II CT5
Remarks:Special applications request by order
