M-L144T1-RGBW(A) outdoor led par stage lighting is based on an RGB color model and mainly designed for outdoor & Indoor use. Its protection grade is IP65, which makes it effective waterproof and dustproof.
It is often used in varied place such as high buildings, theme park, theatrical or live music shows. It is more energy saving and higher illumination due to their LED source. Also, It has longer service life, whose working time can be up to 50,000 hours.
Specification and Parameter
| Technical DataModel | M-L144T1-RGBW(A) |
| Power Supply | AC220±10%, 50Hz(AC110±10%, 60Hz available) |
| Power Consumption | 144W max |
| Light Source | 48 high power LEDs(Red:12×3W,Green:12×3W,Blue:12×3W,Amber/White:12×3W) |
| Beam Angle | 25°(15°& 45°available) |
| Illumination intensity | 21400Lx@Lm |
| Control Channels | 6/8/12 |
| Control Signal | DMX512,Auto Mode,Master/Slave Mode |
| Input signal | XLR 3-pin(In & OUT) |
| working temperature | -20°C~ 40°C |
| Protection Grade | IP65 |
| Dimension | 350mm×230mm×290mm |
| Net Weight | 7.5kg |
| Light Source work time | 50,000hrs |
| Strobe | 0.3~ 15 flash/sec |

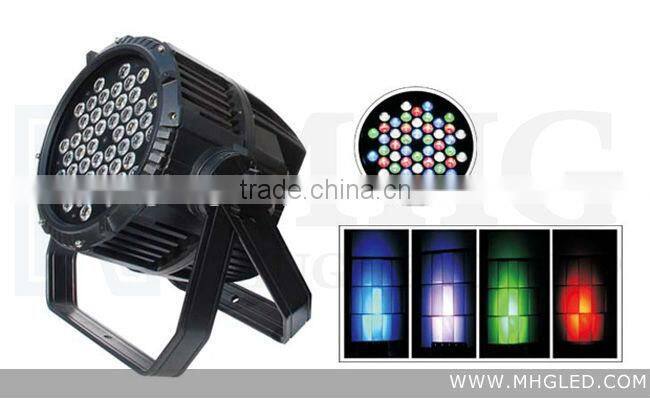

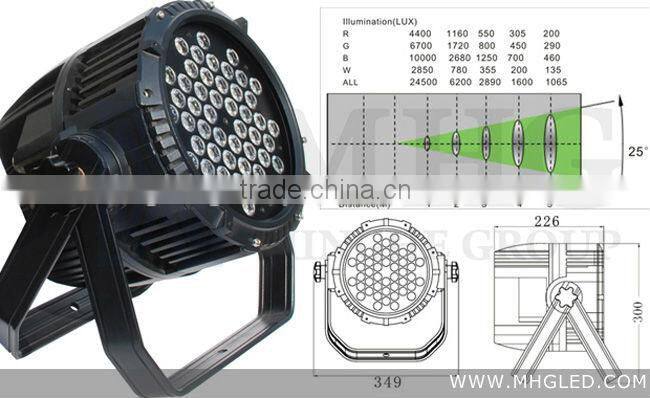

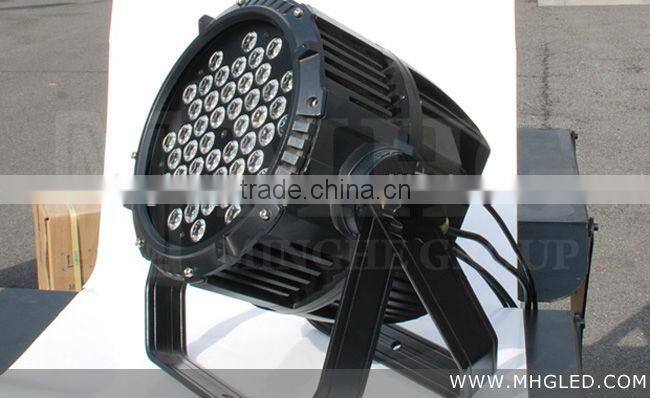

Item Pictures:
Features:
This item with 48 pc high power leds, much better brightness.
LED light series designed for professional stage and architectural lighting applications, it incorporates high power LED with 3 different basic colors: red, green and blue, it is easy to mix them into a color spectrum to create virtually unlimited selection of colors. With light source of LED, this fixture has following advantages:
1. Long service life, service life is 50000 hours under nominal working conditions, and only 5% decrease in the first 1000 working hours;
2. Bright colored, color saturation can be reached at more than 90% to produce more brilliant light effects;
3. High efficiency and low power consumption. There is no color filter loss, being efficient at electro-optic transfer;
4. RGB color mixing with or without DMX control;
5. Environmental protected, since there is no ultraviolet radiation and infrared ray in the spectrum, it is low at heat emission and radiation;
6. With a build-in stand alone function and master / slave mode available;
7. Current protection to PCB panel and over-heat protection;
8. 64 sub-ID codes addressing panel available in one DMX address.
With aluminum alloy housing, our LED light is of excellent quality and good durability. It is designed for both indoor and outdoor applications and typically used as a down light for stages or illumination of specific points of interest such a performer, status, buildings, and disco, etc. it is widely used at entertainment places, such as dancing hall, architectural building, discos, pubs, theaters, shows and clubs, etc.
Lighting effect & Successful case

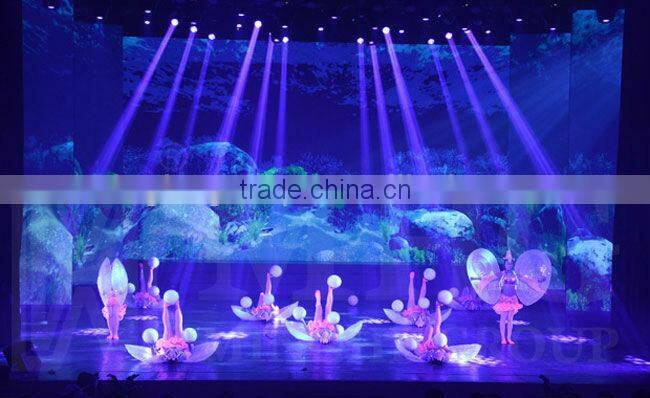

M-L144T1-RGBw(a)- LED stage light Case---Hunan Grand Theatre Stage effect project

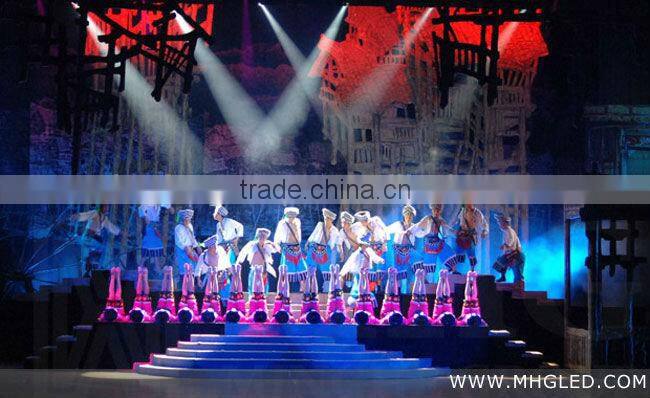

M-L144T1-RGBw(a) LED stage light Case--The Hunan Acrobatic Art Theater Stage Effect Project
CE certified:
LED Light Workshop
About MHG
Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.
And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
Contact us
Company Name: Hunan Minghe Opto Tech Co., Ltd.
Street Address: NO 2. Xiang Yang Road, Changsha National Economic Development Zone,Hunan,China
Zip: 410100
Telephone: 0086-731-85252378
Fax: 0086-731-84029869
