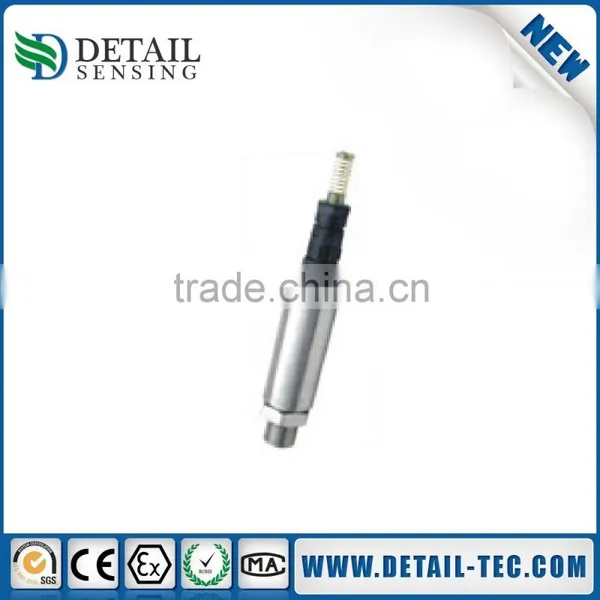

DBP93420IF Pressure Transmitter Sensor Damp-proof
Description
DBP93420IFpressure transmitters are designed for air compressor and refrigeration equipment specially with high cost performance. They adopt the latest technology, high performance transmitter circuit of our independent research and development. Small dimension, strong damp-proof and anti-electromagnetic interference ability. After strict testing and aging screening on components, semi-manufactured products and end products, the performance is ensured to be stable and reliable.
Features
Measurement range:0~100MPa
Multiple pressure ports
Multiple output signals
Intrinsic safety explosion-proof type
Conform to the state explosion protection standards
Explosion-proof certificated, explosion-proof sign: ExiallCT6
Full 316LSS material
Protection level:IP65
CE certificated
Nationla patent No.:ZL2006 2 0079219.6.
Applications
Liquid, gas which is compatible with 316L stainless steel
Petroleum, chemical industry, metallurgy, electricity, hydrology process at the scene
Applicable to measure liquid and gas under the damp, wire bending environment

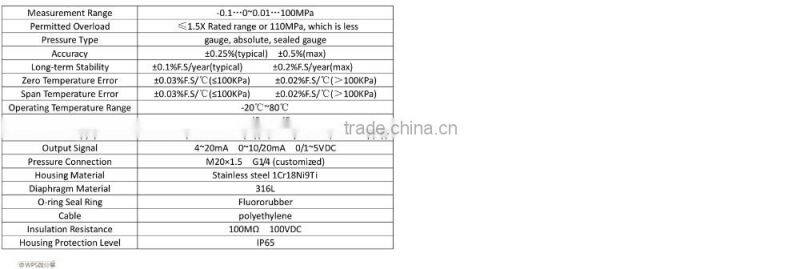

Specification

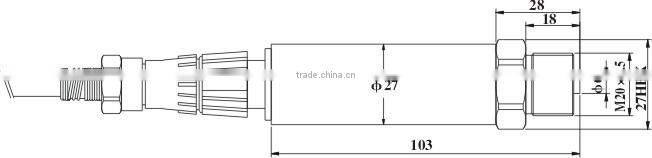

Dimension(mm):
