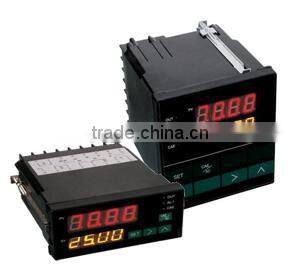

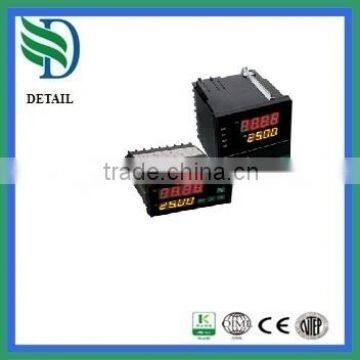

Pressure Measuring Instruments, Hydraulic pressure regulator Low Pressure
Model: DPY500
Name: pressure indicator
Input signal: MV,DC, DA, R, J, K...
Output signal: 0-10vdc, 0-5vdc, 4-20mA
Application: Pressure, and temperature measurement & controller
Characteristic: temperature indicator, pressure indicator
DPY500 pressure and temperature regulator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit regulator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power. This pressure regulator has been specifically designed for use with mV/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. Together with the mv/Volt transducers and thermocouple, DPY500 Pressure Regulator can be working as the high precision pressure and temperature measurement. DPY500 Pressure regulator displays the pressure and temperature and outputs the control relays timely.
(1) |
Display |
Dual 4-digit Green and Red LEDs |
(2) |
Resolution |
0.2% FSO ± 1 |
(3) |
LEDs |
Out, Alarm-1, Alarm-2, Calibration |
(4) |
Input Sensibility |
2.5mv/V or 3.3 mV/V (automatic selection) |
(5) |
Sampling Speed |
20 per second |
(6) |
Excitation Voltage |
+9 VDC (output to transducer) |
(7) |
Temperature Input |
Thermocouple “E”, “J”, “K” |
(8) |
All Output Relays |
Relay 220V 1A |
(9) |
Retransmission |
4~~20 mA standard current loop |
(10) |
Communication |
RS-485 MODBUS( DPY602 Only) |
(11) |
Alarm Range |
0001 – 9999 PSI or Bar (configurable) |
(12) |
Temperature |
0 - 55°C |
(13) |
Humidity |
<= 80% RH |
(14) |
Calibration |
80% FSO (Full Scale Output) |
(15) |
Power Supply |
110/220VAC or +24VDC (designated while purchasing) |
(16) |
Size |
DPY602H: 96mm×46mm×100 mm (W x H x D) DPY602: 96mm x 96mm x 110 mm (W x H x D) |
(17) |
Panel Cutout |
DPY602H: 96mm x 46mm (W x H) DPY602: 96mm x 96mm (W x H) |
(18) |
Weight |
400(Maximum) grams |
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
