Specifications
high lumen led outdoor building projector90 high power 3W LEDs
270W
CE & ROHS certified
M-L270T1-RGB LED outdoor building projector is combined with advanced cooling technology, adopts high power 3W or 8W LED lamp; it is controlled by DMX to achieve chase, scan effect. The IP65 protecting grade makes the light workable in the outdoor environment of -20°C-40°C.
Application: stage, architecture, stadium, wharf, public square, and parking area lighting, etc
Specification and Parameter
| Technical DataModel | M-L270T1-RGB |
| Power Supply | AC220±10%, 50Hz(AC110±10%, 60Hz available) |
| Power Consumption | 270W max |
| Light Source | 90 high power 3W LEDs(30Red,30Green,30Blue) |
| Beam Angle | 45°(25°available) |
| Illumination intensity | 19700Lx@ Lm |
| Control Channels | 5/7/11 |
| Control Signal | DMX512,Auto Mode,Master/Slave Mode |
| Input signal | XLR3-Pin(In & Out) |
| Combined safety design | patent technology |
| working temperature | -20°C~40°C |
| Protection Grade | IP65 |

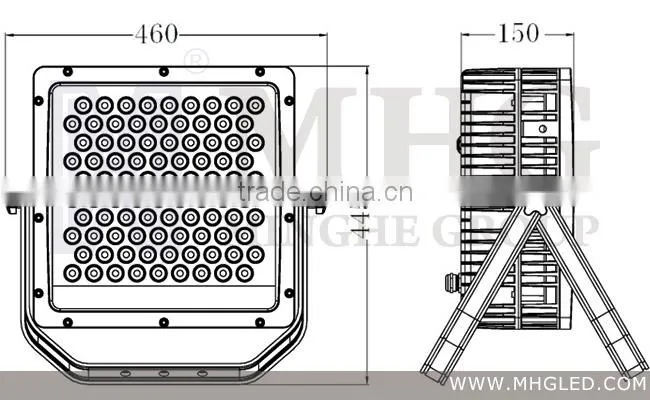

| Dimension | 460mm×157mm×445mm |
| Net Weight | 13kg |
Item Pictures:
LED projector light production line

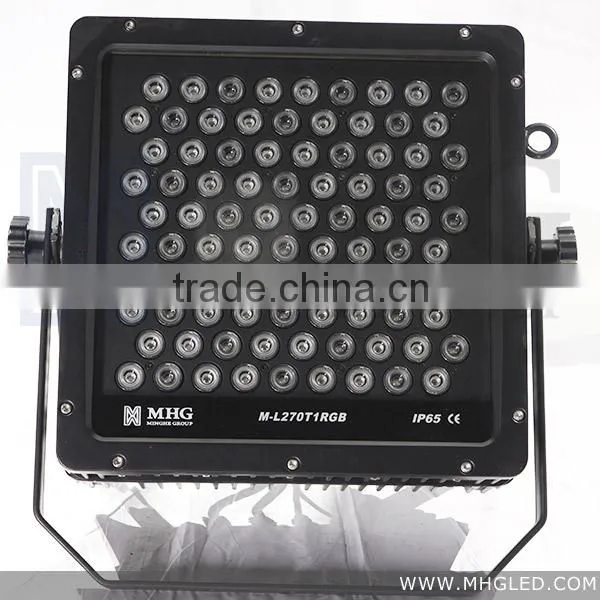

Side Pictures

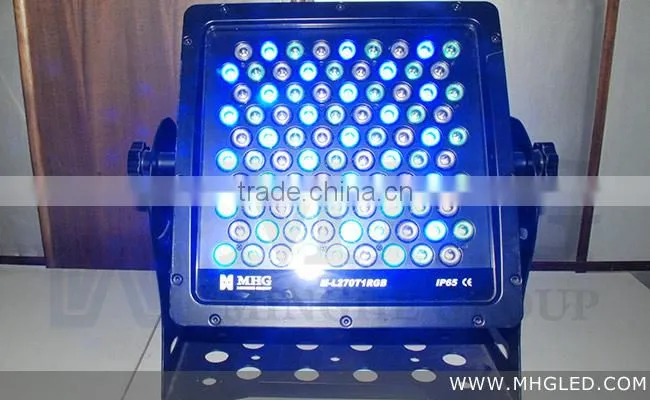

M-L270T1-RGB LED projector light lighting effect
M-L270T1-RGB LED projector light Case- Hunan Flower Drum Opera Theatre
Features:
This item with 90 pc high power leds, much better brightness.
LED light series designed for professional stage and architectural lighting applications, it incorporates high power LED with 3 different basic colors: red, green and blue, it is easy to mix them into a color spectrum to create virtually unlimited selection of colors. With light source of LED, this fixture has following advantages:
1. Long service life, service life is 50000 hours under nominal working conditions, and only 5% decrease in the first 1000 working hours;
2. Bright colored, color saturation can be reached at more than 90% to produce more brilliant light effects;
3. High efficiency and low power consumption. There is no color filter loss, being efficient at electro-optic transfer;
4. RGB color mixing with or without DMX control;
5. Environmental protected, since there is no ultraviolet radiation and infrared ray in the spectrum, it is low at heat emission and radiation;
6. With a build-in stand alone function and master / slave mode available;
7. Current protection to PCB panel and over-heat protection;
8. 64 sub-ID codes addressing panel available in one DMX address.
With aluminum alloy housing, our LED light is of excellent quality and good durability. It is designed for both indoor and outdoor applications and typically used as a down light for stages or illumination of specific points of interest such a performer, status, buildings, and disco, etc. it is widely used at entertainment places, such as dancing hall, architectural building, discos, pubs, theaters, shows and clubs, etc.
CE certified:
LED Light Workshop
Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.
And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
