LED projector Lighting outdoor

Specifications

LED projector Lighting outdoor
36Red,36Green,36Blue
stage and architecture lighting use
CE & RoHS



LED projector Lighting outdoor light  is combined with advanced cooling technology, adopts high power 3W or 8W LED lamp; it is controlled by DMX to achieve chase, scan effect. The IP65 protecting grade makes the light workable in the outdoor environment  of -20°C-40°C.



Application: stage, architecture, stadium, wharf, public square, and parking area lighting, etc



Specification and Parameter



Technical DataModel	M-3TL108HRGB
Power Supply	AC220±10%, 50Hz(AC110±10%, 60Hz available)
Power Consumption	108W max
Light Source	108 high power 1W LEDs(36Red,36Green,36Blue)
Beam Angle	25°(15°,45°available)
Illumination intensity	27500Lx@ Lm
Control Channels	5/7/11
Control Signal	DMX512,Auto Mode,Master/Slave Mode
Input signal	XLR3-Pin(In & Out)
Combined safety design	patent technology
working temperature	-20°C~40°C
Protection Grade	IP65
Dimension	570mm×225mm×190mm
Net Weight	13.5kg

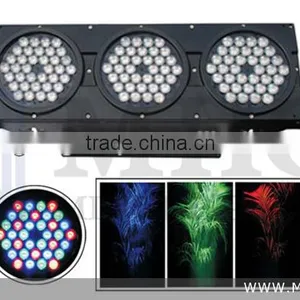

Item Pictures:

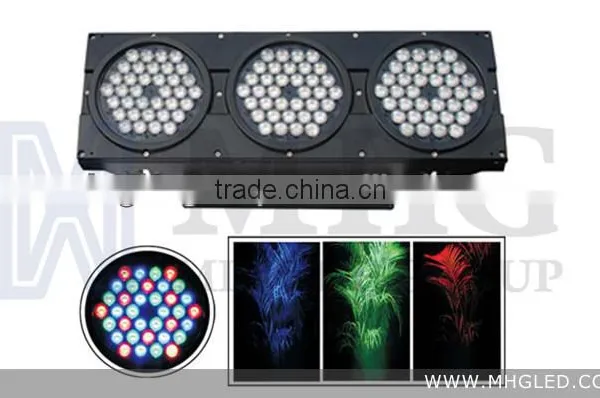

M-3TL108H-RGB Lighting effect



 Features:

This item with 108pc high power leds, much better brightness.



LED light series designed for professional stage and architectural lighting applications, it incorporates high power LED with 3 different basic colors: red, green and blue, it is easy to mix them into a color spectrum to create virtually unlimited selection of colors. With light source of LED, this fixture has following advantages:



1. Long service life, service life is 50000 hours under nominal working conditions, and only 5% decrease in the first 1000 working hours;

2. Bright colored, color saturation can be reached at more than 90% to produce more brilliant light effects;

3. High efficiency and low power consumption. There is no color filter loss, being efficient at electro-optic transfer;

4. RGB color mixing with or without DMX control;

5. Environmental protected, since there is no ultraviolet radiation and infrared ray in the spectrum, it is low at heat emission and radiation;

6. With a build-in stand alone function and master / slave mode available;

7. Current protection to PCB panel and over-heat protection;

8. 64 sub-ID codes addressing panel available in one DMX address.



With aluminum alloy housing, our LED light is of excellent quality and good durability. It is designed for both indoor and outdoor applications and typically used as a down light for stages or illumination of specific points of interest such a performer, status, buildings, and disco, etc. it is widely used at entertainment places, such as dancing hall, architectural building, discos, pubs, theaters, shows and clubs, etc.



 CE certified:





LED Light Workshop







About MHG



Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.



And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
