DLC118 Lifting Weight Limiter, Automobile Examination Load Cell

Name: DLC118 Lifting Weight Limiter, Automobile Examination Load Cell
Brand: DETAIL
SKU: 106806935
Availability: InStock

US$ 500 - 800 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

DETAIL

Model Number:

DLC118

Hunan Detail Sensing Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen GuangZhou ChangSha

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name DETAIL

Model Number DLC118

Type Other

Power Supply 9-36VDC

Accuracy 0.2%FS

Product Description

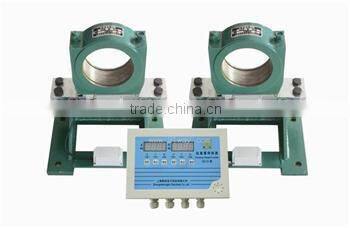

DLC118 lifting weight limiter, automobile examination load cell

Model: DLC118 Category: Bridge Load Cell Range: 1t, 2t, 3t, 4t, 5t, 10t, 20t Dimension: 3507556/41010056mm Material:Alloy steel,stainless steel Application: lifting weight limiter, automobile examination Characteristic: lifting weight sensor,Lifting weight limiter sensor

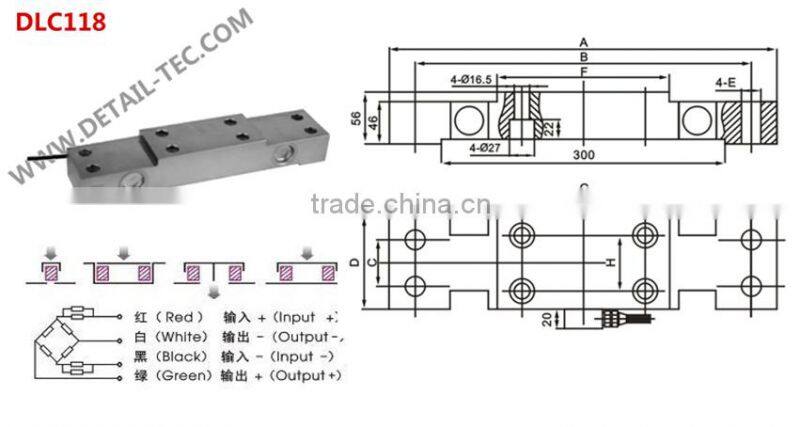

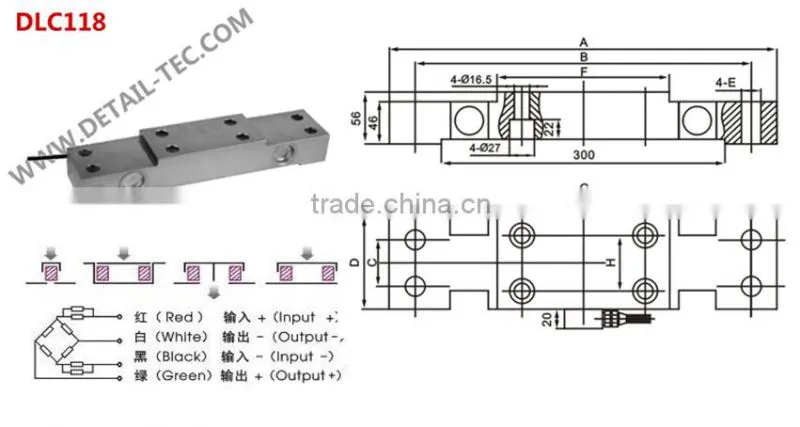

PIC REF
other dimension
LOAD	A	B		C	D	E	F	G		H	J
1.5	350	310		38	75	D18	151	100		40	D17.5
1.5/DQ85	350	300		49	75	D22	151	100		40	D17.5
2.5	410	355		50	100	21.5	181	130		60	D17
4-10	410	355		50	100	21.5	211	160		60	D17

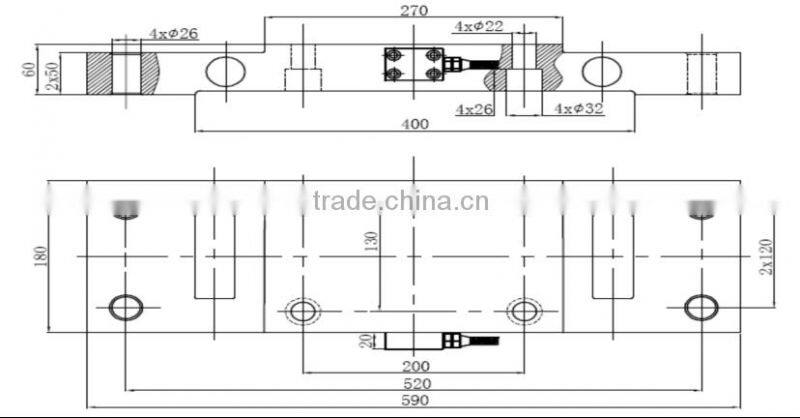

Drawing of DLC118-20T, please contact detail tech for more information. Specification
comprehensive error:			0.2%FS			output resistance:			702±5Ω
Rated output:			1.2±0.005mv/v			Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:			0.05%FS			Excitation voltage:			9~12VDC
Hysteresis:			0.05%FS			compensated temp:			-10~+40℃
Repeatability:			0.03%FS			use temperature:			-20~+55℃
Creep:			0.03%FS/10MIN			temp effect on zero:			0.05%FS/10℃
Zero balance:			±1%FS			Temp effect on span:			0.05%FS/10℃
Input resistance:			750±10Ω			defend grade:			IP66 & IP68
