Home > Electrical & Electronics > Sensor > Pressure Sensor > Fiber Optic Amplifier FF-303

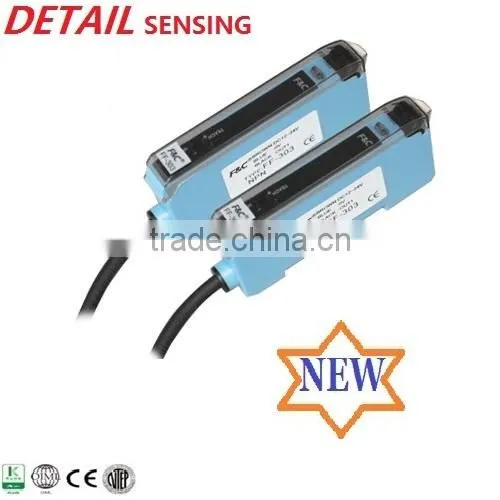

Fiber Optic Amplifier FF-303

US$ 24 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Model Number:

FF-303

Contact Supplier Request Quote Chat Now

Hunan Detail Sensing Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number FF-303

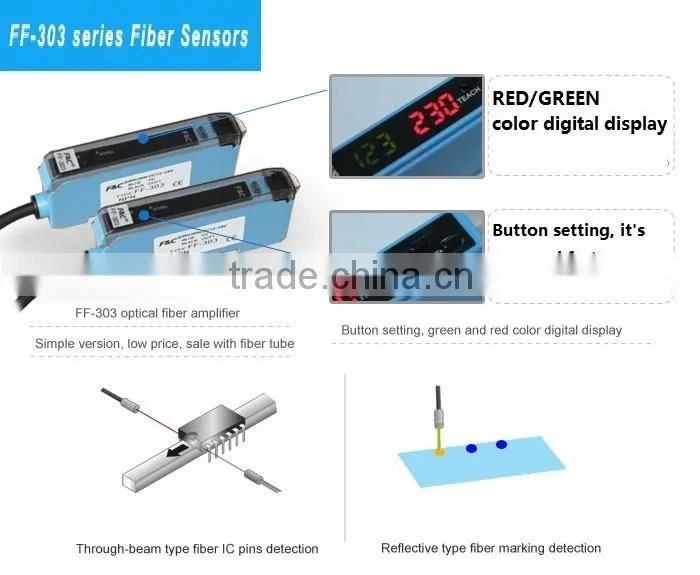

Fiber Optic Amplifier FF-303

Features

Fiber amplifier-FF-303 series (digital display, simple designed type):

Double 8bit digital display, green and red,
green one is set value, red one is reflective value;
Very easy for using and adjusting
Better price, high sensitivity.

Specifications

Light source	Red		Green

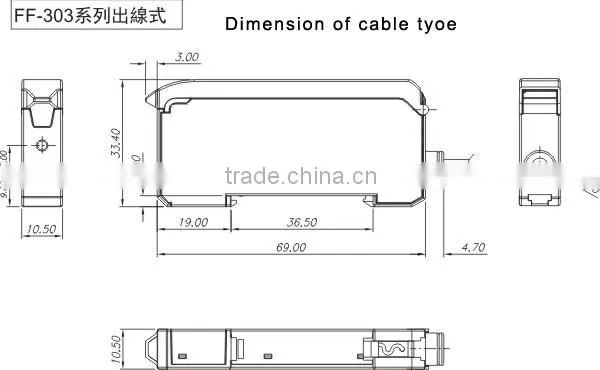

Cable type	FF-303 (npn) FF-303P (pnp)		FF-303G (npn) FF-303GP (pnp)
M8connector	FF-303D (npn) FF-303PD (pnp)		FF-303GD (npn) FF-303GPD (pnp)
Working Voltage	12~24VDC±10% P-P >10%
Current consumption	400mA Max.
Loading current	100mA Max.at DC24V

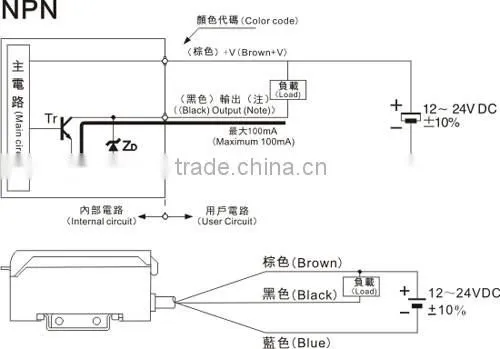

Output mode	NPN Open collector transistors	PNP Open collector transistors
	NPN Open collector transistors	PNP Open collector transistors
	Max input current:100mA	Max output current:100mA
	voltage:30VDC	voltag:30VDC
	Residual voltage:1.0VDC below	Residual voltage:1.0VDC below
	0.4V below(current at 16mA)	1.0V below(current at 16mA)
	Operation output: normally open or normally close, can be set by pressed the button.
	Short circuit protection: Yes
Self diagnosis	Instability detection output when on, the signal last 40ms (cut off the output automatically when output short circuit protection signals continued to short-circuit the disarmament)
Response time/frequency	Universal:switch frequency: 1KHz,response time:500μs
Detection distance	red light source		reflective:200mm(1mm diameter fiber core )
			through beam:1200mm(1mm diameter fiber core)
	green light source		reflective:700mm(1mm diameter fiber core)
			through beam:400mm(1mm diameter fiber core)
Indicatior LED	output:(red) stable:(green, please keep this LED non-flashing)
Time delay function	5ms/50ms/500ms/5s/0s,five choice of setting by button.
Transmission power	100% / 50% / 25% / 12% Transmitter power can be set in different percentage.
Ambient temperature	-20 ~ +70°C
Environment humidity	35 ~85%RH
Material	Shell: PC+ABS;Cover: Polycarbonate
Annex	(Mounting bracket): 1pc
