90W LED Moving Head Light

Specifications

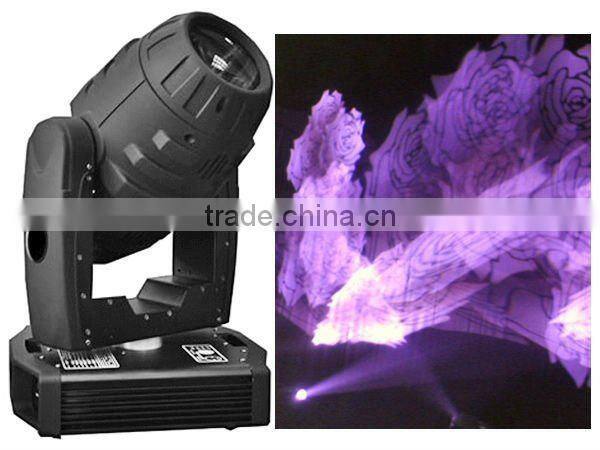

LED moving head light

LED moving head light adopts LED light source, can create a very sharp beam and clear images, as well as a variety of shapes. The series include 50W LED moving head light and 90W LED moving head light.

M-LS090

²        Power Supply: AC100V~240V, 50/60Hz

²        Power Consumption: 200W max

²        Light Source: 90W White LED

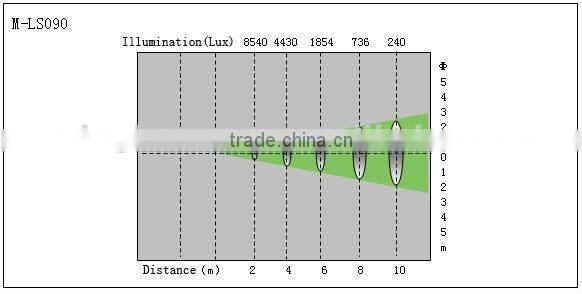

²        Illumination intensity: 20,000LX@Lm

²        Color wheel: 7 colors plus white by Hall positioning, with rainbow effect, color wheel forward and reverse rotation available

²        Gobo Wheel: 7 rotating Gobos plus white by Hall repositioning, with shaking function, speed adjustable, Gobo wheel & Gobo forward and reverse rotation available, speed adjustable

²        Prism: 3-facet, bi-direction and speed adjustable

²        Focusing: independent linear adjustment

²        Dimmer: 0~100%, linear adjustment

²        Strobe: variable strobing 1~15 flash per sec, build-in strobe macro-function

²        Reset function: independent repositioning channel, can be reset for every chip individually)

²        X/Y Movement Range: Pan 540°, Tilt 280°by Hall repositioning, with Pan/Tilt position correction, X/Y movement speed adjustable

²        16 bit Pan/Tilt movement resolution

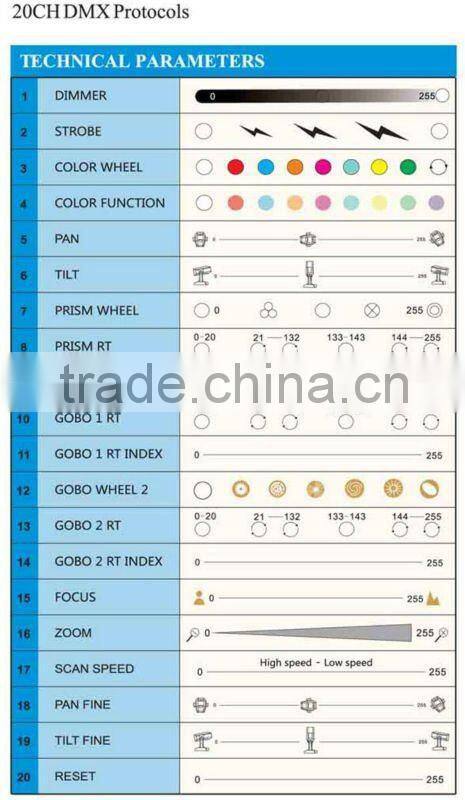

²        Control Channels: 20CH

²        Control Signal: DMX512

²        LCD Display: displaying brightness adjustable (10-100%), back-light function and can be activated when press any buttom

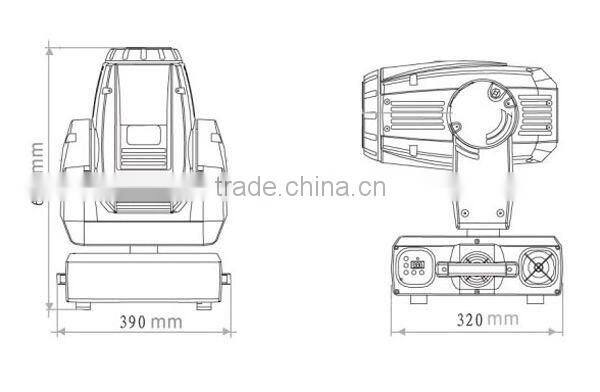

²        Dimension:505mm×490mm×630mm

²        Net Weight: 13.6kg

²        Material: flame retardant plastics

²        Light source useful life: Ave 100,000 hrs

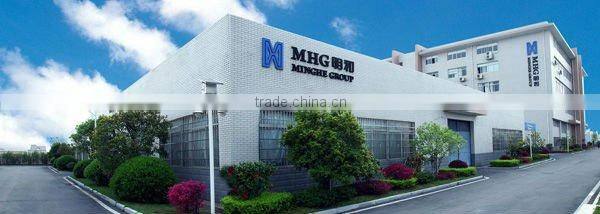

About MingHe

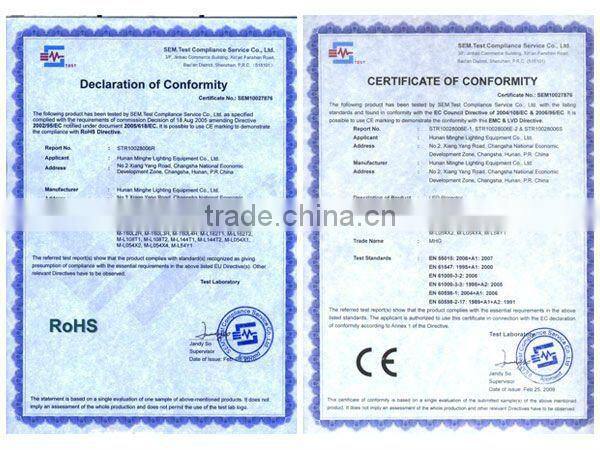

MingHe(MHG) is a professional manufacturer of LED display,stage lighting. All of our products passed the  ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications. it is established in 2001, the member of China Entertainment Association.
