575W stage moving head light

Specifications

MSR 575W/2 spot
14CH/ 16CH
Motorized Multi-Step-Zoom
CE & ROHS
inside prism macro-function

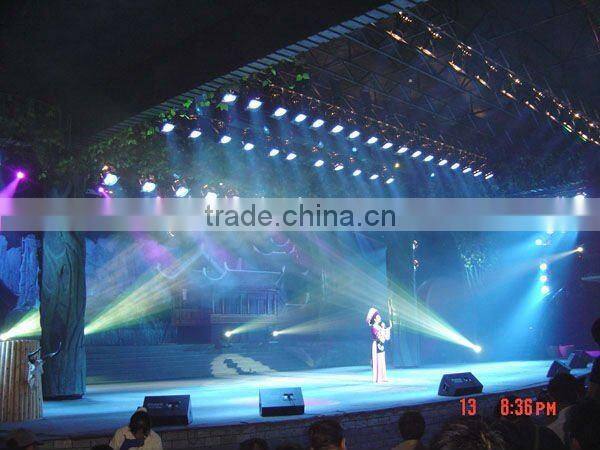

The stage moving head light can be used wherever there is a need for powerful lighting which must be capable of rapid and extreme changes of mood and effects.

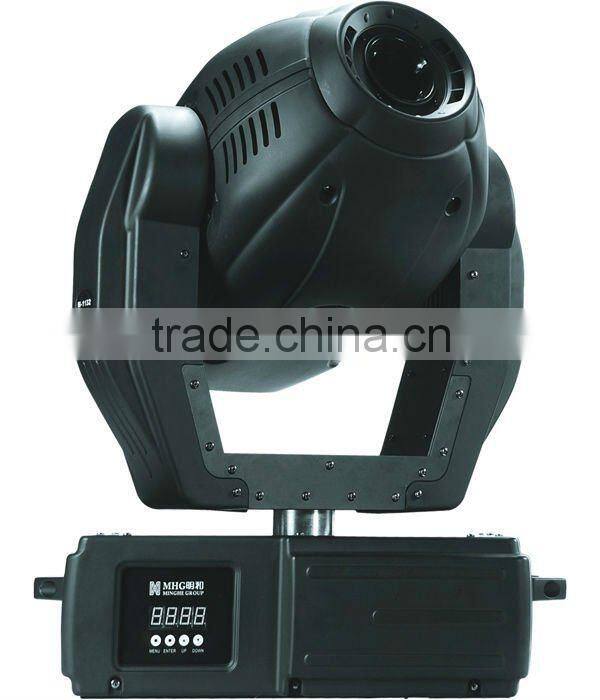

575W stage moving head light  M-2132

• Light Source: MSR575W/2 discharge lamp, 750h life
• Power Consumption: 800W
• 2 separate color wheels
• Color Wheel 1: 9 colors plus white and rainbow effects
• Color Wheel 2: 6 colors plus white, 5600K and 3200K CT, UV filter
• Motorized Multi-Step-Zoom with three different apertures: 15°, 18°and 22°
• Gobo Systems:
• Gobo 1: 9 Gobos plus white and shake function, speed adjustable, Gobo with flow effects;
• Gobo 2: 6 dismountable Gobos plus white, flow effects, forward and reverse rotation available;
• Prism: rotating triple prism, speed adjustable, inside prism macro-function;
• Inside electronic iris with 0~100% linear adjustment
• Strobe: variable strobing 0-10 flash per sec, inside strobe macro-function;
• Repositioning: Remote repositioning through controller;
• XY movement range: Pan 530°with 16 bit resolution, Tilt 280°with 16 bit resolution, automatic Pan/Tilt Position
• Correction, XY movement speed adjustable;
• Control Signal: DMX512, 3-pin XLR IN/OUT
• Control Channels: 14CH/16CH
• LED display, both sides displayable, displaying brightness adjustable
• Dimension: 500mm×400mm×670mm
• Net Weight: 33Kg
• Protection Rate: IP20
• Color temperature: 7200K
