Specifications
DMX512 lighting controlfor 40 units with a max.
36 channels each
DMX lighting control is a kind of efficient consoles which is adapted to much kind of lights like moving head light, digital light, and traditional stage light. It is with very stabile quality and convenient operate, could control infinite preset, scene, special effects and programs.

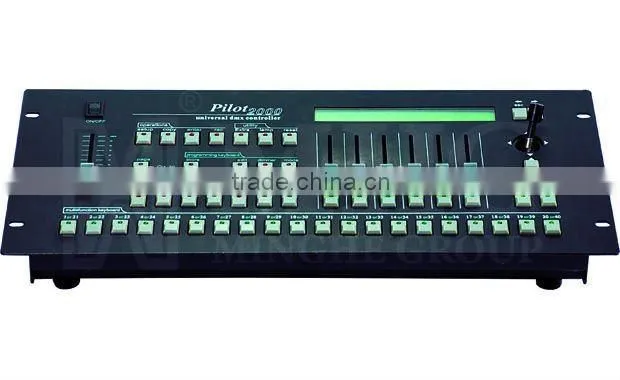

| DMX512 Control Console PILOT-2000 Technical Data |
| Universal DMX controller for 40 units with a maximum of 36 channels each. |
| Constant monitoring of output parameters due to a large back-lit display. |
| Using the Scroll function, operators can control blocks of 6 channels at a time. |
| With the (editable) internal libraries, it’s possible to assign functions to the faders at will: physical and logic channels are independent. |
| 40 chases - Programs - Presets - Psychos. |
| The section dedicated to scanners and moving head fixtures has a twin co-ordinate system: absolute and relative. This ensures perfect fixture positioning. |
| Pilot 2000 can be mounted in a standard 19" rack (5 units), but can also be used as a desk-top unit. |
| DMX in/out connector, SMPTE socket for changing memories in sync, independent regulation of scene and preset crossfade times. |
| Audio input and built-in microphone for music sync functions. |
| MIDI in/thru/out connector. |
| Data and memories can be downloaded to a PC. |
| Jack socket for pedal for stepping up/down through memories. |
| Universal AL4 switching power supply included. |
| Dimension: 75mm×482mm×222mm |
| Net Weight: 4kg |
Workshop
About MHG
Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.
And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
