sharpy beam moving head light

Specifications

sharpy 5r beam moving head light
CMY color system
2 gobo wheels, 2 color wheels
IP20, CE & ROHS
ballast with auto energy sa

Light source: PHILIPS MSD 1200SA,

working hour: 750 hours, lamp houlder G22



input voltage: eletric ballast version: 00v / 120v / 200v / 220v / 230v / 240v AC, 50 / 60HZ; magenetic ballast version: 220V AC, 50 / 60HZ, (200/ 230/ 240x ac, 50 / 60HZ available)



power comsumption: electric ballast version: 1500w @220v

                                        magnetic ballast version:1600w @220v



color wheel:

CMY color mixing system with macro instruction function 1 color wheels: with 6 replaceable colors plus white and half color, bi-direction rainbow effects available

Step/linear color diffusion selectable, auto function, sound active function

Color wheel outside dimension: 41.8mm



CTC:0~100% linear cooling system



Gobo: 2 rotating gobo, with 6 replaceable gobos plus white, glass gobo and metal gobo installable, bi-direction adjustable, indexable, shake function/ bi-direction flow effects adjustable, auto function, sound active function

gobo wheel outside dimension: 37.3mm

gobo effective dimension: 31.5mm



prism/ effective disk: 1 effect disk, 4 replaceble prism plus white,

indexable, auto function, sound active function

prism outside dimension: 46.8mm



soft ligth/ frost: soft light 0~100% linear adjustment

zoom: DMX linear focusing

beam angle: 14~42° linear adjustable

dimmer: 1~100°linear adjustable

strobe: dual-plate strobe

variable strobing 0.3~15 flash per sec, inside strobe macro-cunction

XY movement range: pan 560°, tilt 280°

automatic pan/ tile correction, blackout movable

control signal: DMX512, 3-pin or 5-pin XLR IN/OUT

self test mode: self-test program editable

pan, tile CMY , and dimmer speed adjustable

LCD display, displaying brightness adjustable (0~100%)

working hour and bulb control mode selectable

ballast with auto energy saving

and transducer malfunction diagnosis system

housing: high intensity and heat resistant complex plastic

protection grade: IP20

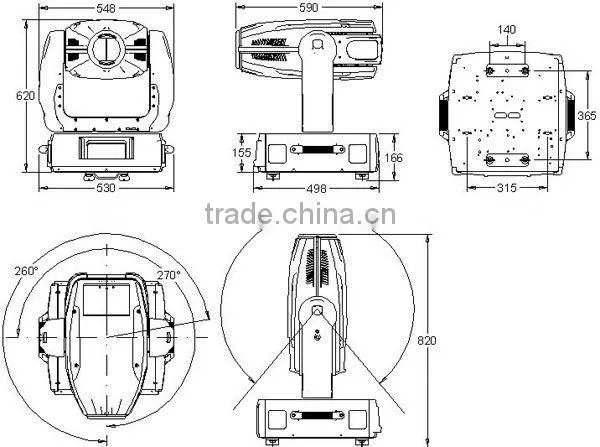

dimension: 640mm X 550mm X 880mm

net weight: electric ballast version: 40 kgs

                     magnetic ballast version: 51.5kgs

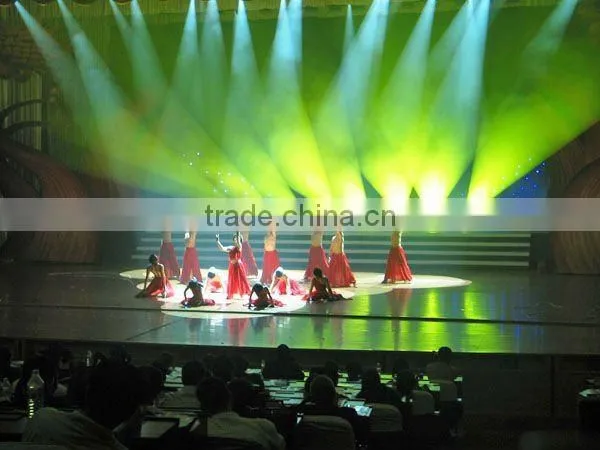

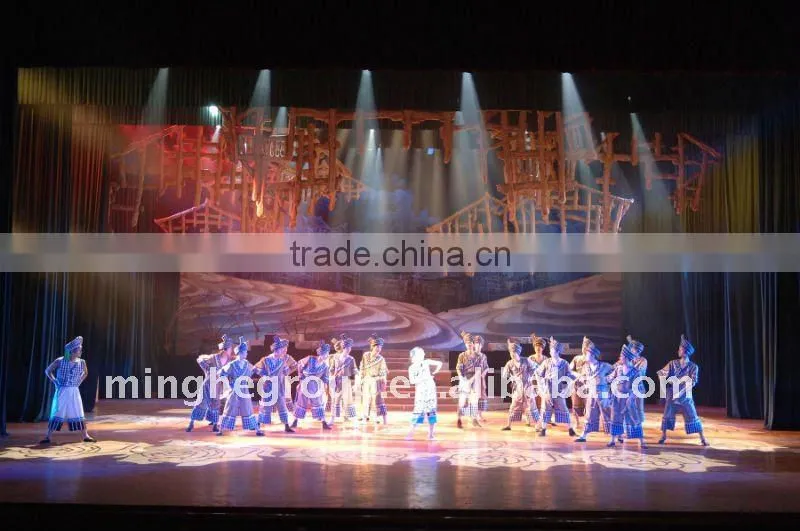

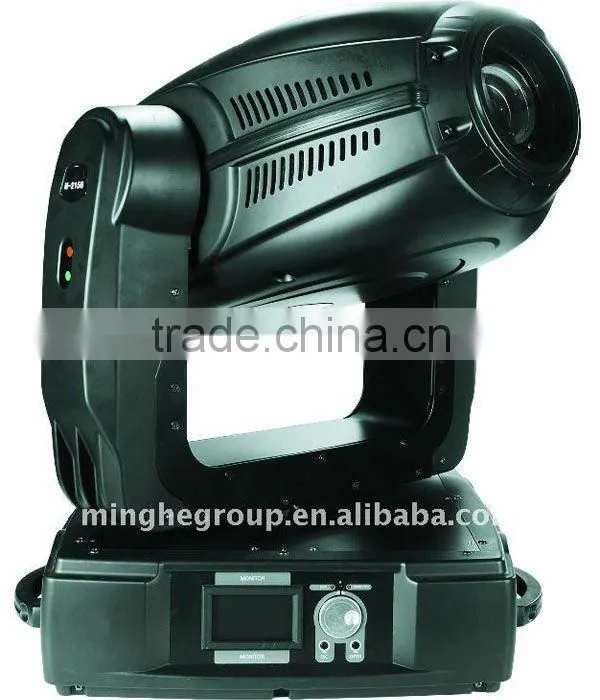

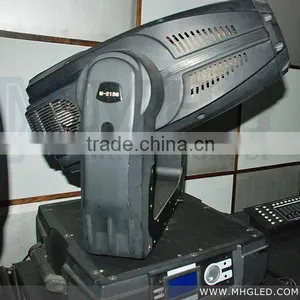

Detail pictures:

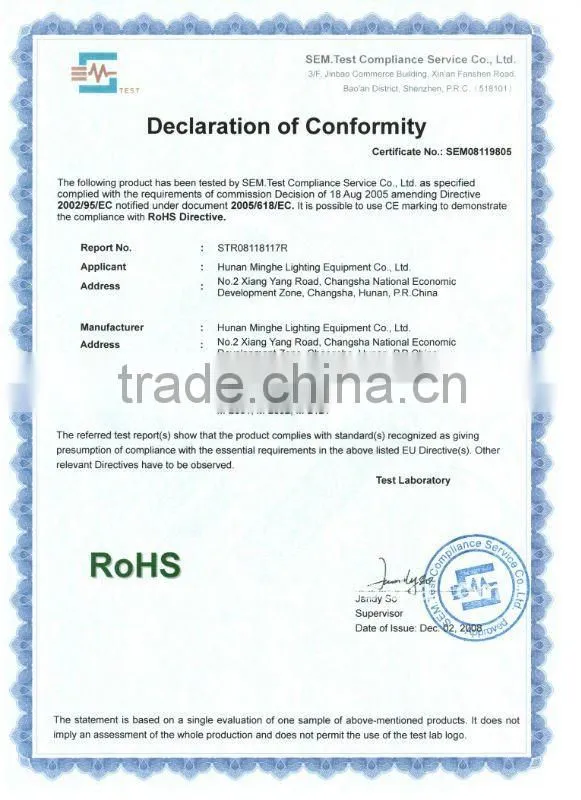

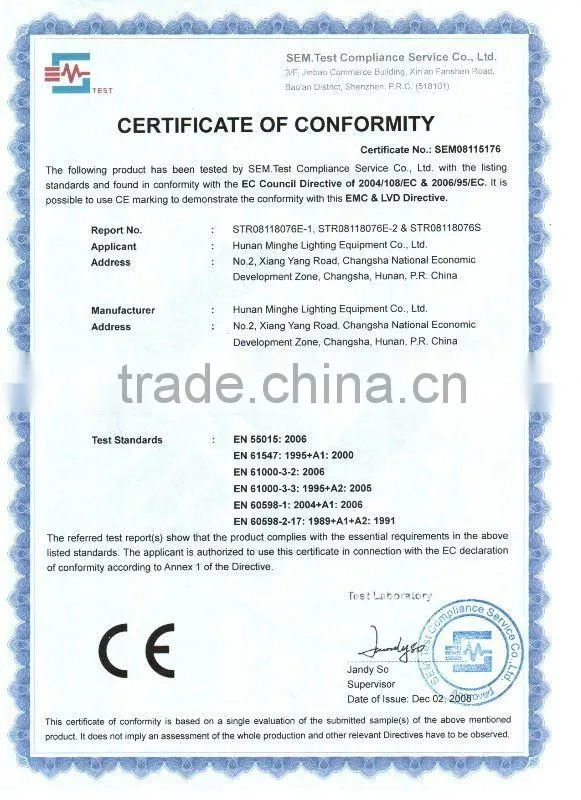

CE & ROHS certified:
