led moving head spot light disco light

Specifications

led moving head spot light
24CH 1200w SPOT digital moving head
2 color wheels, 2 gobo wheels
with flightcase
CE & ROHS

Light source: HMI 1200W /D7 /D6, or CSR 1200SA, 750h

Power supply: AC220v~230v, 50 / 60HZ

Control channels: 24CH

 power consumption: electric ballast version: 1500w @220v

                                    magnetic ballast version:1600w @220v

 color wheel: 2 color wheels: with 7 replaceable colors plus white and half color, bi-direction rainbow effects available, Step/linear color diffusion selectable, auto function, sound active function

Gobo: 2 gobo wheel with 4 replaceable gobos plus white, glass gobo and metal gobo installed, bi-direction adjustable, shake effects, auto function, sound active function

Metal gobo outside dimension: 64mm

Glass gobo outside dimension: 54mm

prism/ effective disk: 1 effect disk, 4 replaceable prism plus white, bi-direction flow effects available;

prism outside dimension: 54mm

 soft light / frost: soft light 0~100% linear adjustment

zoom: DMX linear focusing

beam angle: 16~26° linear adjustable

Iris: unique iris effects

dimmer: 1~100°linear adjustable

strobe: dual-plate strobe

variable strobing 1~14 flash per sec

XY movement range: pan 560°, tilt 280°

automatic pan/ tile correction, blackout movable

control signal: DMX512, 3-pin or 5-pin XLR IN/OUT

self test mode: self-test program editable

pan, tile CMY , and dimmer speed adjustable

LCD display, displaying brightness adjustable (0~100%)

Buildi-in program available

housing: high intensity and heat resistant complex plastic

protection grade: IP20

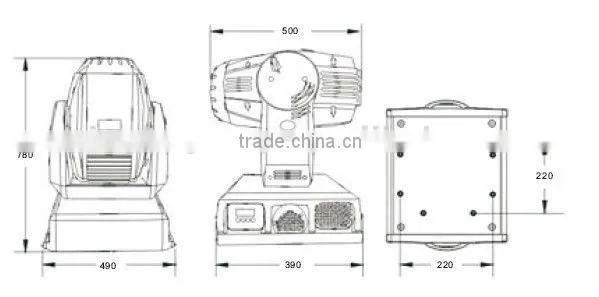

dimension: 500mm X 505mm X 765mm

net weight: electric ballast version: 44 kgs

                   magnetic ballast version: 58kgs

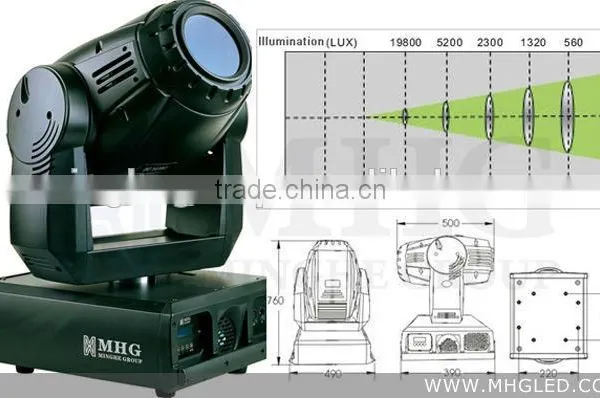

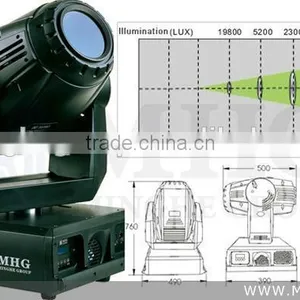

Detail photo:









CE & ROHS certified:





About us:

Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 produce lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.



And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.



Based on innovative technology & HR oriented service tenet, we will keep on innovating to meet the ever-changing market, and we will keep on cooperating with our customers with faith and dedication to build up a brilliant and splendid stage life together.
