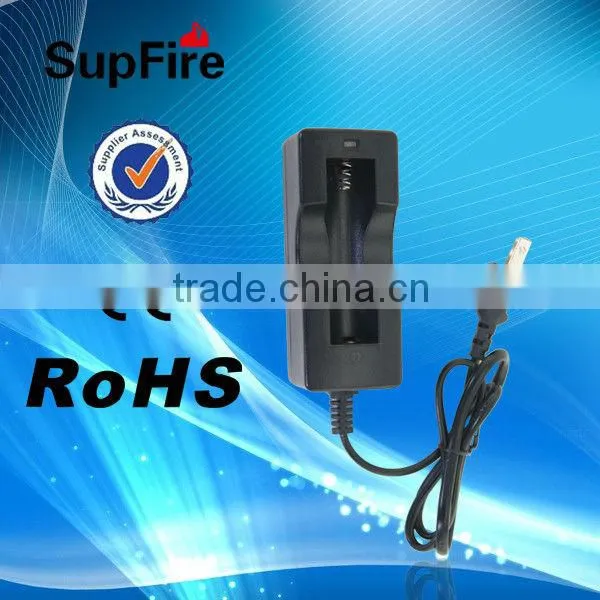

Help CenterSupfire Anti-reverse 18650 Single Charger
Related Products
-
EU Charger for 1*18650 BatteryUS$ 1.42 - 2.84MOQ: 1 Piece -
EU 18650 Lithium-ion Battery Single ChargerUS$ 1.42 - 2.84MOQ: 1 Piece
-
18650/16340/CR123A Battery ChargerUS$ 7 - 13.17MOQ: 100 Pieces
-
Newest 18650/16340/CR123A/26650 Battery USB ChargerUS$ 1.17 - 2.33MOQ: 100 Pieces
-
Battery Charger AC21US$ 9.84 - 13.17MOQ: 100 Pieces
Specifications Dimensions
Length 105MM * Width 40MM * height 35MM
Input characteristics
AC input voltage :100-240VAC
AC input frequency: 50/60HZ
AC input current: <= 100mA
Output characteristics
Output charging voltage: DC DC4.15 to 4.25 (reference value)
Charging characteristics (following electrical parameters of the test environment temperature -10 ° C to +55 ° C)
Charging current: DC DC600mA ± 50mA (reference value)
Charging method:
This charger must under in charging process to maintain constant current followed by constant voltage way.
Charging indicator:
Not charged (no load), charger power indicator LED green;

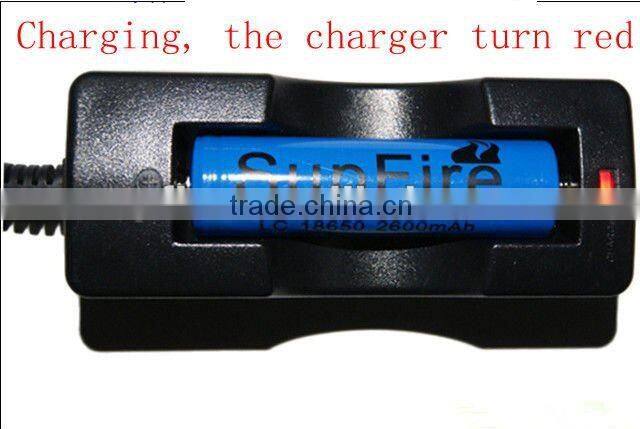

Being charged, the corresponding power indicator LED is red;
When charging is completed, the corresponding power indicator LED is green;
Safety Certification:
This product has passed CE certification
Voltage test:
At the temperature of 15 °C ~ 35 °C, relative humidity of 45% to 75% of the environment
The charger can withstand the pressure test of the AC3500V/1S test is as follows:
AC DC (AC3KV) no arcing, breakdown phenomenon, and leakage current of less than 10mA
AC shell (AC3KV) no arcing, breakdown phenomenon, and leakage current of less than 10mA
5.0 Noise
Within a distance of one meter, audio noise should be less than 40dB.
Note
Please use the indoor and dry place.
Non-professional pers do not open.
Do not charge the non-secondary lithium battery and bad battery
