Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Audio & Video Cable > 4K x 2K HDMI 1x2 Splitter

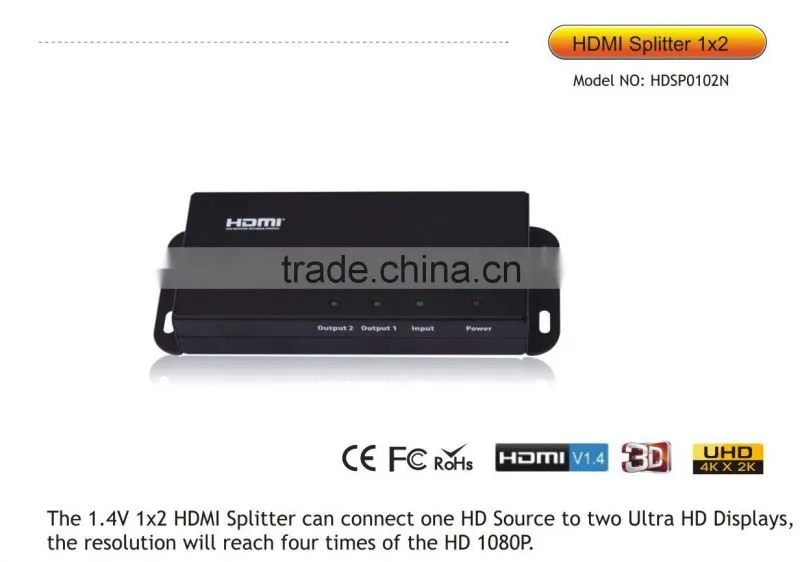

4K x 2K HDMI 1x2 Splitter

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

ASK

Model Number:

HDSP0102N

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen ASK Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen or hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name ASK

Model Number HDSP0102N

Place of Origin Guangdong, China

Specifications

The splitter that support Full 3D,4k*2k.

**1.4V 12 port HDMI splitter with 4K2K Supported**

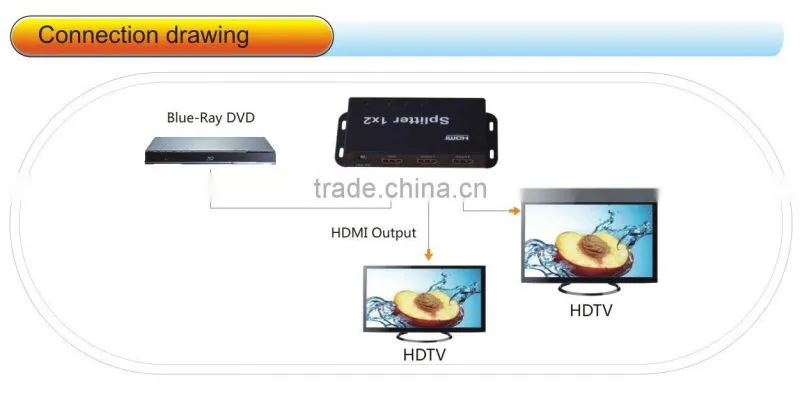

The 1x2 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Specifications

Model	HDSP0102N
HDMI Version	HDMI 1.4a
HDMI Resolution	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format	24bit/deep color 30bit,36bit, 48bit
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth	340MHz
Max baud rate	10.2Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Input cable distance	≤15m AWG26 HDMI standard cable
Output cable distance	≤20m AWG26 HDMI standard cable
Max working current	1000mA
Power adapter format Input	AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	110X52X20(mm)
Weight	141g
