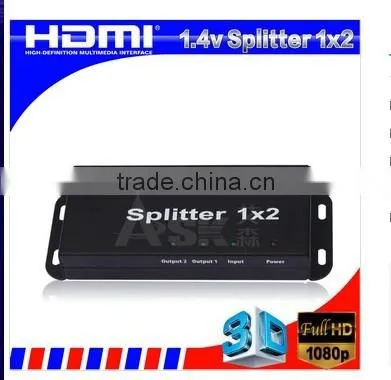

Help Center4K x 2K HDMI 1x2 Splitter
Related Products
-
HDMI Splitter 1x8 Support 4K X2KNegotiableMOQ: 200 Sets -
Hdmi Splitter 1 to 16 With 4K*2KNegotiableMOQ: 5 Sets
-
4kx2k 4 Port HDMI Amplifier Splitter 3D Support Deep Color 48bit - Factory OEM/ODM -NegotiableMOQ: 200 Sets
-
HDMI Splitter 1 to 4 Factory OEM/ODMNegotiableMOQ: 200 Sets
-
8-port Hdmi Splitter for 1.4vNegotiableMOQ: 200 Sets
Specifications
Support signal retimingNo loss of quality
Installs in minutes
Need DC5V/2A power supply

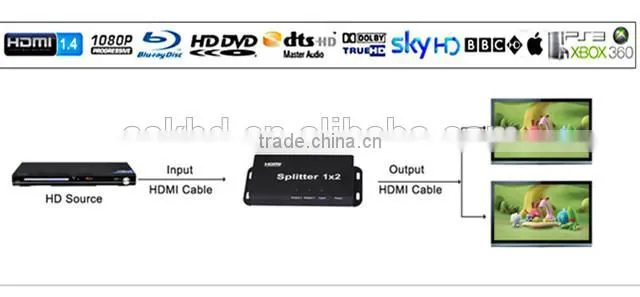

The 1x2 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to twoHDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments
FEATURES
lOne HDMI input signal split to eight HDMI sink devices
lSupport 3D
lSupport CEC
lSupport deep color 30bit, 36bit
lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC
lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
lSupport signal retiming
lSupport input up to 15metres AWG26 HDMI standard cable length,
output up to 25metres AWG26 cable length
lNo loss of quality
lInstalls in minutes
lNeed DC5V/3A power supply
FEATURES
lOne HDMI 1.4a input signal split to two HDMI 1.4a sink devices
lSupport 3D
lSupport 4K*2K resolution
lSupport CEC
lSupport deep color 30bit, 36bit, 48bit
lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC
lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
/DSD/HD(HBR)
lSupport signal retiming
lSupport input up to 15metres AWG26 HDMI standard cable length,
output up to 20metres AWG26 cable length
lNo loss of quality
lInstalls in minutes
lNeed DC5V/2A power supply
SPECIFICATIONS: HDSP0102N
HDMI version…………………………………………….……………………………….. HDMI 1.4a
HDMI resolution ………………………........24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………………..……. 24bit/deep color 30bit,36bit, 48bit
Support audio format………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth………………………………………………………………………………..340MHz
Max baudrate……………….…….………………….……………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..……......… 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ………………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... …………….…………………….≤15m AWG26 HDMI standard cable
Output cable distance…………………………………..…...≤20m AWG26 HDMI standard cable
Max working current……………………………………………………………………….....1000mA
Power adapter format..Input: ………………...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A
Operating Temperature range……..…………….…………………………………… (-15 to +55°C)
Operating Humidity range………………………….….………….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….………………….…………110X52X20(mm)
Weight…..………………………………………………………..…….…..………………………141g
