Specifications
1.Support Full HD, Full 3D2.Support 4K*2K resolution
3.Support CEC
4.Need DC12V/3A power supply
5.Weight 871g

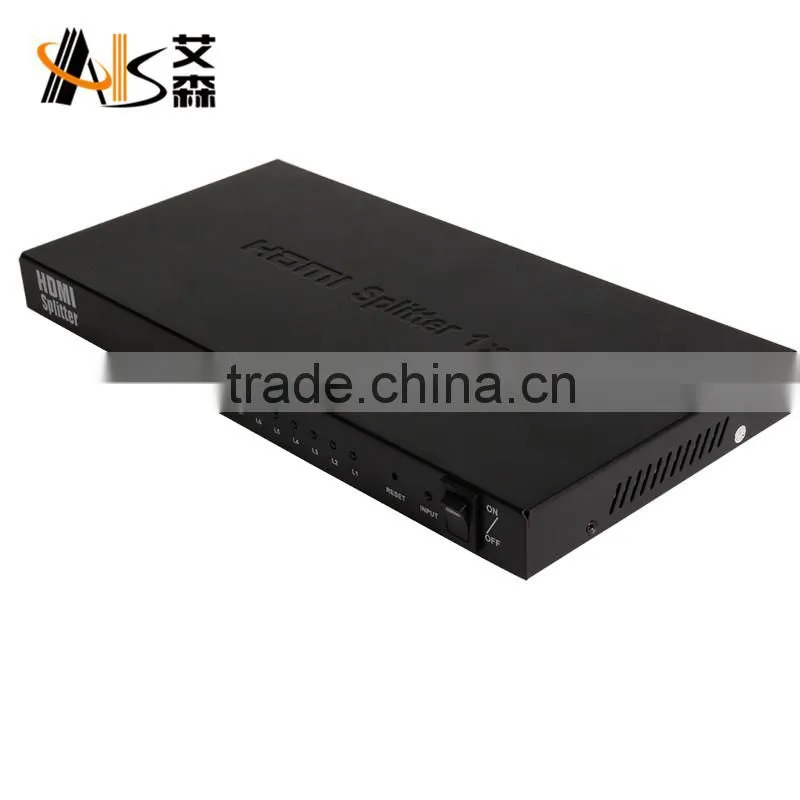

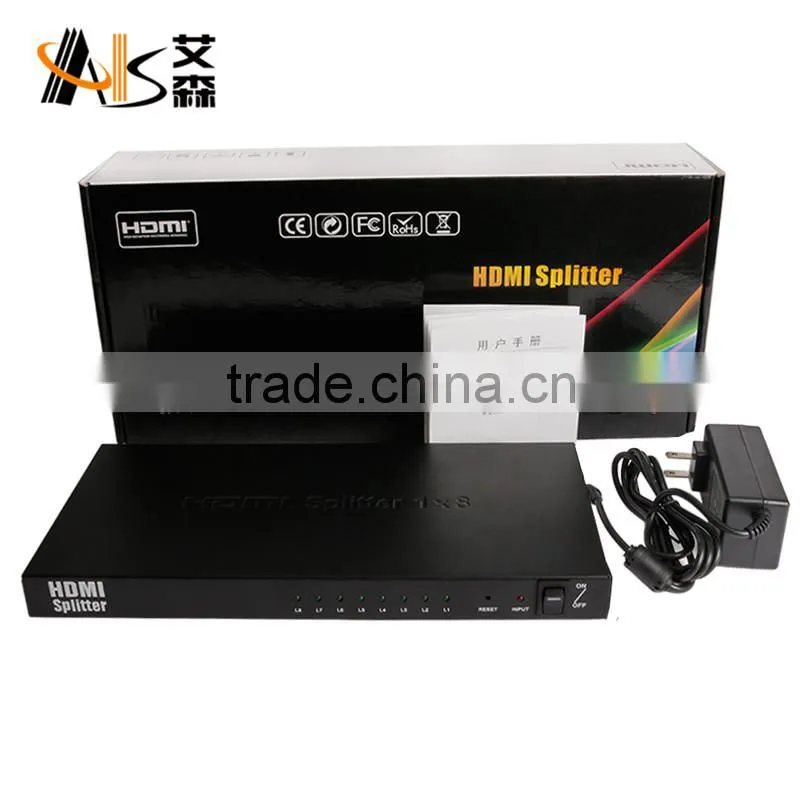

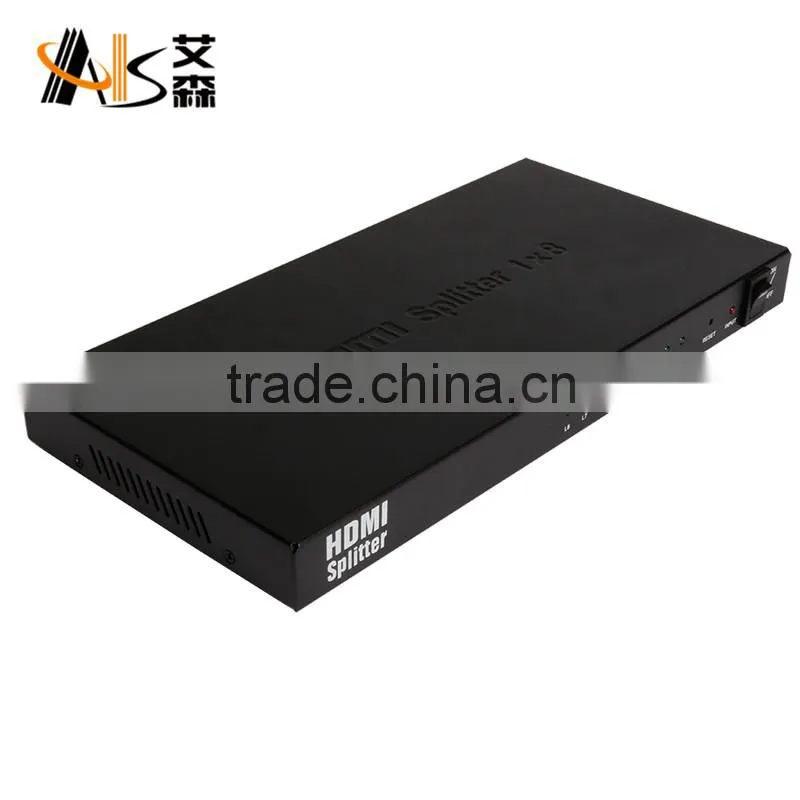

1x8 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to
eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a
long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
l One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
l Support Full HD, Full 3D
l Support 4K*2K resolution
l Support CEC
l Support deep color 30bit, 36bit, 48bit
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
/DSD/HD(HBR)
l Support signal retiming
l Support input up to 15metres AWG26 HDMI standard cable length,
output up to 20metres AWG26 cable length
l No loss of quality
l Installs in minutes
l Need DC12V/3A power supply
SPECIFICATIONS: HDSP0108N
HDMI version………………………………………….. HDMI 1.4a
HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………...24bit/deep color 30bit,36bit, 48bit
Support audio format…….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………………………………….340MHz
Max baud rate……………………...10.2Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………. 5Volts p-p (TTL)
Input cable distance..…... ≤15m HDMI AWG26
Output cable distance……………………………...≤20m AWG26 HDMI standard cable
Max working current……………………………….... 2A
Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
Operating Temperature range……. (-15 to +55°C)
Operating Humidity range…………………………..5 to 90%RH (No Condensation)
Dimension (L x W x H)……………………………….. 280X138X25(mm)
Weight…..871g
