Help CenterHDMI Audio Extractor With Toslink and L&R Audio
Related Products
-
HDMI TO HDMI + Audio Decoder With EDID Management for Audio FormatsNegotiableMOQ: 50 Sets -
5.1 DTS PCM SPDIF/Toslink Optical Digital Audio 3 Port SwitcherUS$ 2 - 3MOQ: 50 Pieces
-
Digital tv Analog ConverterNegotiableMOQ: 50 Pieces
-
Digital tv Signal ConverterNegotiableMOQ: 50 Pieces
-
HDMI TO HDMI + Audio Decoder 5.1/7.1/ Hdmi ManufactureNegotiableMOQ: 50 Sets
Specifications

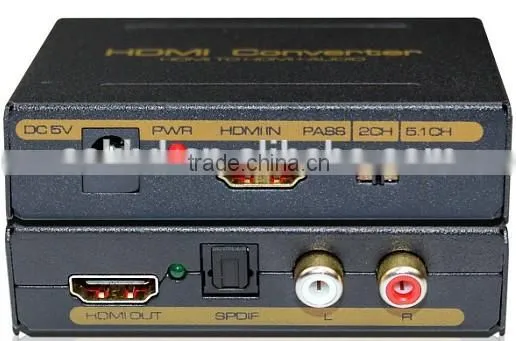

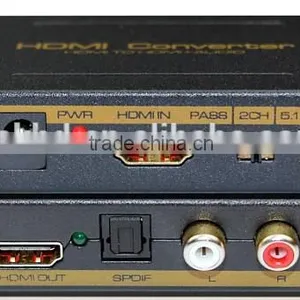

One HDMI Input to One HDMI Output, One SPDIF Audio Output and One RCA R/L Stereo Audio OutputExtract Spdif audio + Analog R/L
FEATURES
lOne HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
lOutput audio support: SPDIF+R/L analog Audio Output
lInput Resolution: up to 1080P(50/60Hz)

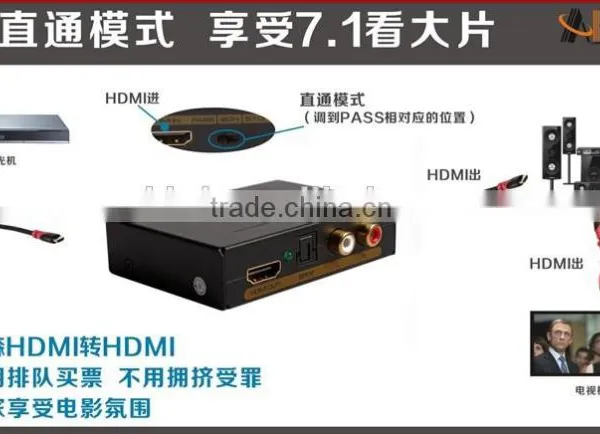

lHDMI to achieve the synchronization of audio signal separation. There are PASS /
2.0CH / 5.1CH three kinds of audio mode options
lLED indication: when source or sink is working, LED relative to is light.
lNo loss of quality
lInstalls in minutes
Need DC5V/1A power supply

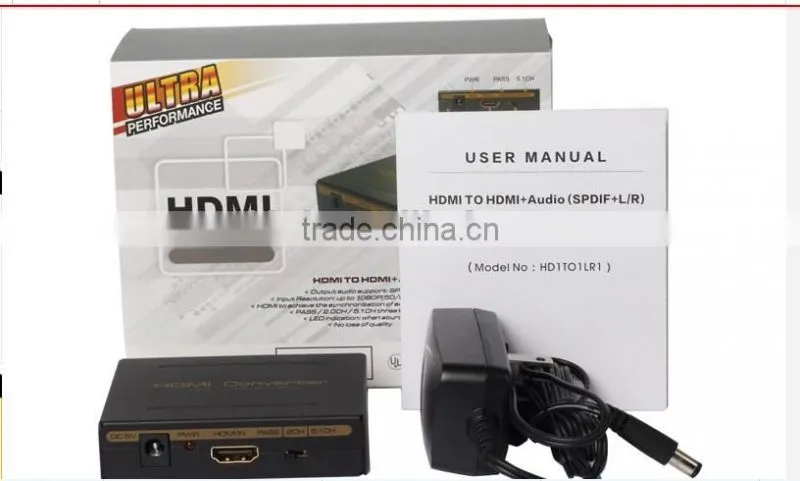

SPECIFICATIONS: HD1TO1LR1
HDMI resolution …………………………...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…..………….24bit/deep color 30bit,36bit
Audio output……………………………………………………………………………. L/R+SPDIF
Max bandwidth………………………………………………………….………………….225MHz
Max baudrate…………………….………………….………………….………………..6.75Gbps
Input/Output TMDS signal ………….……………………………….……0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ………………………. ….…..≤15m AWG26 HDMI standard cable
Output cable distance……………………………….…...≤20m AWG26 HDMI standard cable
Max working current…………………………………………………………………………500mA
Power adapter format…………….…..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55°C)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………84.5X61.8X21 (mm)
Weight…..………………………………………………………..…….……………………..…135g
