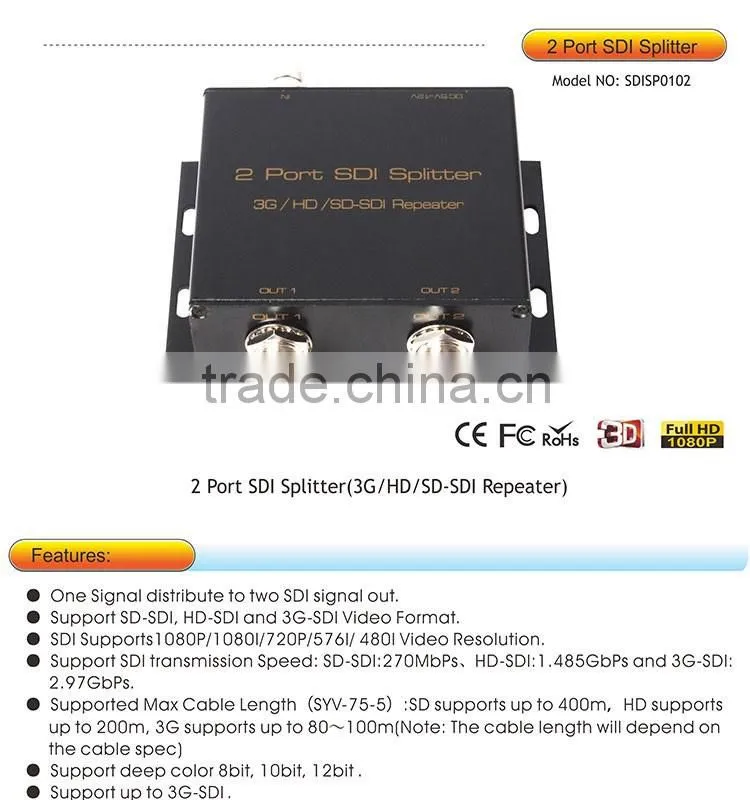

SPECIFICATIONS: … SDISP0102
Support SDI Format………………….…………………………….SD-SDI,HD-SDI and 3G-SDI
SDI resolution…………………………………………..….……...... 1080P/1080I/720P/576I/ 480I
Support video color format ……………………...…………...….……..8bit/deep color 10bit,12bit
Audio Signal……………………………………………………………………………… SDI Built-in
SDI baud rate…………………...……………………..……270Mbps,1.485Gbps and 2.97Gbps
Coaxial cable Characteristic impedanc…………………………………………………………75Ω
Max working current……………………………………………………..…………....300mA/DC 5V
Power adapter format……….…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V~12V/2A
Operating Temperature range……..…………….……….…………………………… -10 to +55℃
Storage Temperature range…………………………………………………………… -20 to +60℃
Operating Humidity range…………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range……………………………..….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….…. ………………………. 68 X93.8X28 (mm)
Weight…..………………………………………………………..………………….. ……………143g
