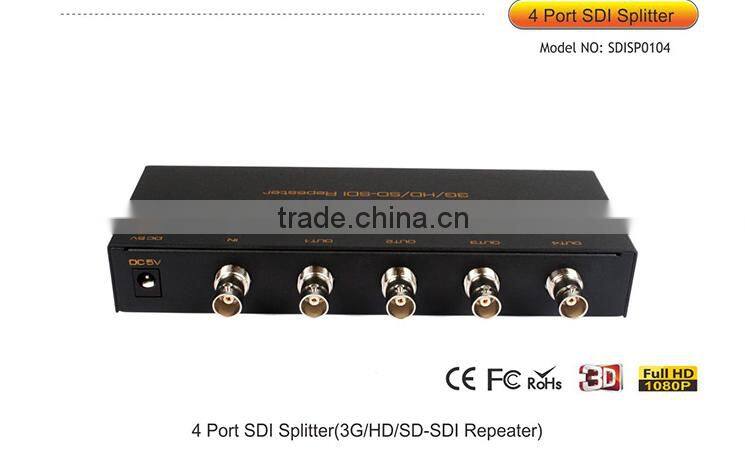

HD-SDI Splitter 1x4 with Amplifier

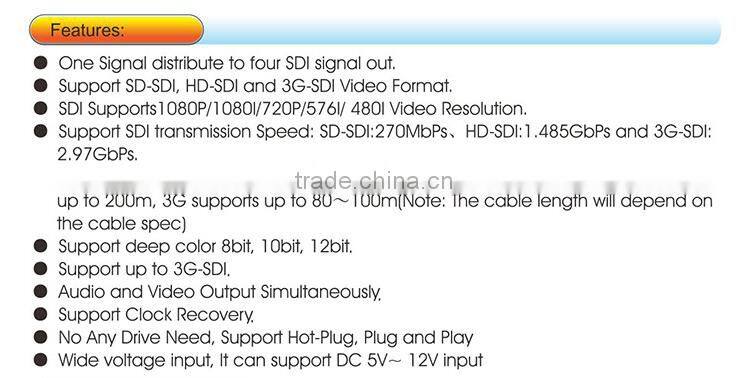

*One Signal distribute to four SDI signal out.
*Support SD-SDI, HD-SDI and 3G-SDI Video Format.
*SDI Supports1080P/1080I/720P/576I/ 480I Video Resolution.
*Support SDI transmission Speed: SD-SDI:270MbPs,HD-SDI:1.485GbPs and 3G-SDI: 2.97GbPs.
*Supported Max Cable Length(SYV-75-5):SD supports up to 400m,HD supports up to 200m, *3G supports up to 80~100m(Note: The cable length will depend on the cable spec)
*Support deep color 8bit, 10bit, 12bit
*Support up to 3G-SDI
*Audio and Video Output Simultaneously
*Support Clock Recovery
*No Any Drive Need, Support Hot-Plug, Plug and Play
*Wide voltage input, It can support DC 5V~ 12V input
SPECIFICATIONS: SDISP0104
Support SDI Format………………….……….SD-SDI,HD-SDI and 3G-SDI
SDI resolution…………………………….. 1080P/1080I/720P/576I/ 480I
Support video color format ……………….……..8bit/deep color 10bit,12bit
Audio Signal………………………… SDI Built-in
SDI baud rate………………….…270Mbps,1.485Gbps and 2.97Gbps
Coaxial cable Characteristic impedanc…………………75Ω
Max working current…………………….300mA/DC 5V
Power adapter format……….…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V~12V/2A
Operating Temperature range……..………-10 to +55℃
Storage Temperature range……………… -20 to +60℃
Operating Humidity range…………………….10 to 90%RH (No Condensation)
Storage Humidity range……….…5 to 95%RH (No Condensation)
Dimension (L x W x H)……………. 68 X93.8X28 (mm)
Weight…..……………143g
