HDMI Switcher 5X1 with remote control support DTS/Dolby-AC3/DSD

Specifications

HDMI Switcher 5X1
5x1 hdmi switcher
1.3 hdmi ,with HDCP supported
No loss of quality

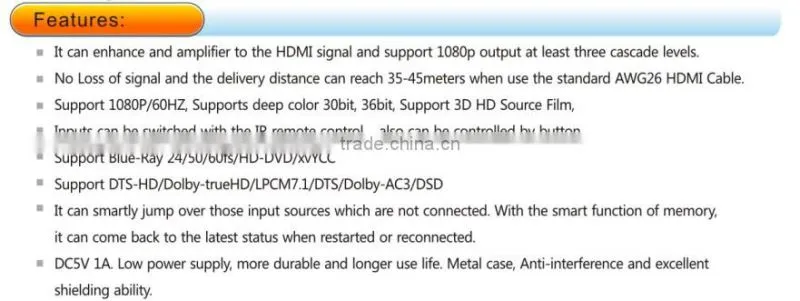

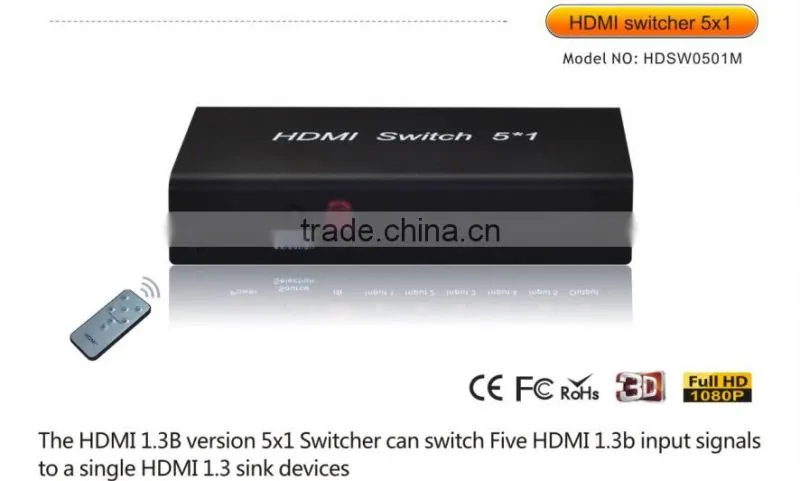

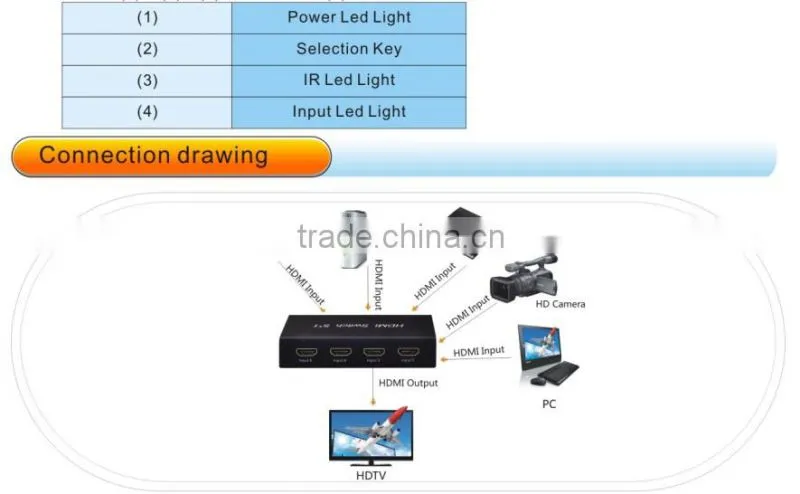

1.Five HDMI 1.3 input signals switched to a single HDMI 1.3 sink devices
2.HDCP 1.2 protocol compliant
3.Support deep color 30bit, 36bit
4.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
5.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
6.Support signal retiming
7.Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
output up to 25metres AWG26 cable length

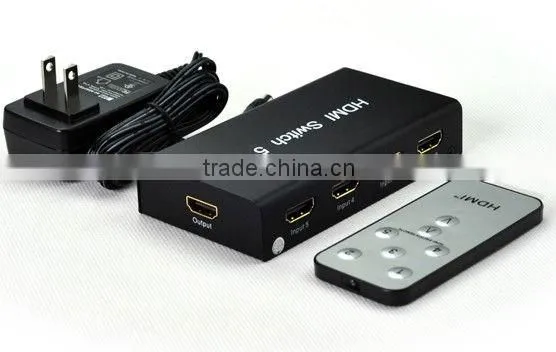

8.Inputs can be switched with the IR remote control,also can be controlled by button.
9.It can smartly jump over those input sources which are not connected.
10.With the smart function of memory, it can come back to the latest status when restarted
or reconnected.
11.No loss of quality
12.Installs in minutes
13.Need DC5V/1A power supply



HDMI version…………………………………………………………………………… HDMI 1.3
HDCP version…………………………………………………………………………....HDCP1.2
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit,36bit
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………………250MHz
Max baud rate……………….…….………………….…………………………………...7.5Gbps
Input/Output TMDS signal ………….…………………………..…………0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ……………………….……≤15m AWG26 HDMI 1.3 standard cable
Output cable distance…………………………….…...≤25m AWG26 HDMI 1.3 standard cable
Max working current………………………………………………………………………...650mA
Power adapter format..Input: ……………...AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55°C)
Operating Humidity range………………………….….…..….5 to 90%RH (No Condensation)
Dimension (L x W x H) ………………………………..………………………115x61x25 (mm)
Weight…..…………………………………………………..………………………………….190g
