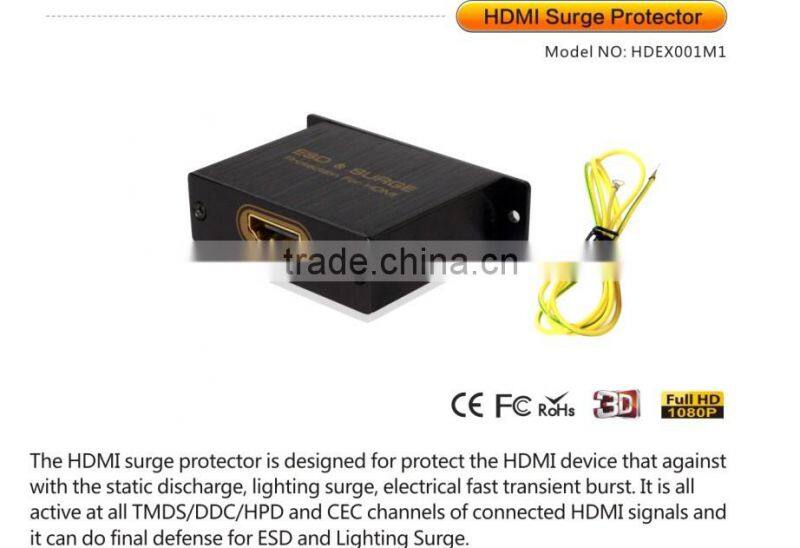

HDMI Surge Protector



  (EDS, Lightning, Surge, EFT Protection)

  Model No:HDEX001M1



The HDMI surge protector is designed for protect the HDMI device that against with the static discharge, lighting surge, electrical fast transient burst



 static protection Lightning, Surge, EFT

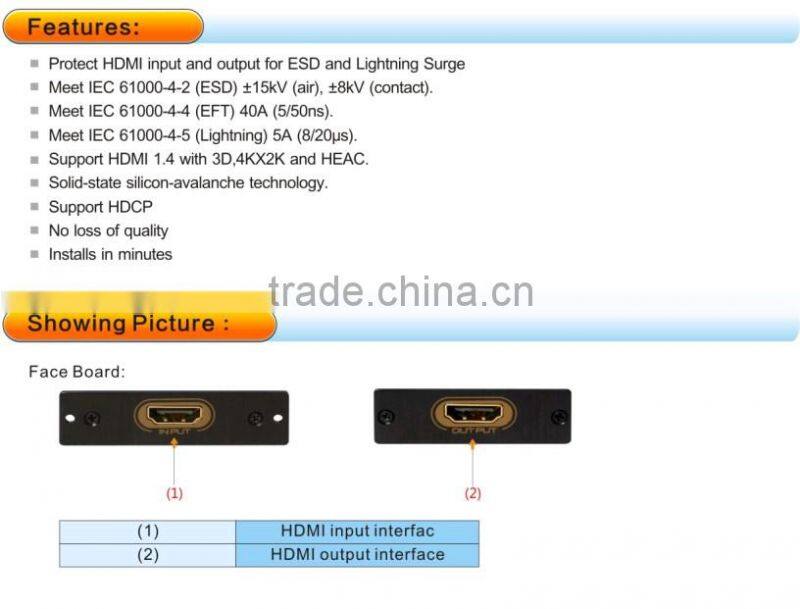

FEATURES







l Protect HDMI input and output for ESD and Lightning Surge



l Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).



l Meet IEC 61000-4-4 (EFT) 40A (5/50ns).



l Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).



l Support HDMI 1.4 with 3D,4KX2K and HEAC.



l Solid-state silicon-avalanche technology.



l Support HDCP



l No loss of quality



l Installs in minutes

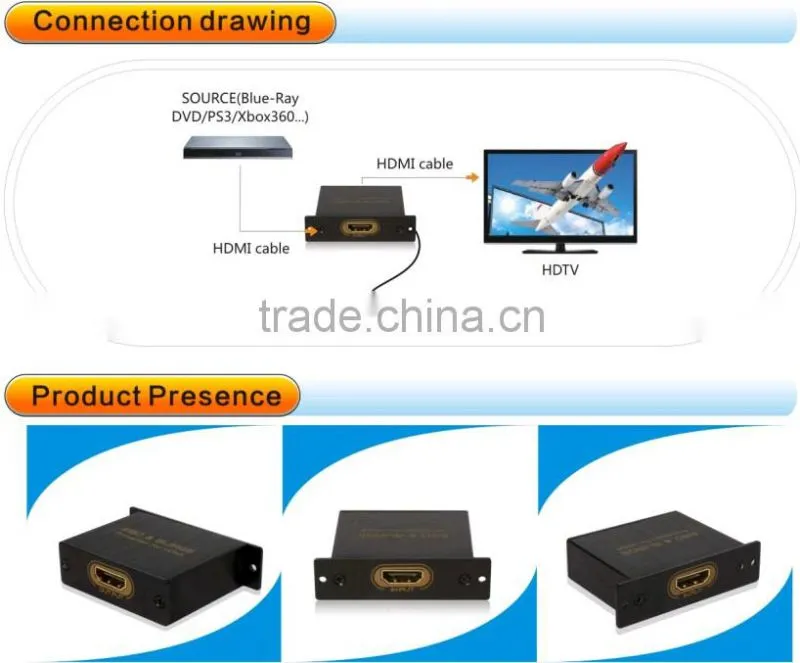

connection:



1. To connect the HD Source with the HDMI input port of the HDMI surge protector



2. To connect the HD Display with the HDMI output port of the HDMI surge protector.







 Product Specifications                                                  HDEX001M1



HDMI version………………………………………………….. HDMI 1.4 with 3D ,4Kx2K,HEAC



HDMI resolution …………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i



Support video color format ……………………...….….……..24bit/deep color 30bit,36bit, 48bit



Support audio format……..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)



Max bandwidth………………………………………………..….………………………….340MHz



Max baud rate…………………….………………….……………………………………..10.2Gbps



Input/Output TMDS signal ………….………………………..………... …..0.5~1.5Volts p-p(TTL)



Input/Output DDC signal …………………………………………..……...……… 5Volts p-p (TTL)



Max working current………………………………..……………………………………….....50mA



Operating Temperature range……..…………….………………………………… (-15 to +55°C)



Operating Humidity range………………………….….………..5 to 90%RH (No Condensation)



Dimension (L x W x H)……………………………….………………...……43.5x64x16.5 (mm)



Weight…..………………………………………………………..…….…………………..………40g
