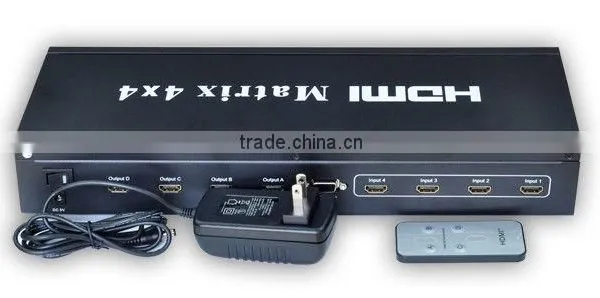

4X4 Hdmi Matrix Splitter Switcher --Top Desk Housing
US$ 135 - 150
MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
ask
Model Number:
HDMX0404N
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Review HDMI Matrix 4X4 Switcher Splitter With RS232 1080P,3D,Full HDUS$ 135 - 150MOQ: 5 Sets -
Factory Supply Directly HDMI Matrix 8X8 8 in 8 Out --Best QualityNegotiableMOQ: 20 Sets
-
V1.3 3D Remote/RS232 Control 8x8 HDMI MatrixNegotiableMOQ: 20 Sets
-
8 Input 8 Output HDMI Matrix 8x8 for V1.3, Support 3DNegotiableMOQ: 20 Sets
-
2014 New Model! HDMI Matrix 8X8 Switcher Splitter With RS232 1080P,3D,Full HDNegotiableMOQ: 20 Sets
Brand Name
ask
Model Number
HDMX0404N
Place of Origin
Guangdong, China
Specifications
HDMI True Matrix 4x4 with RS2321: 4X4 HDMI Matrix full supported HD, 3D
2: hdmi matrix 4x4 with 1080p resolution
3: facotry
4X4 hdmi matrix splitter switcher --Top Desk Housing
FEATURES
1 One HDMI input signal split to four HDMI sink devices
2 Support Full HD, Full 3D
3 Support 1080P resolution
4 Support CEC
5 Support deep color 30bit, 36bit, 48bit
6 Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7 Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
/DSD/HD(HBR)
8 Support signal retiming
9 Support input up to 15metres AWG26 HDMI standard cable length,
output up to 25metres AWG26 cable length
10 No loss of quality
SPECIFICATION
| HDMI version | HDMI 1.3b |
| HDCP version | HDCP1.2 |
| HDMI resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480 |
| Support video color format | 24bit/deep color 30bit,36bit |
| Support audio format | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 225MHz |
| Max baud rate | 6.75Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| Input cable distance. | ≤15m AWG26 HDMI 1.3 standard cable |
| Output cable distance | .≤25m AWG26 HDMI 1.3 standard cable |
| Max working current | 2.6A |
| Power adapter format..Input: | AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55°C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 380x140x60(mm)(RX/TX) |
| Weight | 1900g |
4X4 hdmi matrix splitter switcher --Top Desk Housing
