Specifications
Support 3DTX uses the DC5V/3A power adaptor.
Four RX: each one uses 5V/1A power adaptor
Our series of HDMI Converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

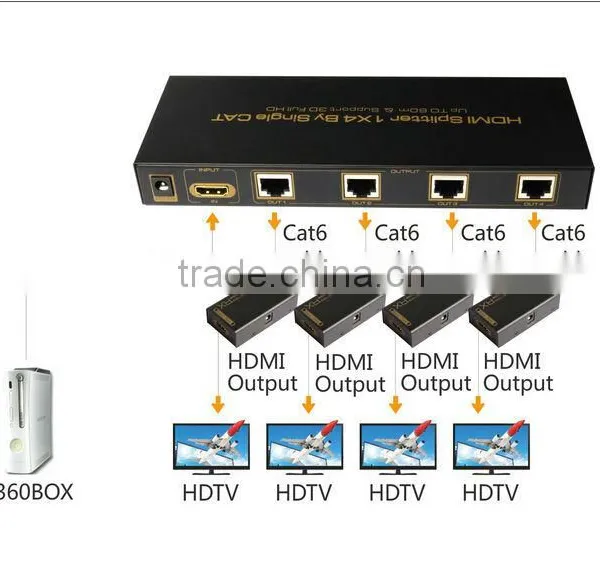

This extender can extend and connect one HD Source to four HD Displays or Projectors by
four pieces of cat6/7 at the same time. The extending distance can reach 60m. This extender meets the needs of multi-route and low-cost HD Signal long distance transmission well.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
l One HDMI input distribute and extend to found Display by four cat6/7 cable. The extend distance can be up to 60m.
l Support 3D
l Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l LED Status Light:the related led light will go bright.
l The extend distance can be up to 60m.
l Support signal retiming
l No loss of quality
l Installs in minutes
l TX uses the DC5V/3A power adaptor.
l Four RX: each one uses 5V/1A power adaptor
The accessories with the machines lists as picture:
1,5V/3A Power Adapter 1 pcs
2,5V/1A Power Adapter 4pcs
3,one pc of Manual 1 pcs
SPECIFICATIONS: HDEX004M1
Length of CAT-6 cable between Rx and TX….... up to 60m
HDMI Input…..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output….24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output...LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………225MHz
Max baud rate……………….6.75Gbps
Input Video signal …………. 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)
Input HDMI cable distance..…..≤15m AWG26 HDMI standard cable
Output HDMI cable distance…………………...≤20m AWG26 HDMI standard cable
Max working current(TX)…………………………………………………………………...2000mA
Max working current(RX)……………………………………………… ...600mA
Power adapter format(TX)…………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Power adapter format(RX)……………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range…….. (0 to +40°C)
Operating Humidity range………………………… .5 to 90%RH (No Condensation)
Dimension (TX)…………………………… ..205x74x26(mm)
Dimension (RX)…………………………… (82X44X22) (mm) X4pcs
Weight…. 750g
