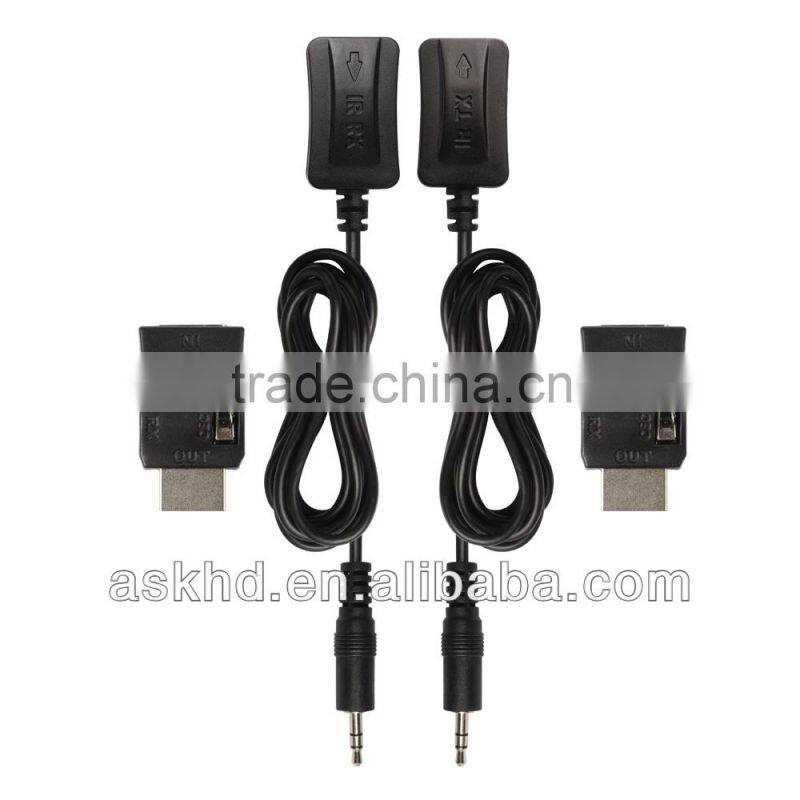

Inject IR Over HDMI Cable , IR Extender

FOB Price

Negotiable / Set

200 Sets(Min. Order)

Port shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ASK		Model Number	HDEX003M1
Place of Origin	Guangdong, China

Product Description

Specifications

MAX operation current:15ma
Weight:35g Housing: plastic box
Easy install & operation
Power free

INTRODUCTION

The IR extender can do IR signal extend by the CEC channel of the HDMI port. You can do control to the IR Signal source device by using the received IR (infrared) signal by the IR Receiver.

Features & Specification

l It can do control to the IR Signal source device by using the received IR (infrared) signal by the IR Receiver.

l IR extend distance is up to 25m ( it depends on the quality and length of the HDMI cable)

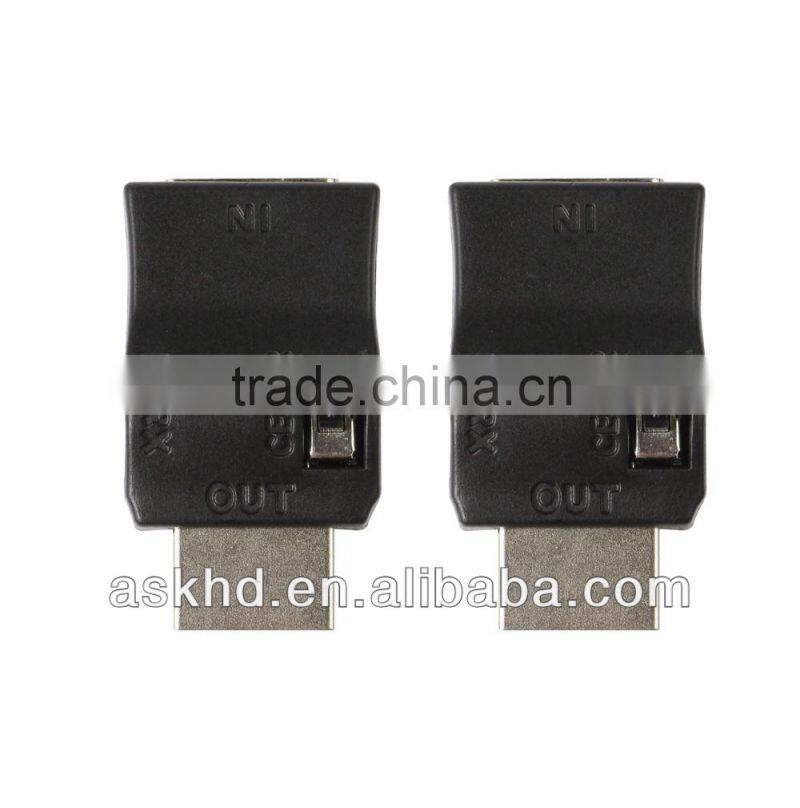

l Control: To choose the CEC/IR extends function by manual (it needs to put the two IR Adaptor switch to IR status.

l MAX operation current:15ma

l Weight:35g Housing: plastic box

l Easy install & operation

l Power free

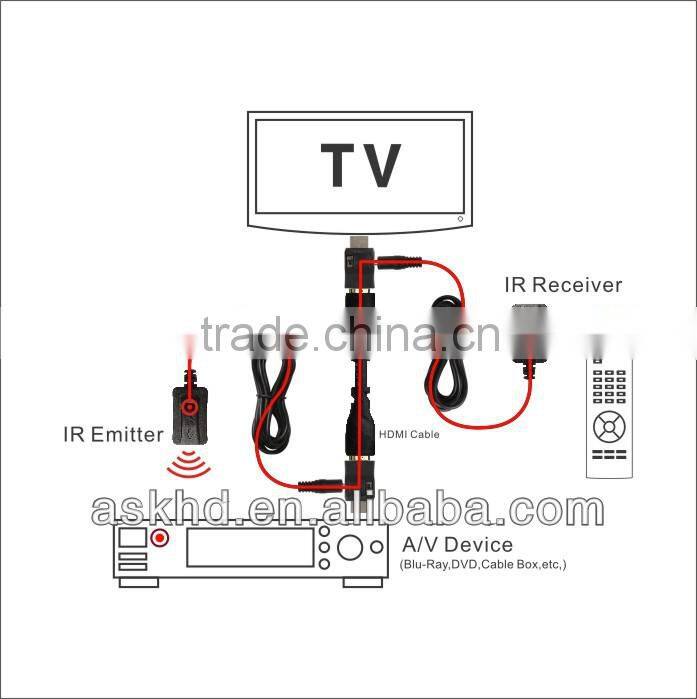

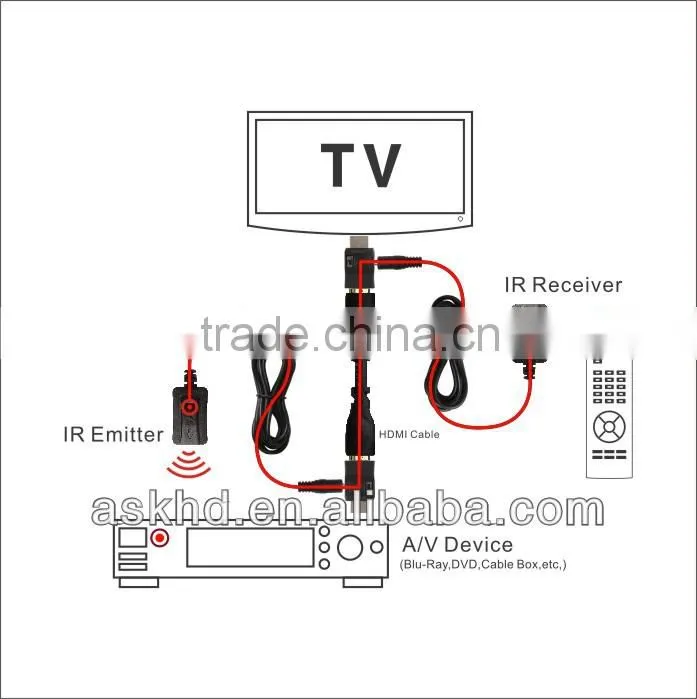

Operating and Connecting:

1,To use one HDMI Cable to connect the two IR Adptor HDMI input female port.

2,To connect one of the two IR adaptor Output port with the HD Source, the other IR adaptor Output port to connect with the Display.

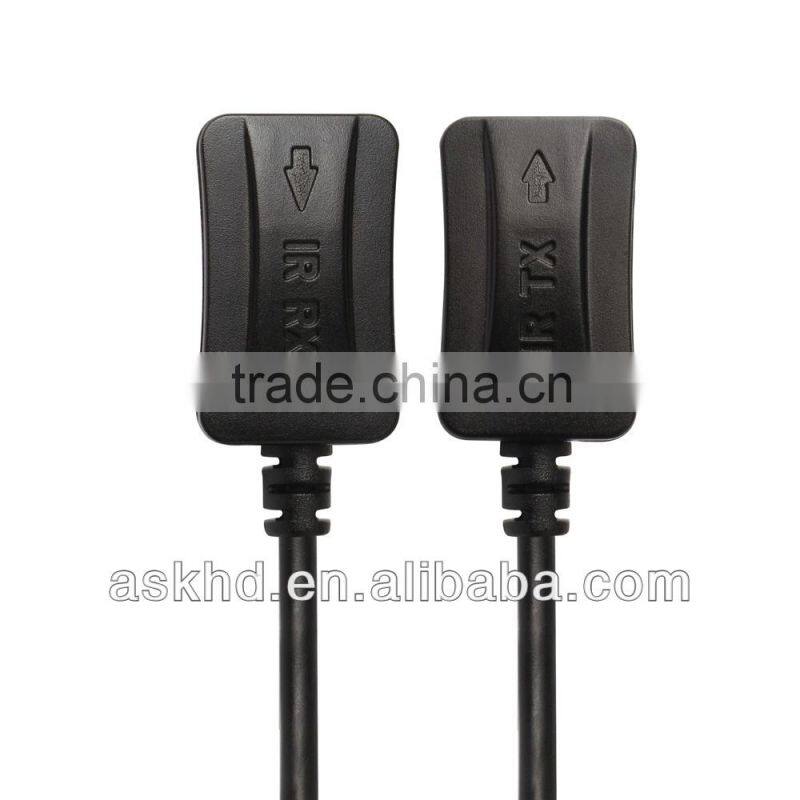

3, To connect one IR adaptor with the IR-RX port.

4, To connect the other IR adaptor with the IR-TX port.

Note: Pls use the standard HDMI Cable.!!!
