Help CenterShenzhen Ask Technology All to HDMI Converter for Hotel
Related Products
Specifications
All input port : Ethernet interface,Telephone interfaceCVBS port,L/R,YPbPr/YCbCr port,VGA input,AUX input
HDMI in,HDMI out

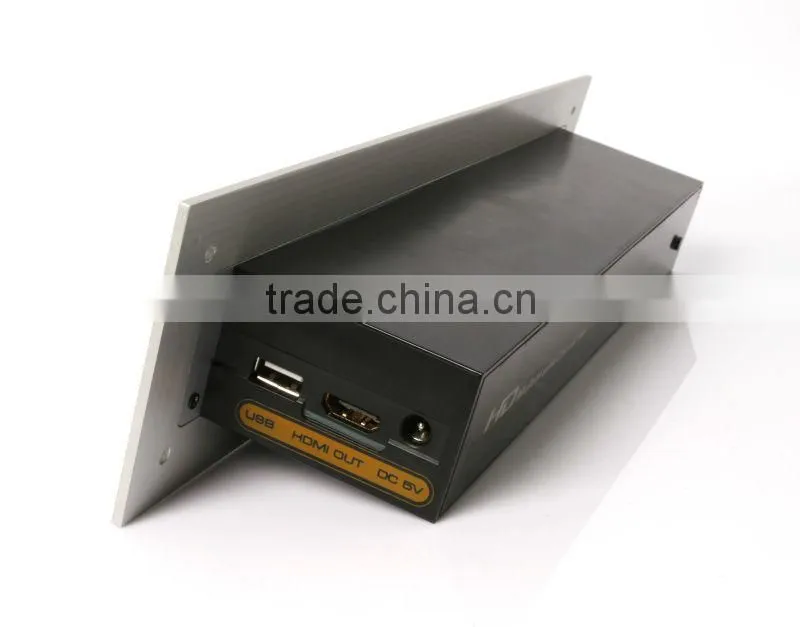

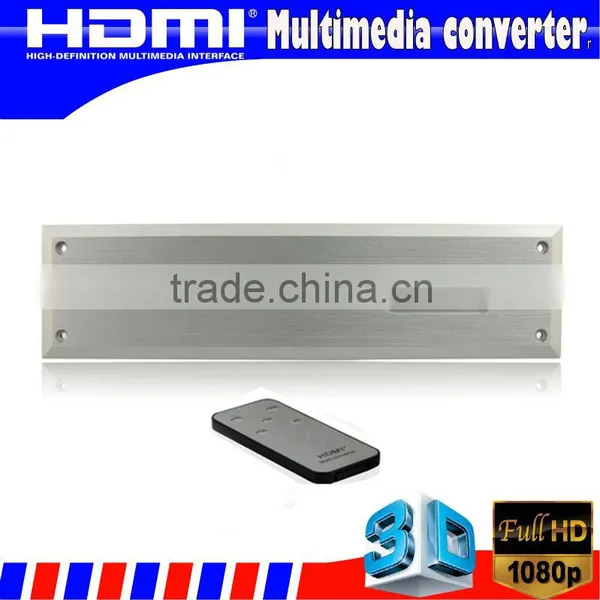

All to HDMI Converter
FEATURES:
*5-way input audio and video signal input, converted to one HDMI output
* Support HDMI output up to 1080P/60Hz, the HDMI signal input support 3D HD source film (24p)
*Build-in signal amplifier scales the composite video, YPbPr, VGA signal input to HDMI 1080p output
*The HDMI signal input is compliant with CEC, HDCP and 30bit, 36bit,48bit deep color
*PAL/NTSC automatic video format
* No loss of quality. Support input up to 15metres AWG26 HDMI standard cable length, output up to
20metres AWG26 cable length
*Easily switch between devices manually or with the IR remote control (Internal / external IR)
* Plug and play (Except for MHL)
*The MHL input support the HD Signal transmission from the smart phone to the HD TV and also can
do power charge to the MHL device and support RCP function.
*The HDMI input port can support MHL/HDMI dual mode input.
* Built-in Ethernet / Telephone /USB2.0 pass-through interface, support the USB port 1A power charging function.
* One Switch Key at the front panel and the other Switch key at the rear panel, the two key have the same function that * * can do switch at the input video signal sources.
* DC5V/2A power supply
SPECIFICATIONS: HDCN0009B1
| HDMI input resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| VGA input resolution | up to 1920 x 1080 @60Hz |
| HDMI output resolution | up to 1080P/60Hz |
| HDMI video color format | 24bit/deep color 30bit/36bit/48bit |
| HDMI audio format | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| MHL pixel clock rate (24-bit mode) | 75MHz(8bit 1080i/720P 60Hz) |
| MHL pixel clock rate (Packed Pixel mode) | 150MHz(8bit 1080i 60Hz YCC422) |
| Max bandwidth | 225MHz |
| Max baudrate | 6.75Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| HDMI Input cable distance | ≤15m AWG26 HDMI standard cable |
| Output cable distance | ≤20m AWG26 HDMI standard cable |
| Max working current | 1.4A |
| Power adapter format Input: | AC 100V~240V 50HZ/60HZ; DC5V/2A |
| Operating Temperature range | -15 to +55°C |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Product size (L x W x H) | 266x65x40 (mm) |
| Recommend wall opening size | 300x41x65(mm) |
| Recommend Decorative panel size | 320x80x5.5(mm) |
| Weight | 320g |
