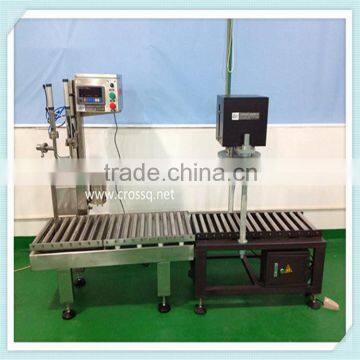

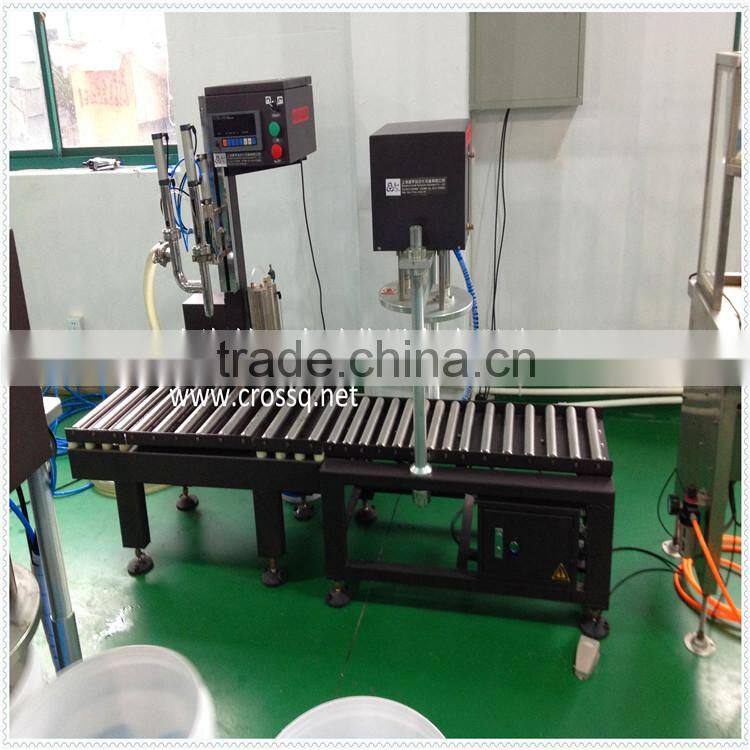

Weigh Filler and Capper

Weigh Filler and Capper photo-1
Weigh Filler and Capper photo-2
Weigh Filler and Capper photo-3
Weigh Filler and Capper photo-4
Weigh Filler and Capper photo-5
Weigh Filler and Capper photo-6
US$ 1.00 - 1.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Other, electric-pneumatic
Voltage 220V/50HZ
Place of Origin Shanghai, China
Brand Name CROSSQ
Model Number FM-SW&FC-P
Weight 95kg+100kg
Dimension(L*W*H) 2000*650*1450mm
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

FM-SW series Filling Machines apply to the production of medium bucket filling of various kinds of viscous,non-viscous,corrosive and non-corrosive liquid.such as:water,juice,cola,beer,wine,milk,yogurt,shampoo,chemical liquid,cosmetics,oil,etc.

TECHNICAL PARAMETER
Name

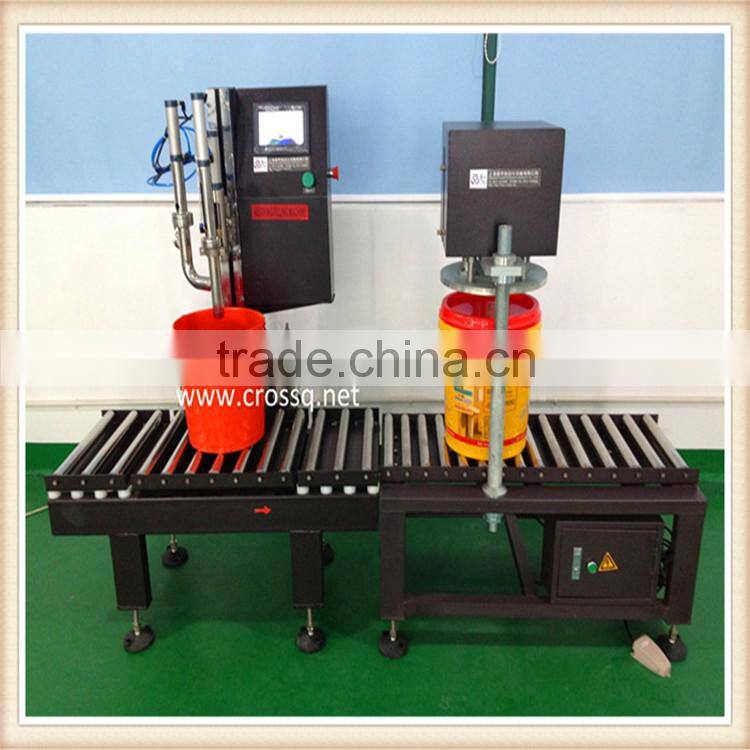

Single Nozzle Filler + Plastic Capper

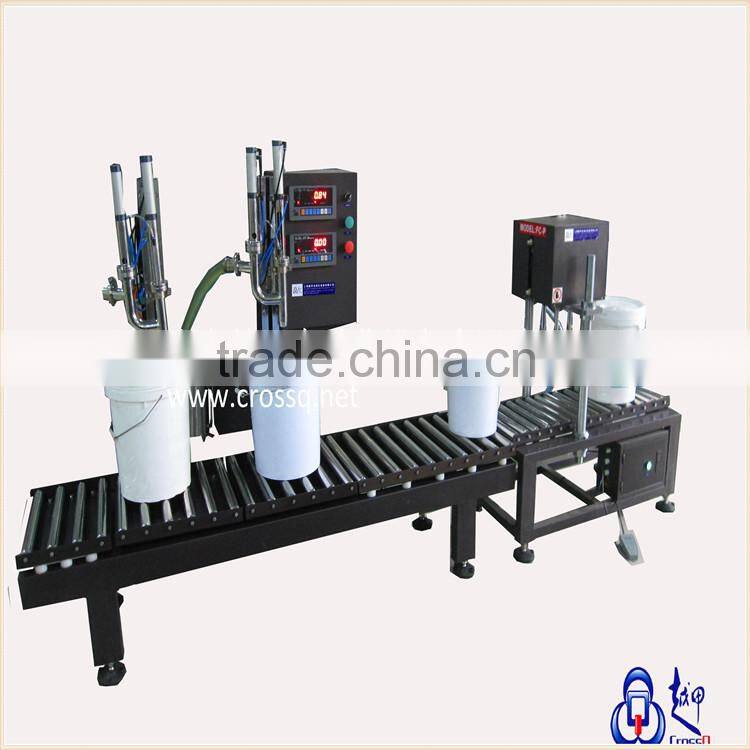

Double Nozzles Filler + Plastic Capper
Model
FM-SW/20L + FC-P/20L
FM-SWD/20L + FC-P/20L
Control System
Electronic-Pneumatic
Filling Range
5-30kg
5-30kg
Capping Head Size
¢340mm (Optional)
Filling Speed
120-150pails/hour
240-300pails/hour
Filling Accuracy
±0.2%
In-feed Pressure
0.3~0.35MPa
Working Pressure
0.4~0.6MPa
Air Supply
0.2m³/min
Powder
AC220V 50HZ
Dimension
2000x650x1450
2500x650x1450
Weight
95 kg + 100kg
160 kg + 100kg

Main Features

1. Filling Method: Filling from top.
2. Control Mode: Manual setting filling way, micro switch control.
3. Conveying Mode: Roller Type Conveying without engine.
4. Own digital displaying filling quantity function, can finish multi-kinds filling quantity setting.
5. Automatic peeled, based on net weight filling function.
6. Own vacuum withdrawing function to avoid anti-drip.
7. With manual & automatic micro switch control system function.
8. Dual speed control function to prevent splashing.
9. With emergent treatment to avoid misuse and protect power-off.
10. With SUS316 material of inside pipeline, which is liquid contact part.

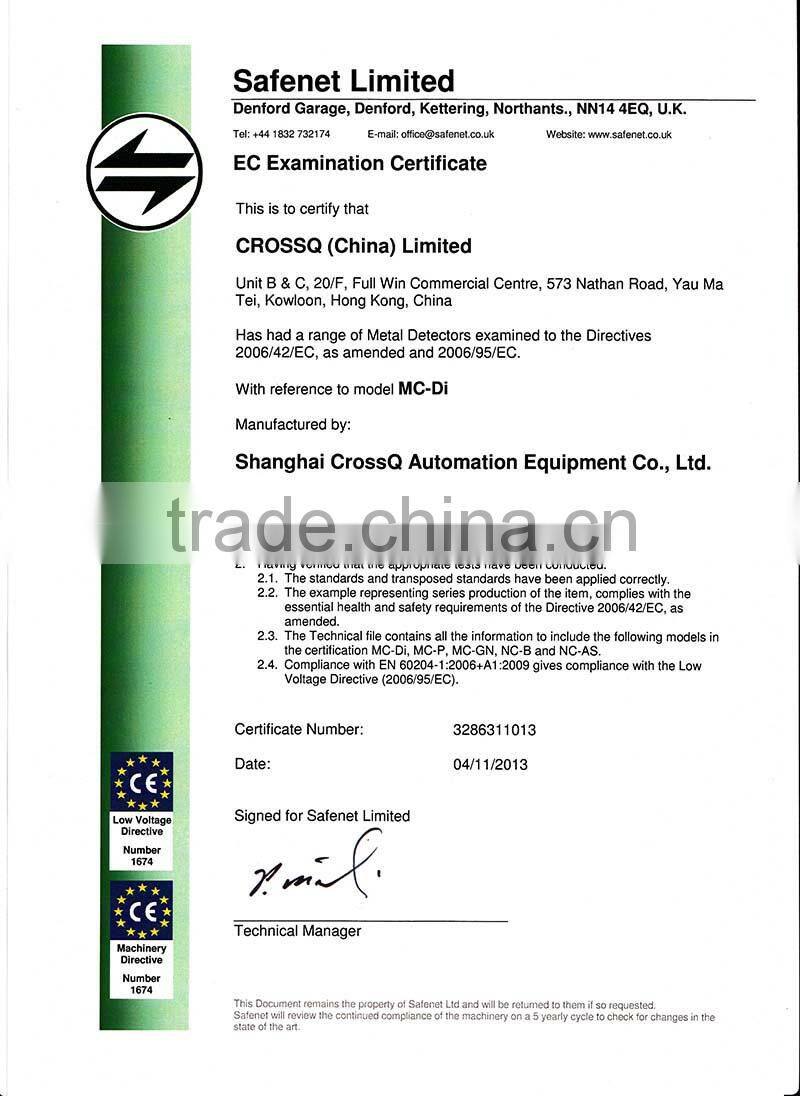

Certifications
Detailed Images

FM-SW/20L-B

Name: filling machine

Brand:  CROSSQ

Original: China

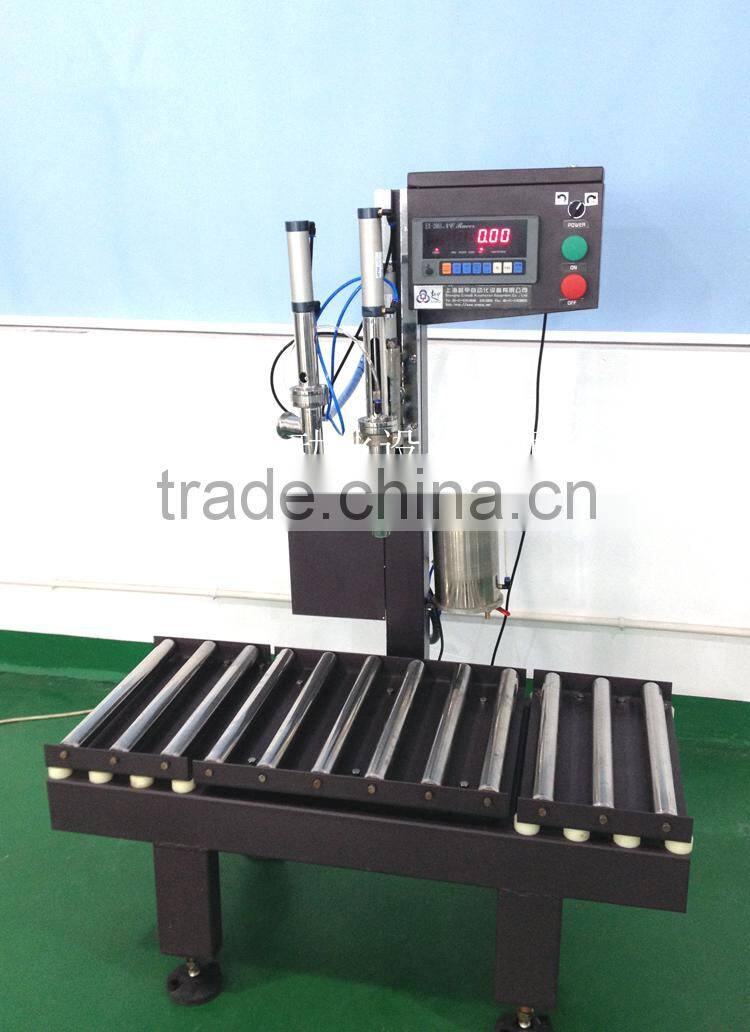

FM-SW/20L

Name: filling machine
Brand: CROSSQ
Original: China

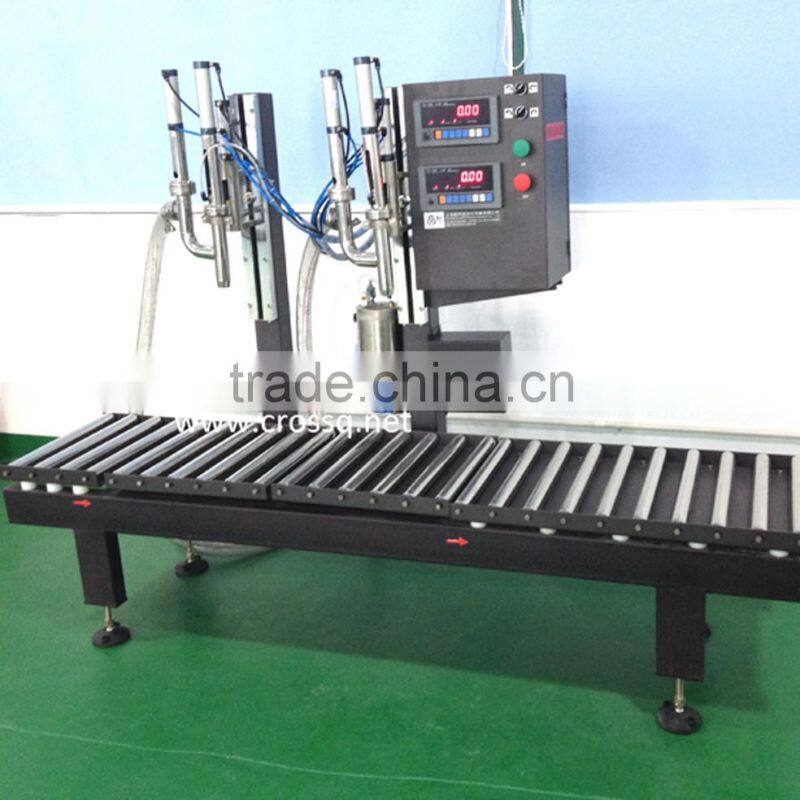

FM-SWD/20L

Name:  filling machine
Brand: CROSSQ
Original: China

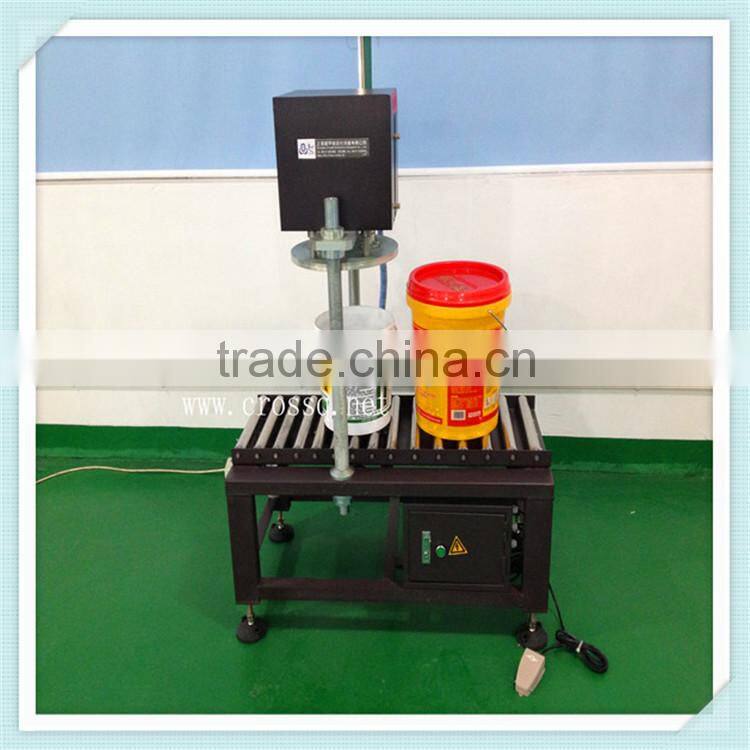

FC-P/20L

Name: CAPPER
Brand: CROSSQ
Original:CHINA

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Customized support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

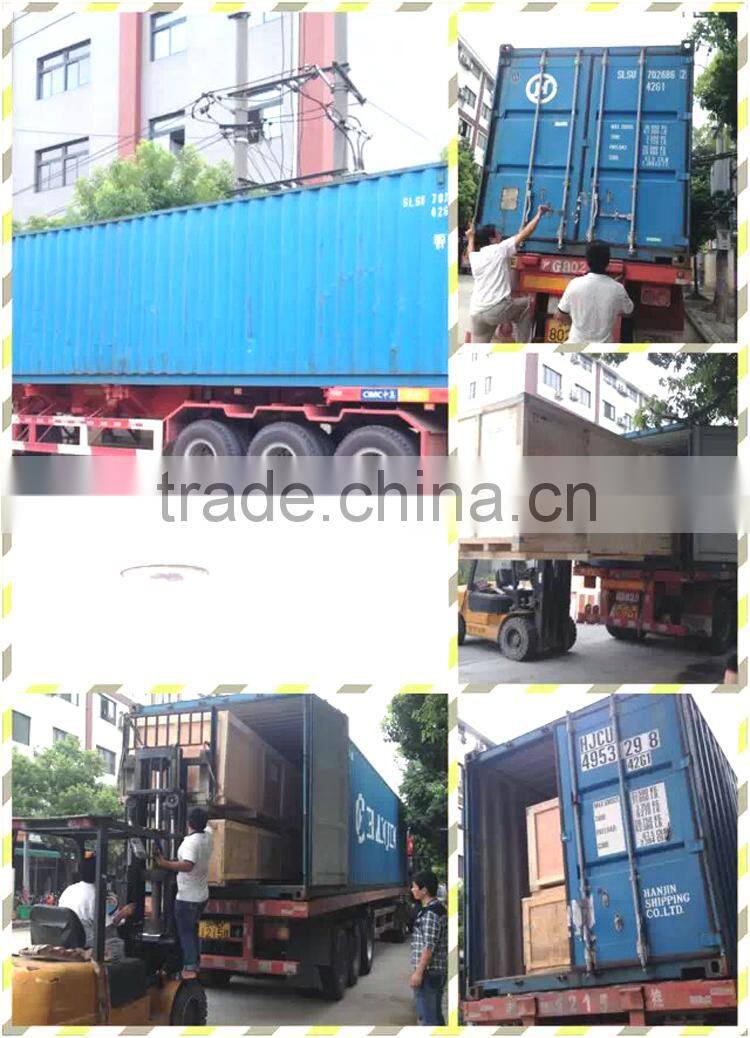

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
