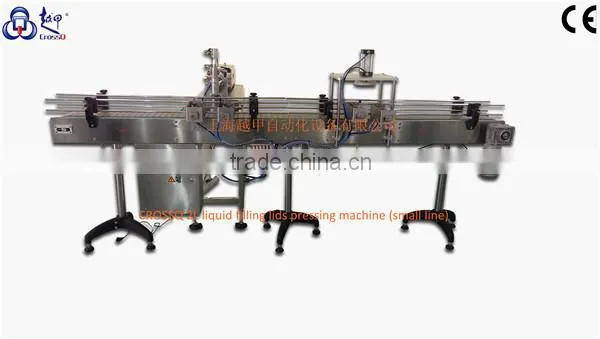

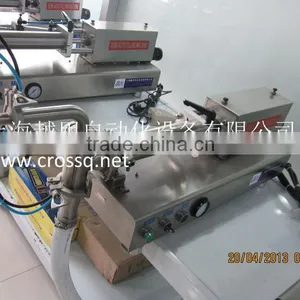

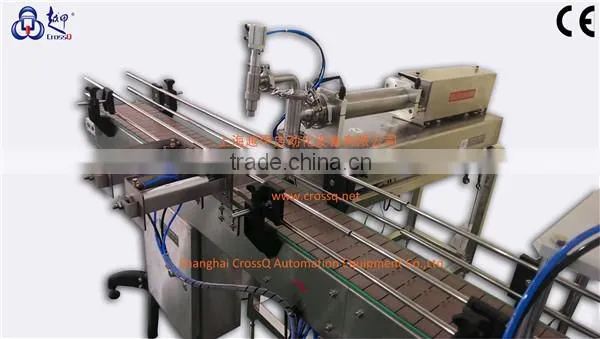

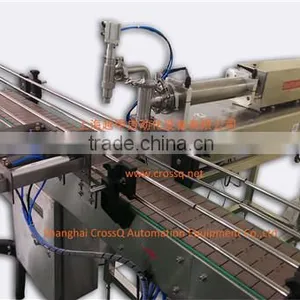

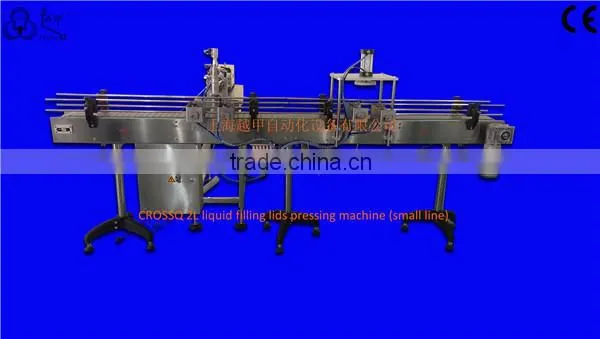

Help CenterLotion Piston Liquid Filling Machine
Related Products
-
Gluewater Plastic Barrel Capping MachineNegotiableMOQ: 1 Box -
Plastic Lids Pressing MachineNegotiableMOQ: 1 Box
-
Small Size Packing Online Weight Sorting Machine WS-N158 (5-600g)NegotiableMOQ: 1 Box
-
Automatic Coatings Weighing Filling Line FM-ASW/20L+FC-AP/20LNegotiableMOQ: 1 Box
-
Automatic Syrup Weighing Filling Line FM-ASW/20L+FC-AP/20LNegotiableMOQ: 1 Box
FEATURE
1. This machine is belonged to semi-automatic piston platform type filling machine for liquid.
2. Filling quantity and speed can be adjusted..
3. Easy to operate, with high accuracy, simple to maintain and clean.
4. Pneumatic parts: normally adopt Airtac brand, also can choose FESTO,
5. Can set manual or automatic mode.
6. With good structure, easy to removal & installation.
7. Material contact part with SUS316, meet GMP operational standard.
8. With excellent design, with vertical and small structure to save installation space.
9. Be suitable for various products with small weight.
10. Seal parts with silicone rubber which with high anti-abrasion, anti-heat, anti-acid,
anti-corrosion function, with fluorine rubber which is high anti-abrasion, anti-resistance, anti-acid, and anti-corrosive.
APPLICATION
FM-SLT CrossQ Platform Liquid Filling Machine mainly used for filling liquid, such as Lotion, care solution, oral care, hair care, hand sanitizer, lotions, disinfectant, liquid foundation, antifreeze, shampoo, eye wash solution, nutrient solution, injection, pesticides, pharmaceuticals, wash clean, shower gel , edible oils, lubricants and special industrial liquid etc.
TECHNICAL PARAMETER
Model |
Filling Range |
Accuracy |
Filling Speed (pcs/min) |
Air Supply ( L/min ) |
Power Supply |
Dimension ( mm ) |
Weight
|
FM-SLT/100 |
10-100ml |
±0.5%
|
10-40 |
75 |
AC220V 50HZ |
755x260x440 |
25kg |
FM-SLT /250 |
30-250ml |
10-40 |
100 |
750x260x440 |
27kg |
||
FM-SLT /500 |
100-500ml |
10-30 |
210 |
865x260x440 |
30kg |
||
FM-SLT /1000 |
200-1000ml |
10-25 |
315 |
1100x260x440 |
32kg |
||
FM-SLT /5000 |
1000-5000ml |
5-15 |
315 |
1790x260x440 |
55kg |
Above is standard data, different products and viscosity may effect above data.
