Semi-auto Weigh Filler Single/double Nozzle 20L

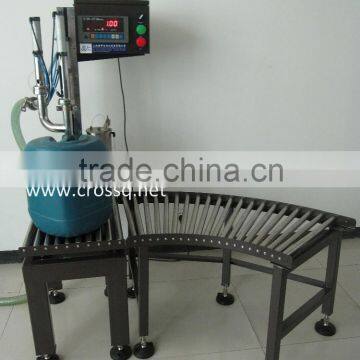

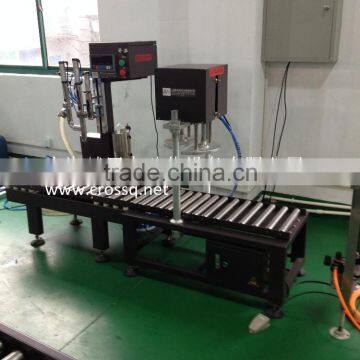

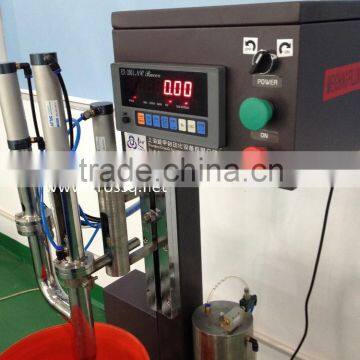

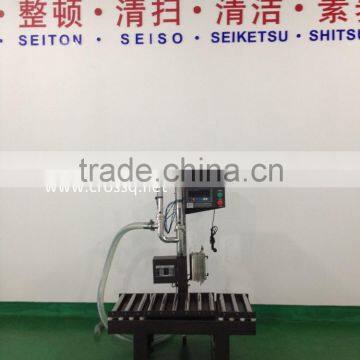

Semi-auto Weigh Filler Single/double Nozzle 20L photo-1
Semi-auto Weigh Filler Single/double Nozzle 20L photo-2
Semi-auto Weigh Filler Single/double Nozzle 20L photo-3
Semi-auto Weigh Filler Single/double Nozzle 20L photo-4
Semi-auto Weigh Filler Single/double Nozzle 20L photo-5
Semi-auto Weigh Filler Single/double Nozzle 20L photo-6
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Textiles, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles
Packaging Type:
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Textiles, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles
Packaging Type Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Other, Electric + Pneumatic
Voltage AC220V
Place of Origin Shanghai, China
Brand Name CrossQ
Model Number FM-SW/20L
Dimension(L*W*H) 1000x650x1450 ,1500x650x1450
Weight 95kg/160kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Weighing Filler

Weighing Filling Machine FM-SW

     special for 5-20kg barrel weighing filling

FEATURE

1. Filling Method: Filling from top.

2. Control Mode: Manual setting filling way, micro switch control.

3. Conveying Mode: Roller Type Conveying without engine.

4. Own digital displaying filling quantity function, can finish multi-kinds filling quantity

 setting.

5. Automatic peeled, based on net weight filling function.

6. Own vacuum withdrawing function to avoid anti-drip.

7. With manual & automatic micro switch control system function.

8. Dual speed control function to prevent splashing.

9. With emergent treatment to avoid misuse and protect power-off.

10. With SUS316 material of inside pipeline, which is liquid contact part.



APPLICATION

   Weighing filling machine is made based on international technique, with filling and electronic weigh, electronic displaying functions. It is suitable for medium bucket filling of various kinds of viscous, non-viscous, corrosive and non-corrosive liquid.

TECHNICAL PARAMETER

Model

FM-SW/20L

(Single Nozzle)

FM-SW/20L-B

(Single Nozzle with LCD Touch Screen)

FM-SWD/20L

(Double Nozzles)

Filling Range

5-30kg

5-30kg

Filling Speed

120-150pails/hour

240-300pails/hour

Filling Accuracy

                        ±0.2%

In-feed Pressure

                     0.3~0.35MPa

Working Pressure

                      0.4~0.6MPa

Air Supply

                         0.2/min

Power Supply

                        AC220V 50HZ

Dimension(mm)

1000x650x1450

1500x650x1450

Weight

95 kg

   160 kg

Above is standard data, different products and viscosity may effect above data.W

After-sale Service

After-sale Service

one year warranty, and keep all life maintenance

Why our company will be your correct choice in China?

1. Small profits and quick returns is our business policy, so the

filling machine is worth every cent .

2. We focus on advanced supply chain management, which can ensure the

raw materials are with good quality and competitive price.

3. OEM is accepted
