High Quality Needle Detector Machine NC-B
- 50 Set / Sets per Month
- Shanghai Port China
- T/T Credit Card
Product Details
Place of Origin: | Shanghai, China | Brand Name: | CrossQ | Model Number: | Auto-Conveying Type Needle Detector NC-B |
Machine Type: | Other, Needle Detector | Product: | Other, detecting needles in garment or textile products | Material Capabilities: | Nonwoven |
Product Description

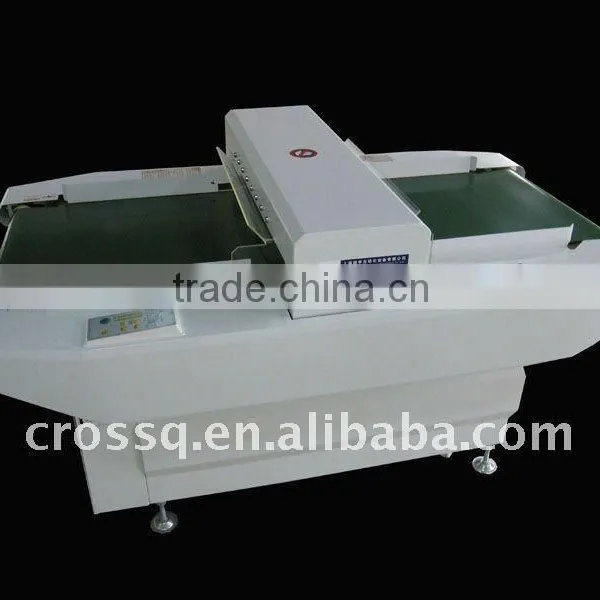

Auto-Conveying Type Needle Detector NC-B
Multi-Function Interface Panel + 2pcs infrared sensors on outfeed side of probe
1) With Time showing function on panel.
2) Easy to change local time for different Countries required.
3) With counting function on panel.
4) Easy to clear counting data as requirement.
FEATURE
1. Dual-Strong & independent probe, excellent anti-disturbance performance.
2. Based on micro-LCD bar displayed control panel.
3. Hi accuracy detection locating technology, LED indication.
4. Level setup indication and real-time sensitivity display.
5. With products counting record function.
6. Optional conveying mode after alarm.
7. Optional automatic restart.
8. With newest data printing system.(option)
9. Reliability mechanical frame design, Hi stable during detection.
10. Designed for universal AC power supply, switch power supply
Needle Detector NC-B 's Detection Head
When detecting metals, with following indication,
1) Alarming.
2) LED lamp show metals location site on detection head.
3) LED lamp show on interface panel.
4) Belt stopping and auto-returning.
PURPOSE
1. Detecting broken needles and magnetic metal impurities in sewing products, such as: garments,
fabric, knit underwear, shoes, hats, toys, crafts, down products, bedding products, carpets etc.
2. Detecting magnetic metal impurities in foods, pharmaceutical products.
3. Detecting magnetic metal impurities in chemical raw materials, rubber, paper etc.
4. Detecting magnetic metal impurities in pure Copper, Aluminum, Stainless Steel.
SPECIFICATIONS
1. Type NC-B(100)
2. Detection Method Magnetic induction
3. Detection adjustment Max.100 steps/channel
4. Detection sensitivity Fe¢0.8mm
5.Detection width 600mm
6. Alarm method Buzzer,Lamp
7. Belt speed 32m/min(50HZ),40m/min(60HZ)
8. Power source AC200-240V 50-60HZ
9. Rated output Appr140W
10. Weight Appr220Kg
11.Dimension 1650mm(L)*1050mm(W)*900mm(H)
SERIES
Detection Height | Detection Sensitivity | Remark |
100mm | ¢0.8mm steel | standard |
120mm | ¢1.0mm steel | option |
150mm | ¢1.2mm steel | option |
200mm | ¢1.5mm steel | option |
250mm | ¢2.0mm steel | option |
Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
Each Needle Detector NC-B with 1pc fabric cover ( color: black)
If not using machine, please cover whole machine to keep off dust.
