Needle Detector NC-W3000 (Long Type)

Needle Detector NC-W3000 (Long Type) thumbnail-1
Needle Detector NC-W3000 (Long Type) thumbnail-2
Needle Detector NC-W3000 (Long Type) thumbnail-3
Needle Detector NC-W3000 (Long Type) thumbnail-4
Needle Detector NC-W3000 (Long Type) thumbnail-5
Needle Detector NC-W3000 (Long Type) thumbnail-6
Needle Detector NC-W3000 (Long Type) photo-1
Needle Detector NC-W3000 (Long Type) photo-2
Needle Detector NC-W3000 (Long Type) photo-3
Needle Detector NC-W3000 (Long Type) photo-4
Needle Detector NC-W3000 (Long Type) photo-5
Needle Detector NC-W3000 (Long Type) photo-6
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CrossQ
Model Number:
Wide Type Needle Detector NC-W2500
Contact Supplier Request Quote Chat Now
Shanghai CrossQ Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name CrossQ
Model Number Wide Type Needle Detector NC-W2500

Wide Type Needle Detector NC-W3000



FEATURES

1. High quality magnetic structure, stainless steel shell, good appearance with high sensitivity, and

be durable.

2. Separate structure of detection and control part, with high anti-disturbance performance, and

install easily.

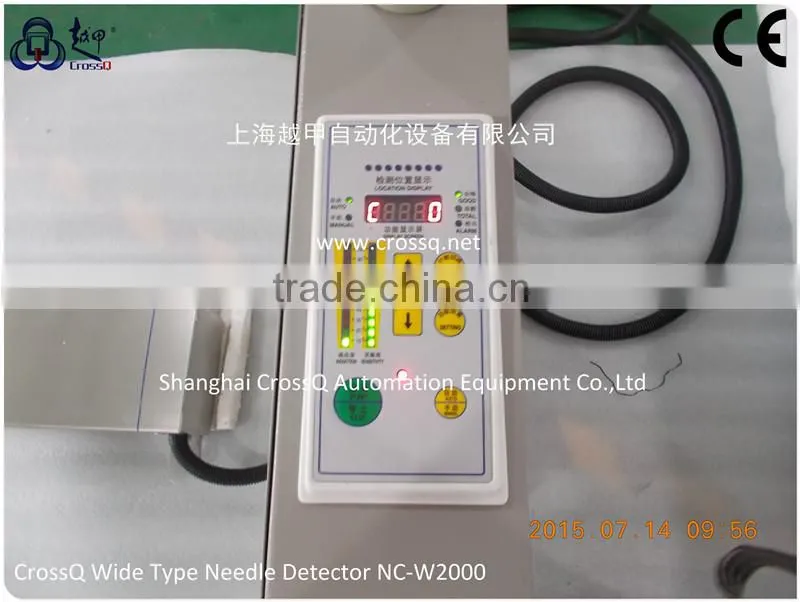

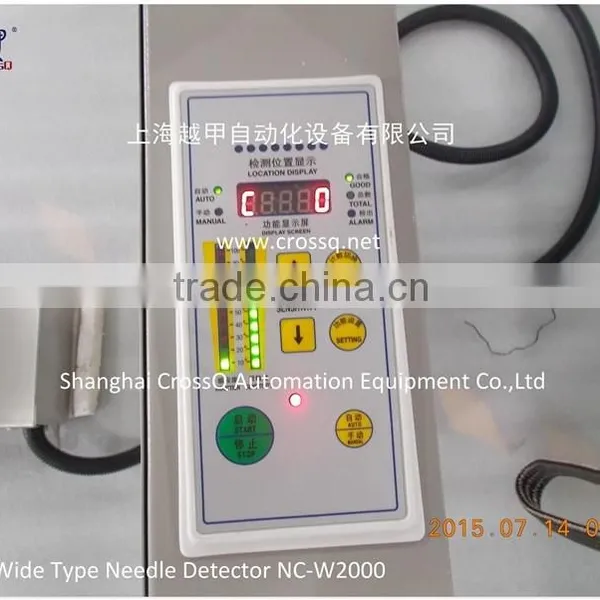

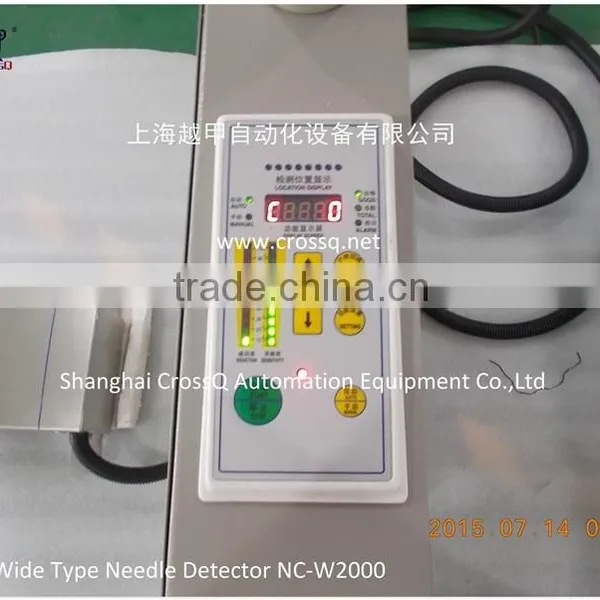

3. Touch-sensitive buttons control 8 steps display. Hi stable during detection.

4. 10 LED signal display, with warning light device.

5. New SMD circuit technology to control external appliances.
6. Designed for universal AC power supply, switch power supply



PURPOSE

1. Detecting broken needles and magnetic metal impurities in sewing products with wide width,

such as: down products, bedding products, fabrics (woven), carpets etc.
2. Detecting magnetic metal impurities in foods, pharmaceutical products.

3. Detecting magnetic metal impurities in chemical raw materials, rubber, paper etc.
4. Detecting magnetic metal impurities in pure Copper, Aluminum, Stainless Steel.

5. Can install on fabric inspection machine, or use support to fix, install on fabrics production lines to finish detection.



SPECIFICATIONS

1.Type NC-W3000
2.Detection Method Magnetic induction
3. Detection sensitivity Max.80mm height by steel needle (¢0.6*L33mm)

Max.110mm height by steel needle (¢0.7*L25mm)
4.Detection adjustment 1-8steps
5.Detection width 100mm

6.Detection length 3020mm
7.Alarm method Buzzer,LED Lamp, warning device
8.Power source AC220±10%, 50-60HZ
9. Rated output Appr25W
10.Weight Detection Part 33kg; Control Box 2.65kg

11.Dimension

Detection Part 3200mm(L)*100mm(W)*45mm(H)

Control Box 280mm(L)*265mm(W)*105mm(H)

Needle Detector NC-W3000 (Long Type)Needle Detector NC-W3000 (Long Type)



Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
