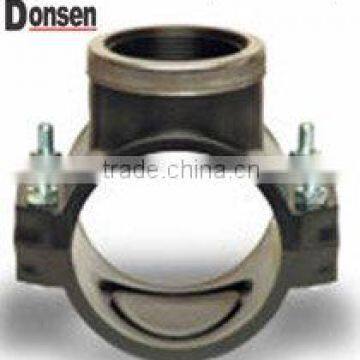

DOUBLE CLAMP SADDLE WITH REINFORCING RING
- 3 Forty-Foot Container per Month
- NINGBO
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Donsen | |
| Model Number | COD2024 |
Product Description
Specifications
1) KOREA HB240P raw material 8760 hours testing.2) Passed ISO9001:2000 and ISO14001:2004.
3) accordance with German Standa
Materials
Part | Material | Colour |
Body(A) | Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. | black |
Nut(B) | Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) | blue(RAL5005) |
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance white and hardness | white |
Blocking bush(D) | Polypropylene | black |
O Ring gasket(E) | Special elastomeric acrylonitrile rubber(NBR) for alimentary use | black |
Reinforcing ring | AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1-1/4”to 4” |
|
Sanitary Prescriptions:
The Compression fittings line is suitable for the conveyance of poyable water and alimentary fluids according to the most important national and international standards.
Working Pressures:
The Compression fittings allows the maximum working pressure (PN~PFA) of 16 bar(UNI 9562) at the temperature of 20°C.
Reference Standards:
Dimensions:UNI 9561
Working Pressure:UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Tubi in Polietilene(PE)/Polyethylene(PE)Pipes:
UNI 7990,DIN 8074,UNI EN 12201
Threads:UNI ISO 7/1,UNI EN 10226-1.ANSI ASME B1-20.1
Flanges:DIN 2501-1,UNI EN 1452-3,ISO 7005-2
