360 Degree Pir Sensor Switch for Led Light,motion Sensor Light Switch

Specifications

360 degree Pir sensor switch for led Light,motion sensor light switch

Type: AS0019

The PIR Sensor Switch detects human body and automatically switches the light ON and turning it OFF again after a time adjustable from 6 seconds to 12 minutes. PIR sensor switch combined intelligent control and energy saving.This switch is especially suitable for classrooms, schools, libraries, offices, hospitals, computer room, meeting rooms and other public places.

Features:

1.Main supply live line connect LIN, Null line connect between LOUT and N, without any accessories, internal without batteries

2.The switch suitable for various types of load (all kind of Incandescent lamp, energy saving lamps, fluorescent lamps, LED fluorescent lamp), load power≤1000W

3.Adopted sepecific integrated circuit, stable work, strong anti-interference capability

4.Reliable quality, switch life can reach more than 20 million times.

Technical Parameters:

1.Operating voltage: AC180V---250V

2.Induction Distance: 5-8m

3.Power Consumption: <0.02W
4.Delay time: 5s-300s±30%(optional)

5.Load power: 3-1000W

6.Detection angle:≤115°

7.Brightness sensitivity: 10Lux-500Lux±20%(optional)

8.Size: 95*35mm

Picture:

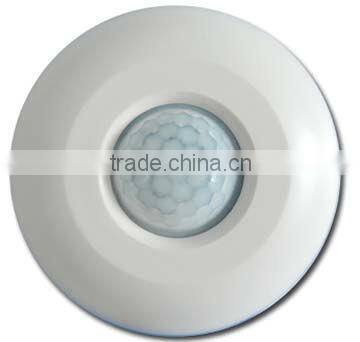

                 Model:  AS0013

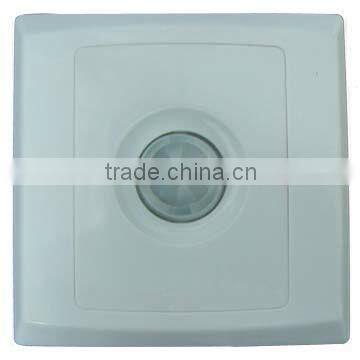

                     Model: AS0017

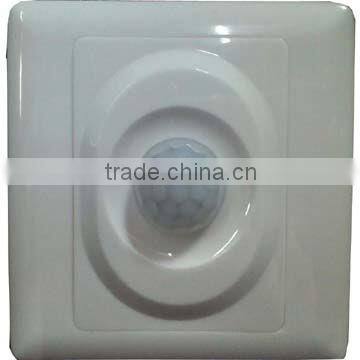

                       Model: AS0019
