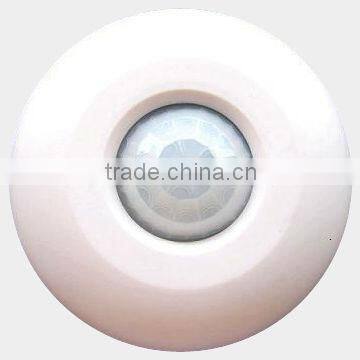

AS0019 human body Automatic light switch
- 10000 Piece / Pieces per Month
- SHENZHEN
- Credit Card
- Original GO SWITCH switch
- Original TOPWORX valve position feedback switch
- Original TOPWORX switch
- New arrival curved glass touch panel switch ZigBee aluminum frame Tuya smart home light wall switch
- Xiaomi Mijia Smart Light Sensor Zigbee 3.0 Intelligent Linkage Waterproof Work With Smart Multimode Gateway mi home
- Xiaomi Mijia Smart Switch Wall Switch Single & Dual Open BT Remoto Control Voice Control Smart Light for Mi Home APP
Product Details
Place of Origin: | Henan, China | Brand Name: | Senba | Model Number: | AS0019 |
Size: | 95*35MM | Max. Current: | see following | Max. Voltage: | AC180V-250V |
Mechanical Life: | 20 years |
Product Description
Pyroelectric Infrared motion sensor switch Automatic light switch
Type: AS0019
The PIR Sensor Switch detects human body and automatically switches the light ON and turning it OFF again after a time adjustable from 6 seconds to 12 minutes. PIR sensor switch combined intelligent control and energy saving.This switch is especially suitable for classrooms, schools, libraries, offices, hospitals, computer room, meeting rooms and other public places.
Features:
1.Main supply live line connect LIN, Null line connect between LOUT and N, without any accessories, internal without batteries
2.The switch suitable for various types of load (all kind of Incandescent lamp, energy saving lamps, fluorescent lamps, LED fluorescent lamp), load power≤1000W
3.Adopted sepecific integrated circuit, stable work, strong anti-interference capability
4.Reliable quality, switch life can reach more than 20 million times.
Technical Parameters:
1.Operating voltage: AC180V---250V
2.Induction Distance: 5-8m
3.Power Consumption: <0.02W
4.Delay time: 5s-300s±30%(optional)
5.Load power: 3-1000W
6.Detection angle:≤115°
7.Brightness sensitivity: 10Lux-500Lux±20%(optional)
8.Size: 95*35mm
MODLE:AS0012
MODLE: AS0017
MODLE: AS0019
