Specifications
pir Sensor Module1.Digital output, better working
2.Factory offer directly
3.Free samples for test
4.MOQ:100PCS
Smart pir Sensor Module with adjust time & distance freely
Model:SB612A
General Theory:
SB00612A is a pyroelectric sensor module which developed for human body detection.
An integrated PIR sensor combined with a fresnel lens which is mounted on a compact PCB,
and limited components to form the module.
Delay time, lux is adjustable. Customization is accepted.
Features and Electrical Specification
Compact size: 24*32 mm
Supply current: DC3.3V-15V
Current drain :< 1mA
Voltage Output: High/Low level signal:3V, Standby output is 0V
Input 3-24V, Output 3-24V
TTL output: TTL output can be directly connected to micro-controller or logic device
High sensitivity
Delay time: 2s-80mins(adjustable)(Turn right will reach max.)
Operation Temperature: -20-85°C
Infrared sensor: dual element, low noise, high sensitivity
Detecting length: 8-10m
Detecting Angle: 120°
Light sensor: included(adjustable)(Turn right will reach max.)

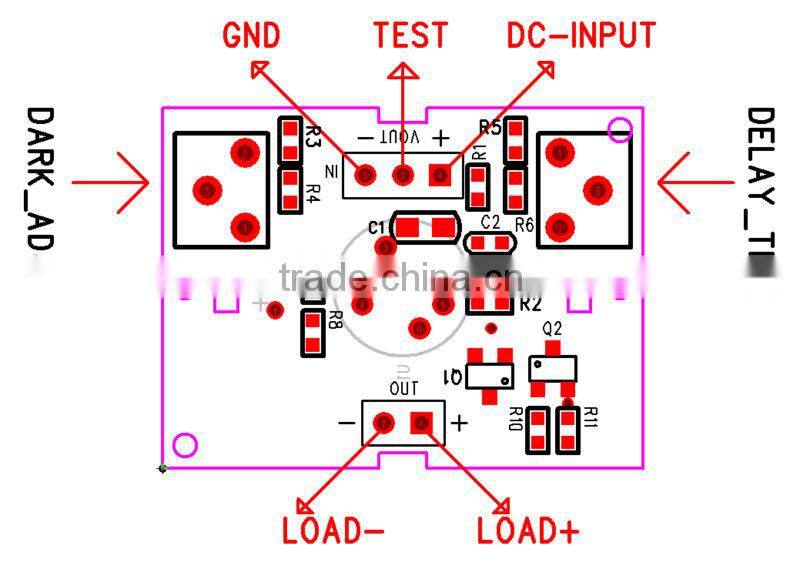

Electronic Circuit:

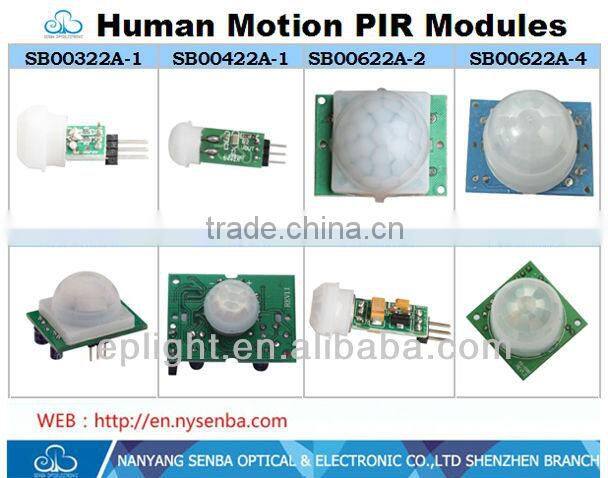

More models to choose:
Factory Show:
